Schneider Electric BMXCPS3500 Power Supply Module 100 to 240 Volt 36W

Product Description

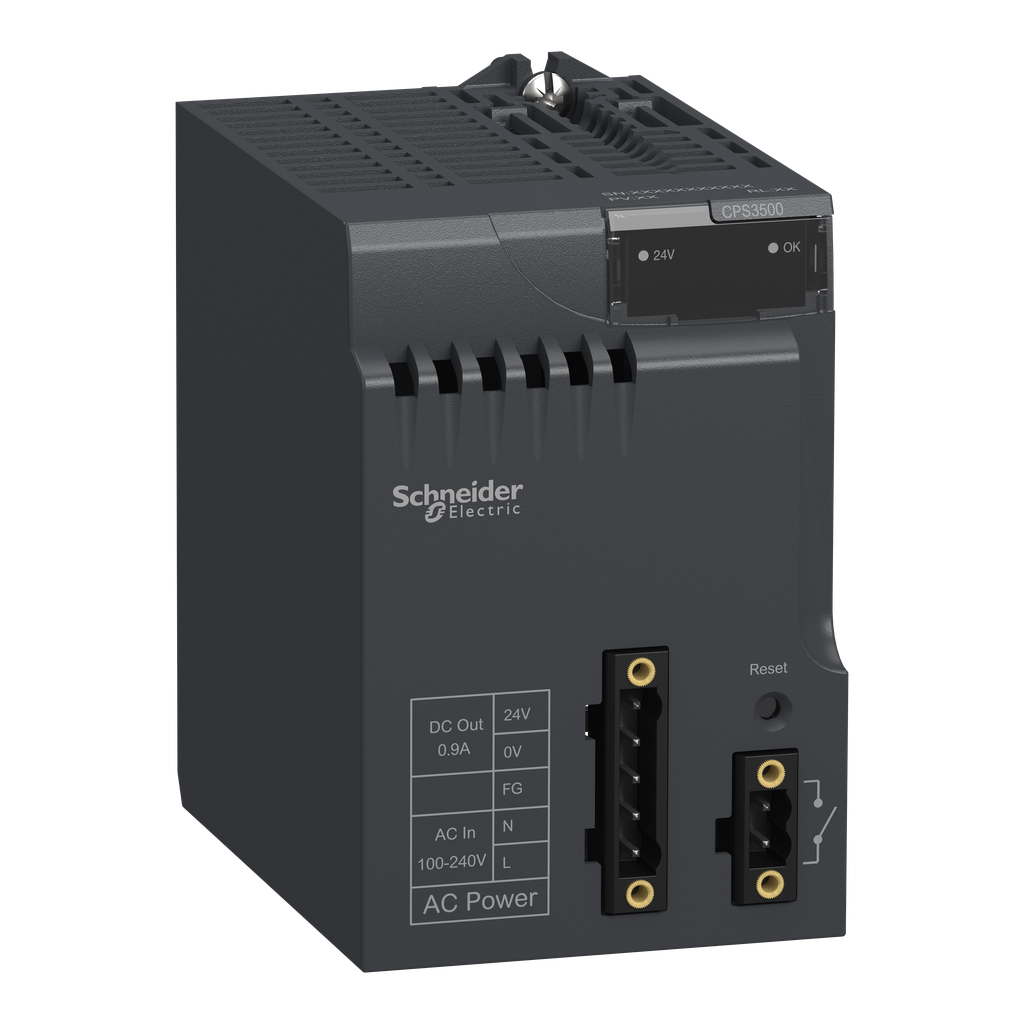

The Schneider Electric BMXCPS3500 is a power supply module designed for Modicon M580 and M340 Programmable Automation Controllers (PAC). It operates on a primary voltage range of 100 to 240 volts AC and provides a secondary power of 31.2 watts at 24 volts DC. This module also supports a current of 4.5 amperes at 3.3 volts DC and can dissipate a maximum of 8.5 watts. It features a robust design with 2-pin and 5-pin connectors for alarm relay and line supply, respectively.

• Primary voltage of 100V to 240V AC
• Secondary output of 31.2W at 24V DC
• IP20 rated enclosure for electrical protection

Product Highlights

This power supply module is ideal for medium to large process applications. It is certified by several safety standards including CE, RCM, CSA, and UL, ensuring compliance with EN 61131-2 and EN 61000 standards.

Product Information

Standard Information

• Catalog Number: BMXCPS3500
• Manufacturer: Schneider Electric

Technical Specifications

• Weight: 0.36 kg
• Input Voltage: 100 to 240 volts
• Wattage: 36 watts
• Certifications: CE, RCM, CSA, EAC, UL
• Operating Temperature: 0 to 60 degrees C
• Storage Temperature: -40 to 85 degrees C
• Warranty: 18 months
