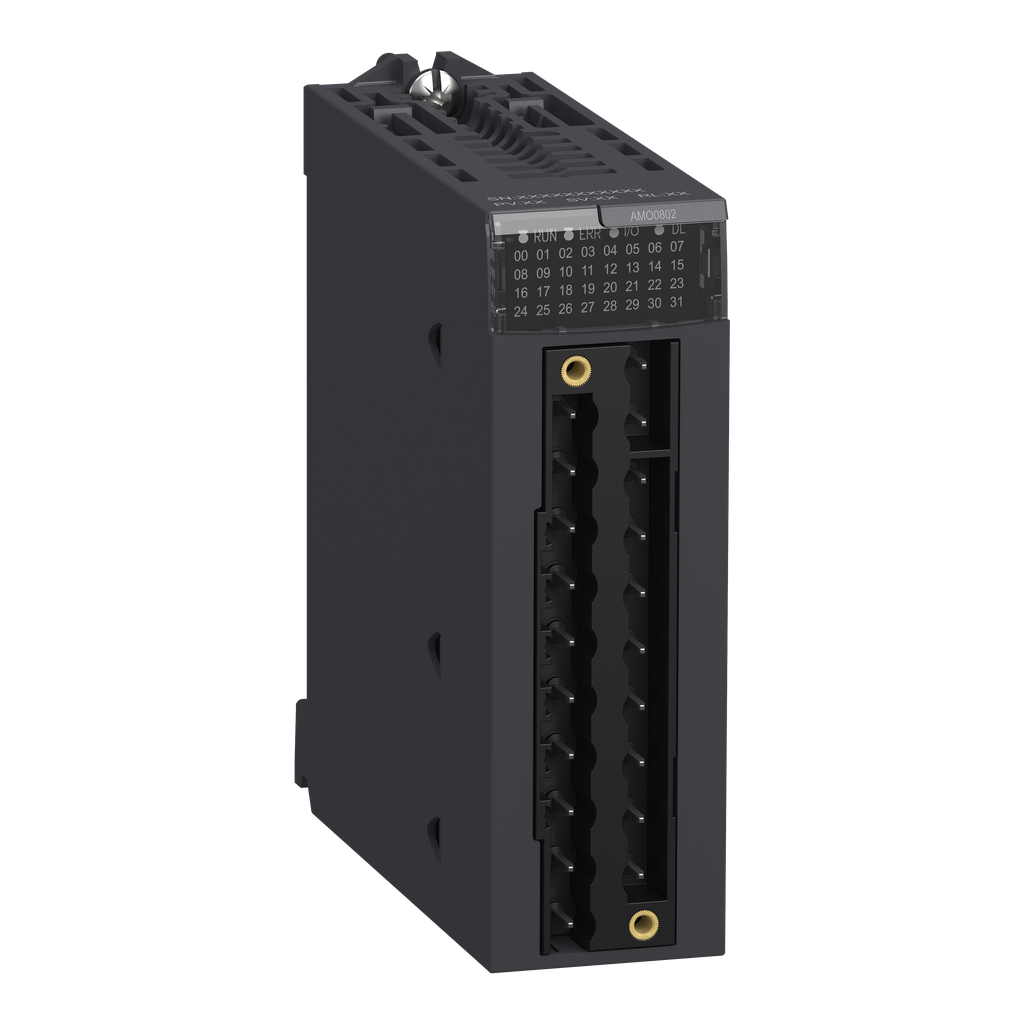

Schneider Electric BMXAMO0802 20 mA PLC Analog Input Module

Product Description

Schneider Electric BMXAMO0802 is an analog output module designed for Modicon M580 and M340 Programmable Automation Controllers. This module features eight outputs that operate at 16-bit resolution, making it suitable for a wide range of applications. The internal power supply connects directly via a rack, ensuring reliable power distribution. This model is IP20 rated, making it appropriate for control environments where dust and moisture levels are relatively low.

• Eight high-level outputs for efficient control
• Internal power supply through rack connection
• Compatible with Modicon M580 and M340 systems

Product Highlights

The BMXAMO0802 simplifies integration with existing systems and reduces training costs due to its common platform design. This module is certified for various standards including CE, UL, and CSA.

Product Information

Standard Information

• Catalog Number: BMXAMO0802
• Brand: Schneider Electric

Technical Specifications

• Weight: 0.33 lb (0.15 kg)
• Current: 135 mA
• Enclosure: IP20
• Operating Temperature: 0.0 C to 60.0 C
• Storage Temperature: -40 C to 85 C
• Number of Channels: 8
• Power Supply: Internal power supply via rack
• Output Signal: High level
