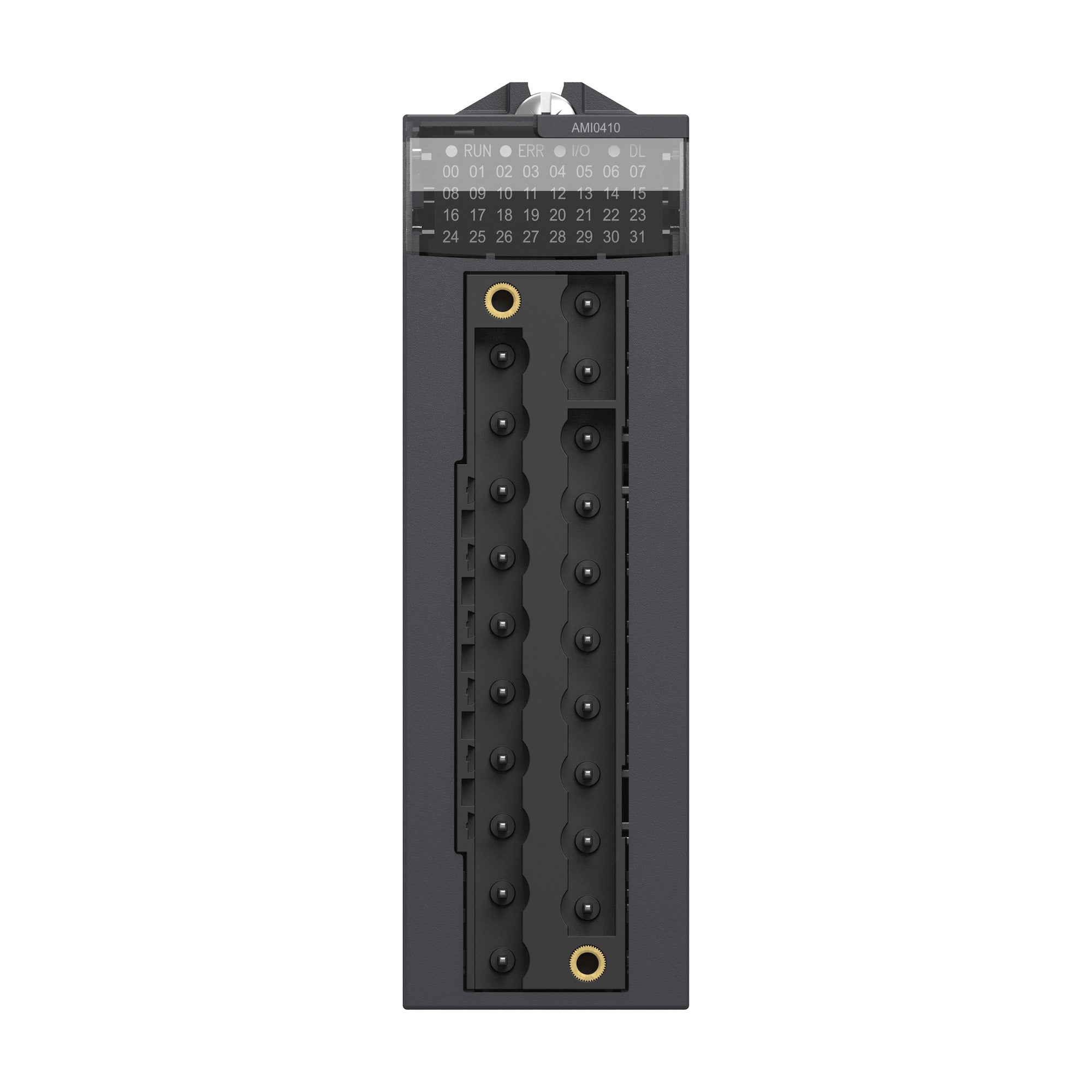

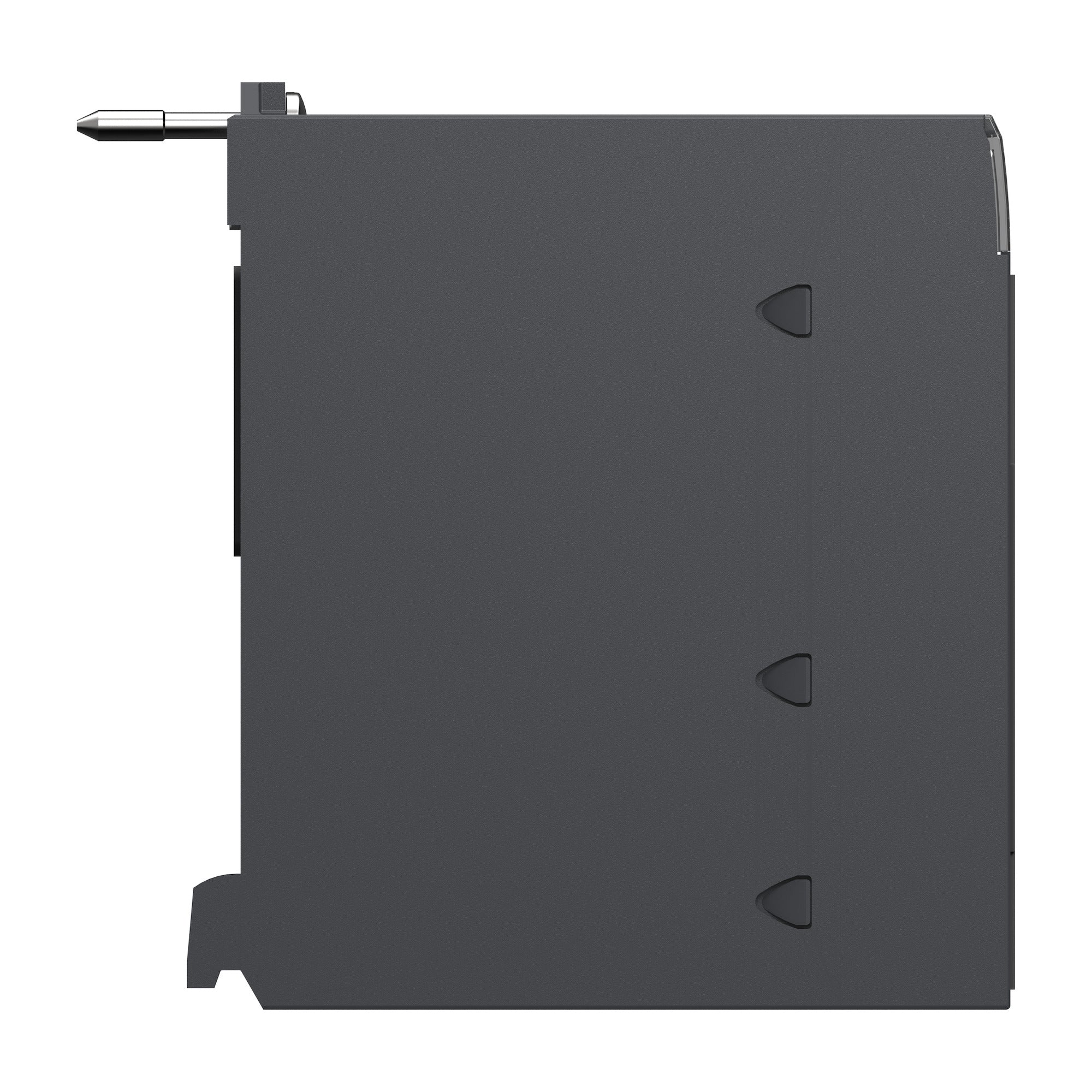

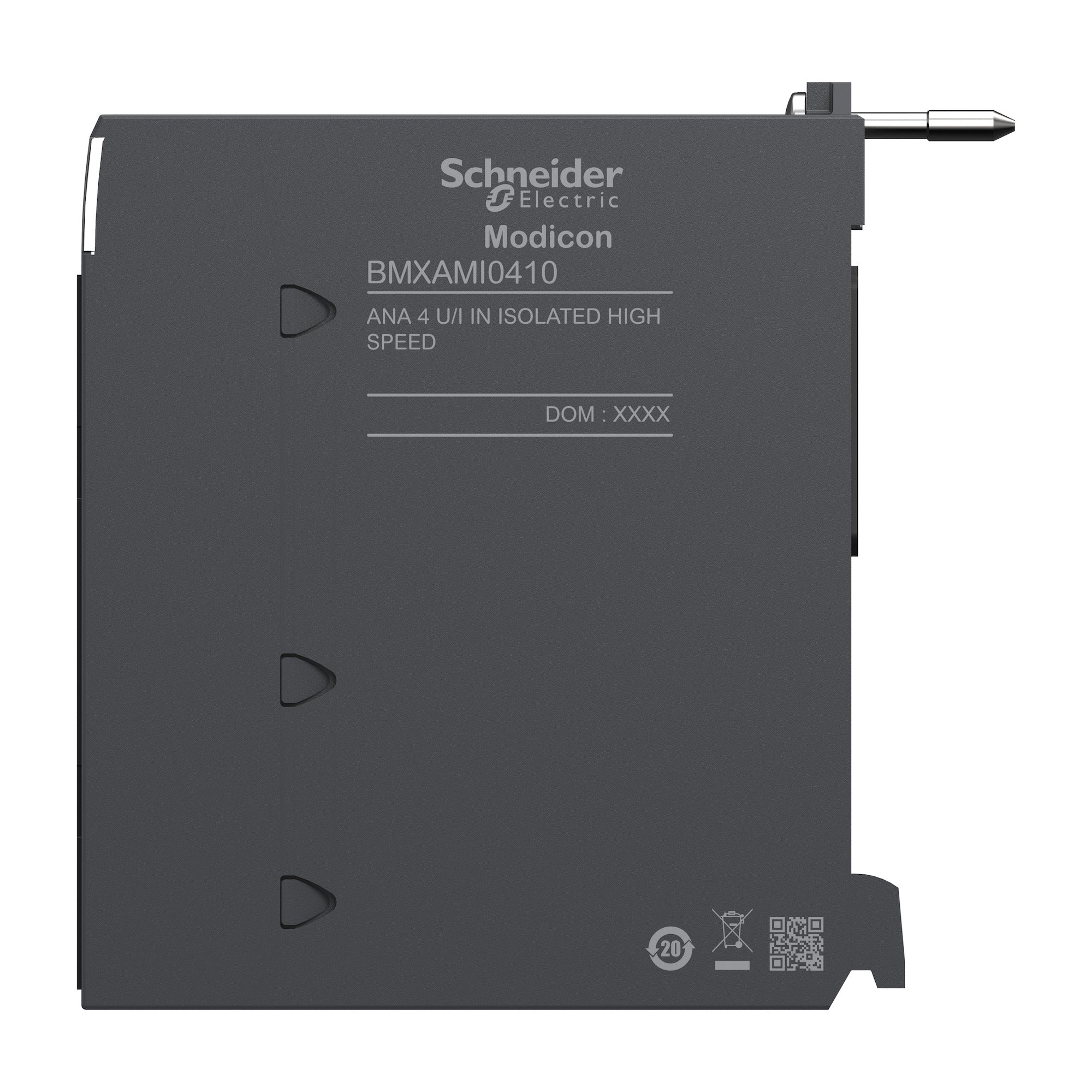

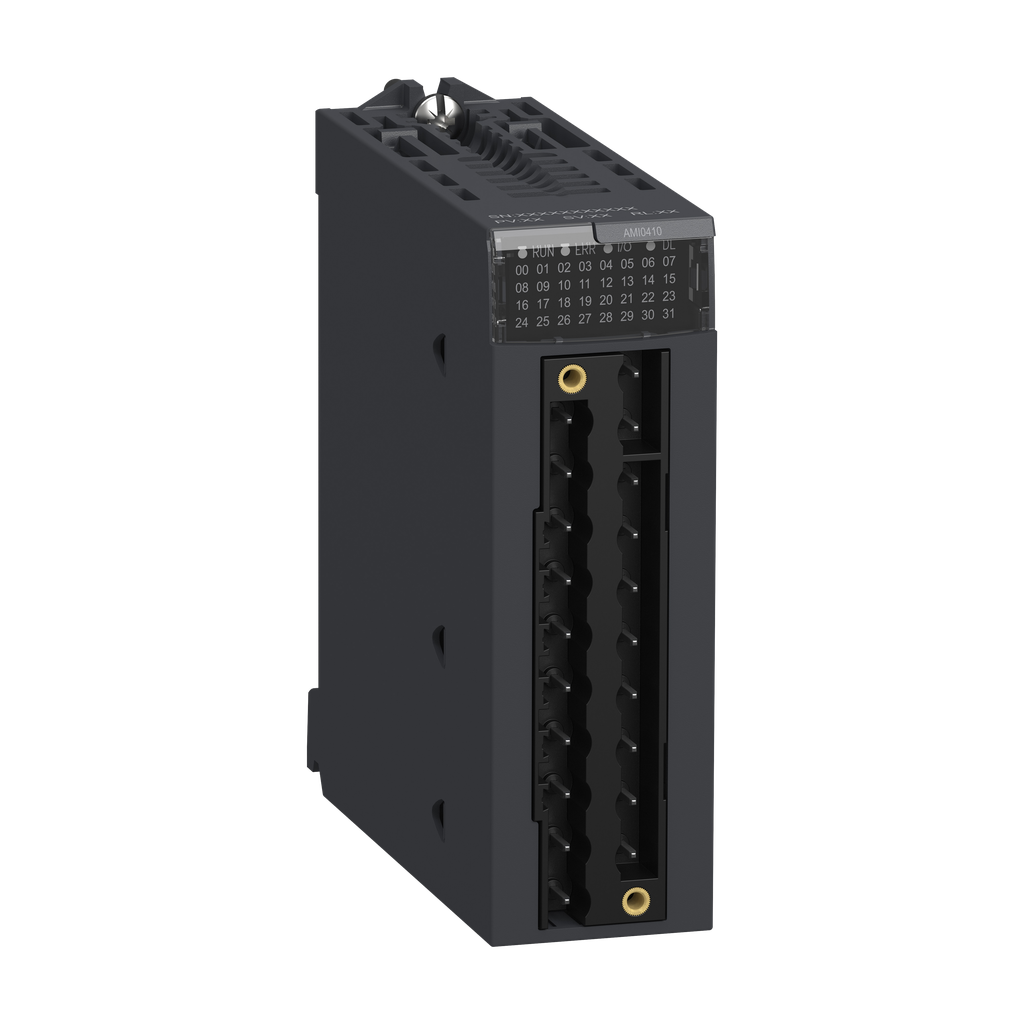

Schneider Electric BMXAMI0410 Square D 20 mA 5 Volt IP20 PLC Analog Input Module

Product Description

The Schneider Electric BMXAMI0410 is a high-level analog input module designed for the Modicon X80 series. It includes four isolated analog inputs with a resolution of sixteen bits. This module interfaces with various sensors and transmitters through a twenty-way removable terminal block. It is used for monitoring, measurement, and process control, suitable for continuous operations. The input ranges for voltage or current are configurable based on specific application requirements. The module fits into a single slot of the rack, offering IP20 protection for its electronics.

• Four isolated analog inputs
• Connected via removable terminal block
• IP20 protection for electronic components

Product Highlights

This analog input module is known for its robust performance in industrial automation settings.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: BMXAMI0410
• GTIN: 03595863910179
• Number of Channels: 4
• Operating Temperature: 0 to 60 degrees Celsius
• Storage Temperature: -40 to 85 degrees Celsius
• Power Supply: 150 mA at 3.3 V DC and 45 mA at 24 V DC
• Current Consumption: 150 mA
• Enclosure Rating: IP20
