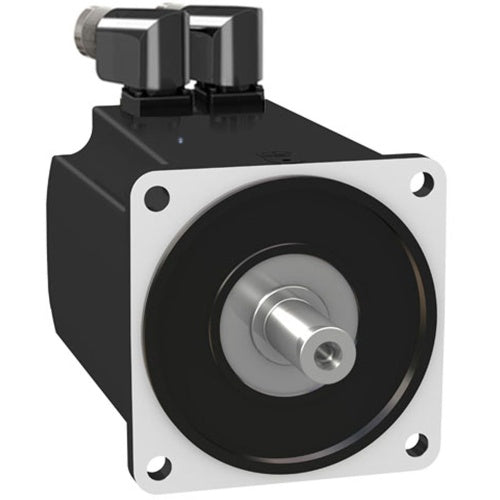

Schneider Electric BMH1402P06F2A Servo Motor 4.44W

Product Description

The Schneider Electric BMH1402P06F2A is a servo motor from the Lexium 32 range. This model is designed for machines requiring between zero point fifteen kilowatts and seven kilowatts of power. It has a ten-pole design with a maximum mechanical speed of four thousand RPM, a smooth shaft, and a holding brake.

• Equipped with a SinCos Hiperface encoder for precise data transmission.
• Suitable for high-load applications, featuring adjustable movement capabilities.
• Includes rotatable right-angled connectors and meets IP54 protection standards.

Product Highlights

This servo motor is compatible with Lexium 32 servo drives and supports a one hundred forty millimeter flange mount with natural convection cooling.

Product Information

Standard Information

• Device Short Name: BMH
• Product Type: Servo Motor

Technical Specifications

• Range Compatibility: Lexium 32
• Number Of Motor Poles: 10
• Maximum Mechanical Speed: 4000 RPM
• Holding Brake: Yes
• IP Rating: IP54
• Rated Supply Voltage: 480 V
• Continuous Stall Current: 16.83 A
• Mounting Flange Size: 140 mm
