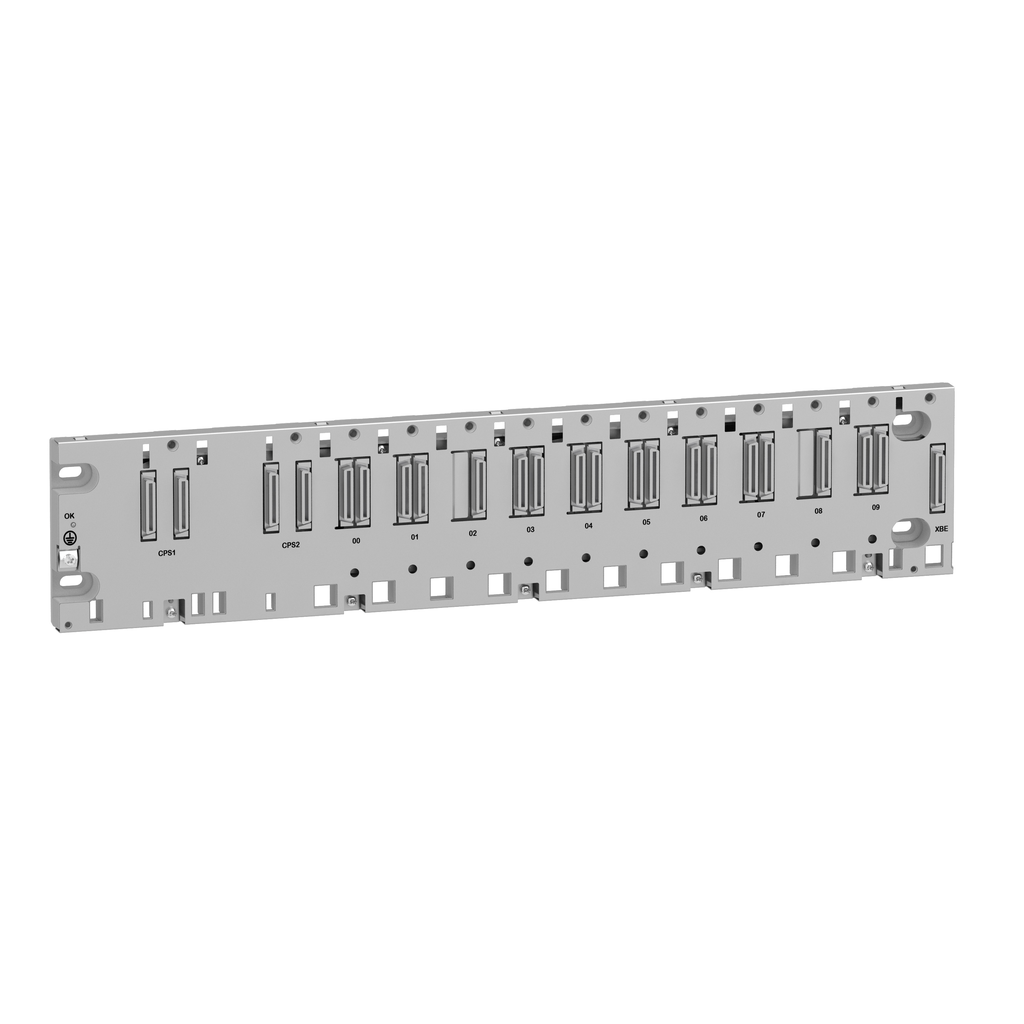

Schneider Electric BMEXBP1002 rack, Modicon X80, 1

Product Description

Schneider Electric BMEXBP1002 is a component of the Modicon X80 series. This rack provides an effective solution for Modicon M580 and M340 Programmable Automation Controllers (PAC). It features a dual Ethernet and X-bus structure allowing integration with various modules.

• 10 slots with a combination of Ethernet and X-bus connectors
• Meets multiple industry standards including EN 61131-2 and EN 61000-6-4
• Suitable for medium to large process applications

Product Highlights

This Ethernet backplane rack is designed for reliability and efficiency in automation systems. It supports mixed module configurations and is equipped with expansion capabilities for increased flexibility.

Product Information

Standard Information

• Catalog Number: BMEXBP1002
• Manufacturer: Schneider Electric

Technical Specifications

• Weight: 1.37 kg
• Current: 162 mA at 24V DC
• IP Rating: IP20
• MTBF: 1770000 hours
• Country of Origin: France
• Standards Compliant: EN 61131-2, EN 61000-6-4, EN 61000-6-2, EN 61010-2-201
• Compatible Modules: BMXCPS4002, BMX processor, and BME processor
