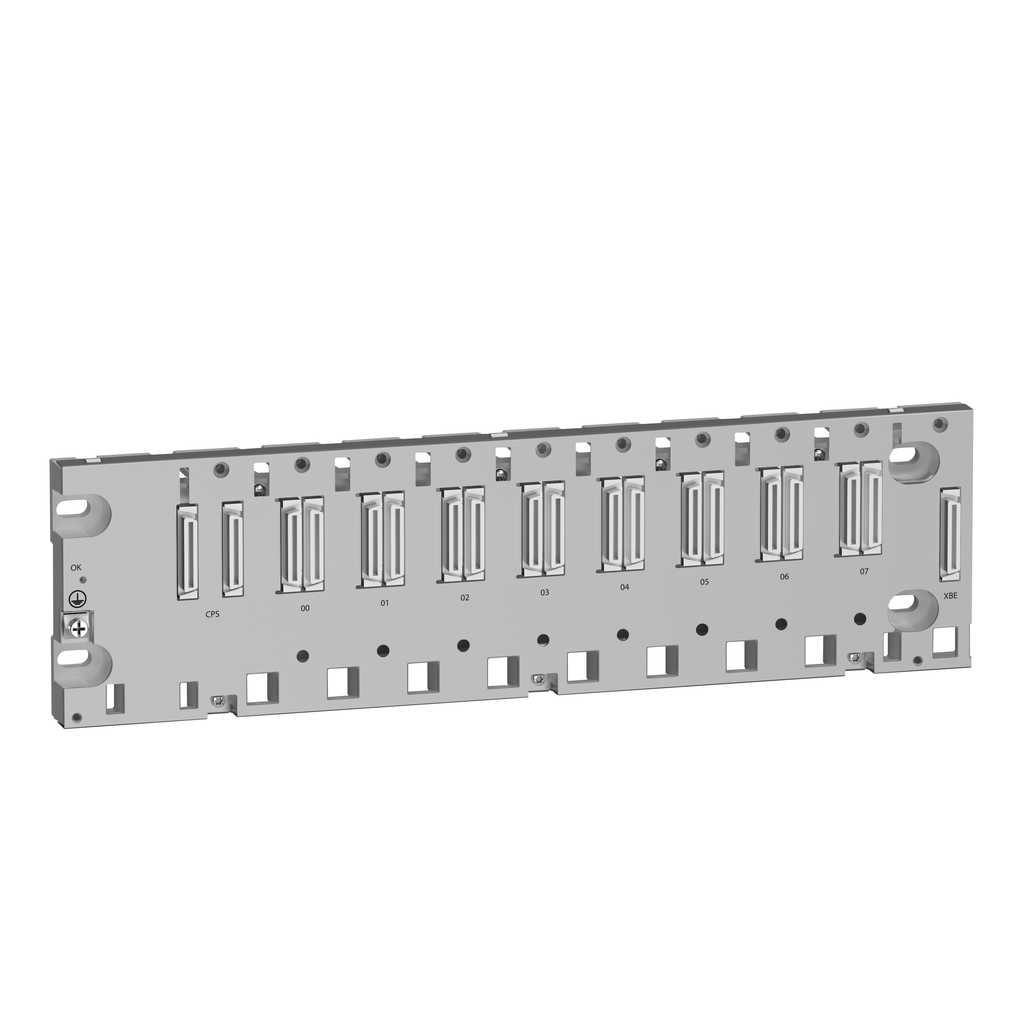

Schneider Electric BMEXBP0800 rack, Modicon X8 8 slots Ethernet backplane

Product Description

Schneider Electric's BMEXBP0800 is a rack designed for the Modicon X80 series, serving as an essential component for Modicon M580 and M340 Programmable Automation Controllers (PAC). This Ethernet backplane rack features a design that accommodates eight slots, allowing for flexibility with Ethernet and X-bus connectors for mixed modules.

• 8 slots for Ethernet and X-bus modules
• 164mA at 24V DC and 64mA at 3.3V DC current ratings
• IP20 rated for protection

Product Highlights

This backplane rack offers a mean time between failures (MTBF) of 1,700,000 hours, ensuring reliability and minimal maintenance. With a weight of approximately 1.06 kilograms, it is ideal for medium to large applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: BMEXBP0800
• Weight: 1.06 kg
• Current Ratings: 164mA at 24V DC, 64mA at 3.3V DC
• MTBF: 1,700,000 hours
• IP Rating: IP20
• Standards Compliance: EN 61131-2, EN 61000-6-4, EN 61000-6-2, EN 61010-2-201
• Country of Origin: France
• Temperature Rating: 0-60 degrees C
