Schneider Electric BMEXBP0400 SQUARED BMEXBP0400 rack, Modicon X8

Product Description

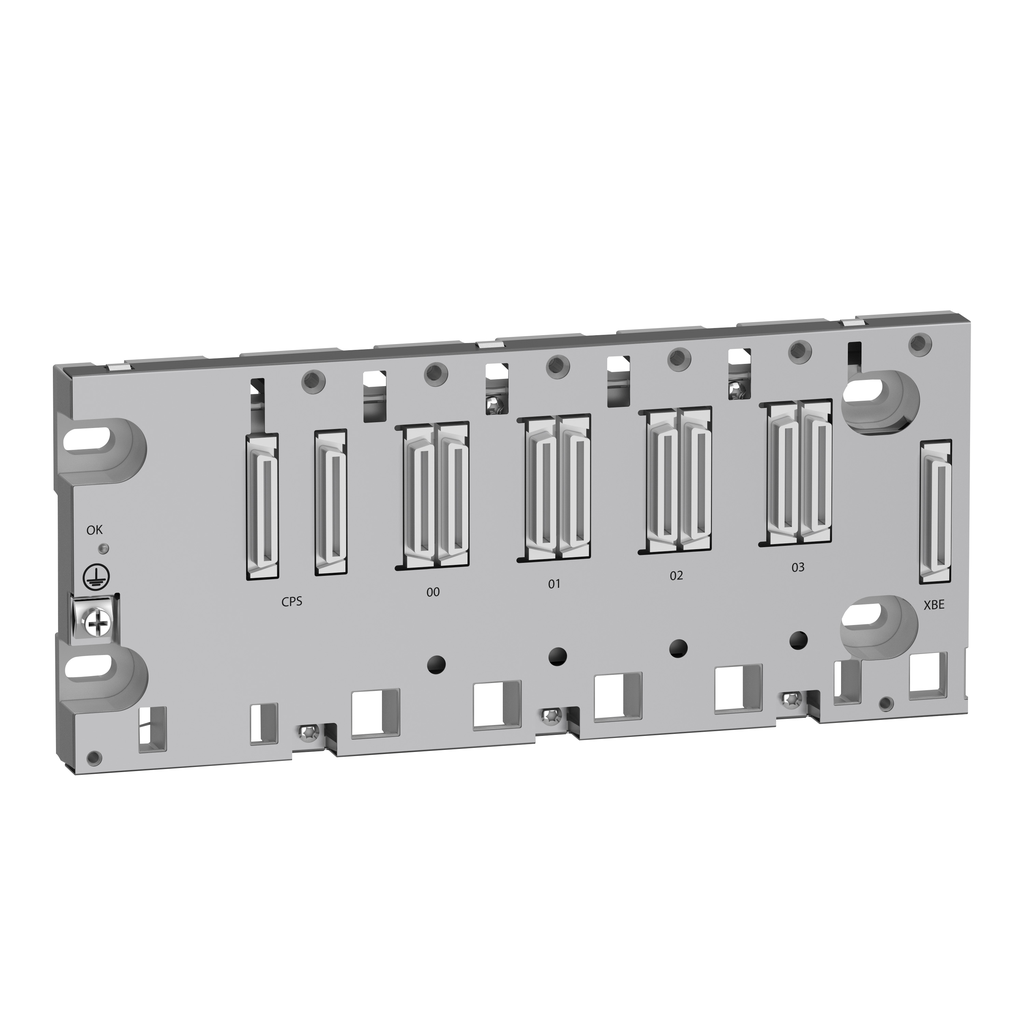

Schneider Electric BMEXBP0400 is part of the Modicon X80 range. This rack is designed for Modicon M580 and M340 Programmable Automation Controllers (PAC). It serves as an Ethernet backplane, an essential accessory for these controllers. The product features a four-slot design with dual Ethernet and X-bus connectors. Each slot is capable of accommodating mixed modules for flexible configurations.

The BMEXBP0400 operates at a current of 118mA at 24V DC and 49mA at 3.3V DC. It includes one connector expansion module (XBE) for electrical connections. It is built for durability, offering a mean time between failures (MTBF) of two million hours. The unit is rated IP20, making it suitable for use in controlled environments.

• Compatible with various application modules and processors
• Designed for medium to large process applications
• Meets several industrial safety standards

Product Highlights

This Ethernet backplane rack ensures reliability and minimizes maintenance costs by using common spare parts across different PACs.

Product Information

Standard Information

• Catalog Number: BMEXBP0400
• Manufacturer: Schneider Electric

Technical Specifications

• Weight: 0.705 kg
• Current: 118 mA at 24V DC
• Wattage: 2.8 Watt
• Amperage: 49 mA at 3.3V DC
• Enclosure: IP20
• Temperature Rating: 0-60 degrees C
• Country of Origin: France
• Standards Complied: EN 61131-2, EN 61000-6-4, EN 61000-6-2, EN 61010-2-201
