Schneider Electric BMEP584040 standalone proce

Product Description

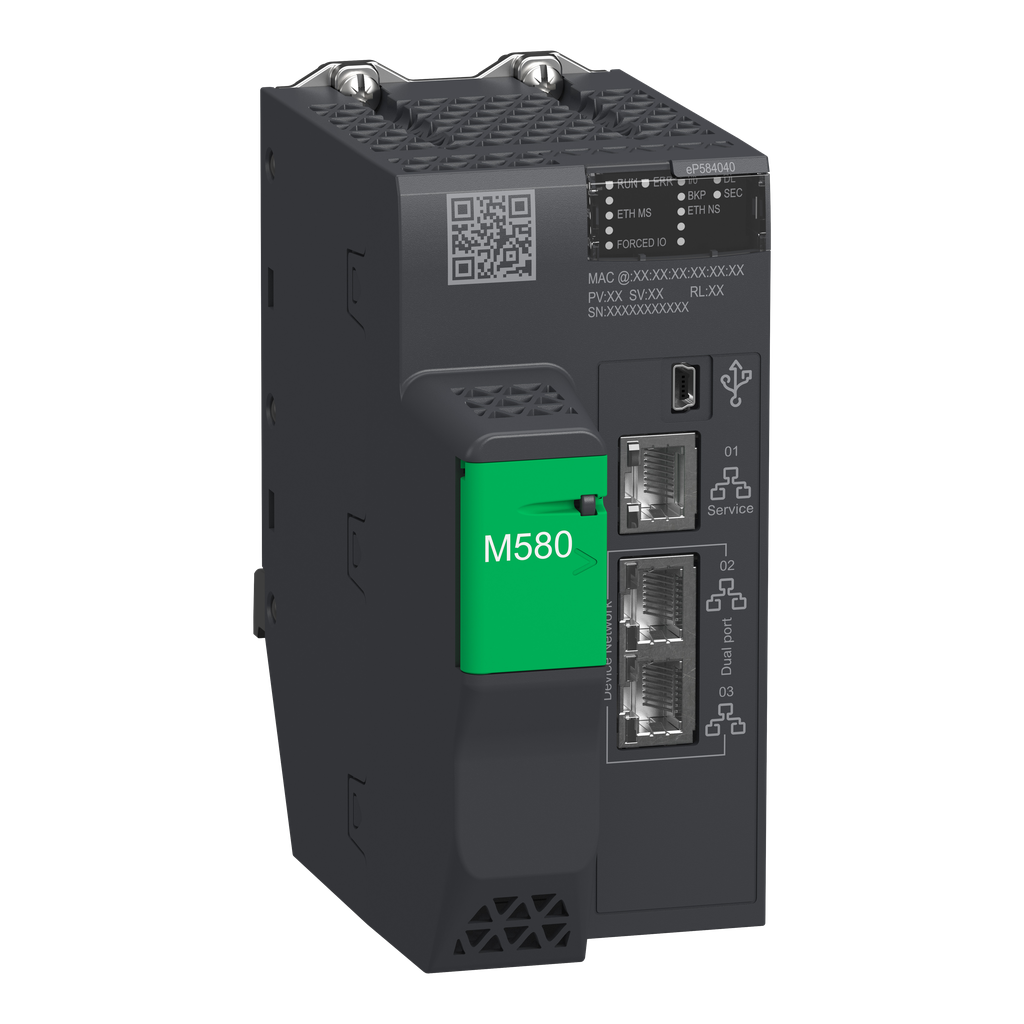

This Schneider Electric BMEP584040 is a processor module designed for the Modicon M580 range. It supports a maximum configuration of 8 racks and up to 144 specific application channels. The module consumes a current of 295mA at 24V DC and supports 4096 discrete and 1024 analogue local I/O channels as well as 64 distributed devices.

• Integrated Ethernet TCP/IP for improved connectivity
• Compatible with various standards including EN 61131-2 and UL
• IP20 rated with a weight of 0.849 kg

Product Highlights

This product is suitable for medium to large process applications and meets multiple safety certifications.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: BMEP584040
• Current: 295 mA
• Weight: 0.849 kg
• Operating Temperature: 0 to 60 degrees C
• Country of Origin: France
• Certifications: CE, CSA, EAC, UL
• Flash Memory: 4GB expandable
• Memory RAM: 16MB
