Product Description

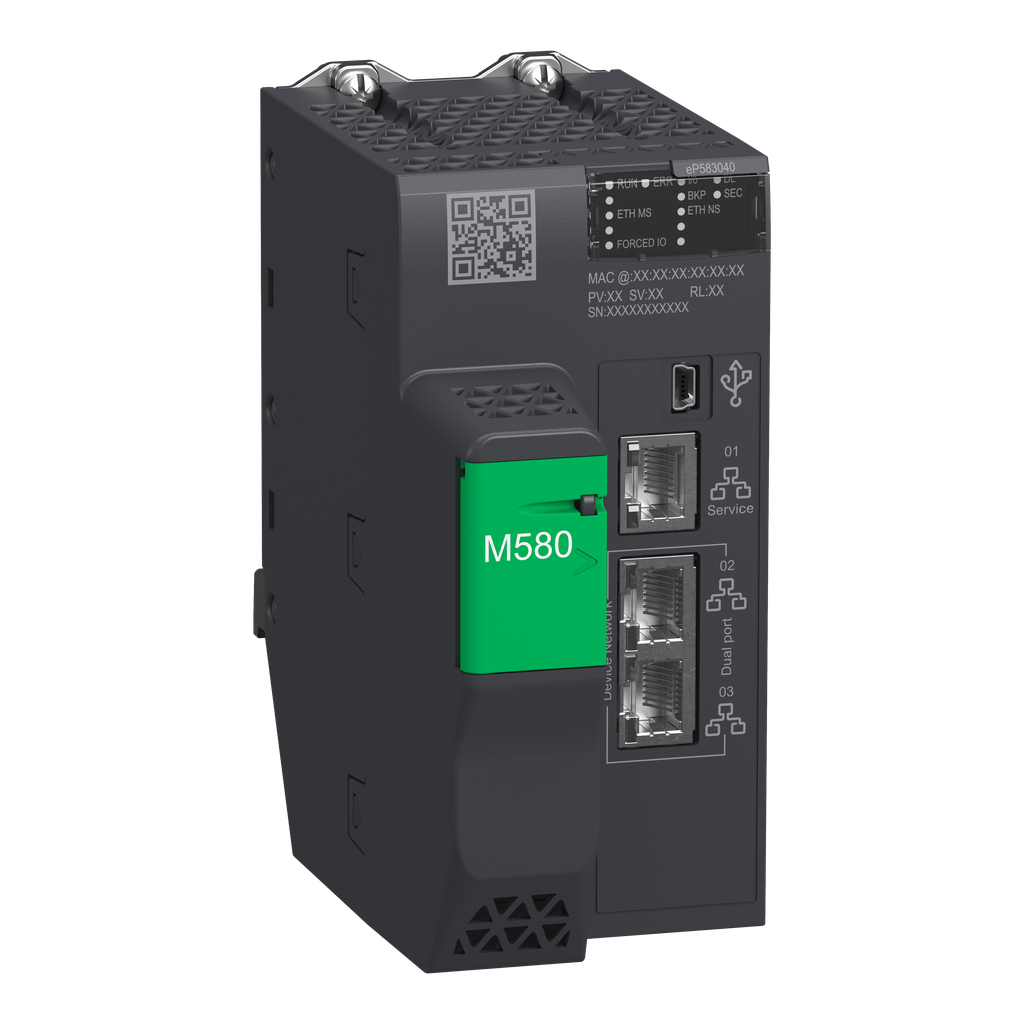

This product is a component of the Modicon M580 series. It is part of the Programmable Automation Controllers and safety Programmable Logic Controllers with built-in Ethernet capabilities. The processor module supports a maximum of eight rack configurations and one hundred eight application-specific channels. Current consumption is two hundred ninety-five milliamperes at twenty-four volts direct current. It is designed to handle three thousand seventy-two discrete and seven hundred sixty-eight analogue local input/output channels, along with sixty-four distributed devices.
The module integrates several Ethernet TCP/IP ports, including one service port, two for device networking, one for HSBY, and a USB type mini B connection. It features an expected mean time between failures of six hundred thousand hours and accommodates up to sixteen racks per remote drop for I/O stations. Memory consists of twelve megabytes for programs, one thousand twenty-four kilobytes for data, ten kilobytes for system use, and four gigabytes for expandable flash storage. Rated IP20, it weighs zero point eight four nine kilograms and fits medium to large process applications.
This product holds certifications from CE, Merchant Navy, UL, RCM, CSA, and EAC, adhering to standards such as EN 61131-2, and EN 61000-6-4. Modicon M580 benefits include quicker market readiness, enhanced reliability, better sustainability, and improved productivity due to optimized data access.
- Supports eight rack configuration
- Integrates multiple Ethernet ports
- Designed for medium to large process applications
Product Highlights
This processor module is suitable for complex automation applications, ensuring reliability and high performance.
Product Information
Standard Information
-
Catalog Number: BMEP583040
-
Manufacturer: Schneider Electric
Technical Specifications
-
Brand: Schneider Electric
-
Net Weight: 0.849 kg
-
Operating Temperature: 0 to 60 degrees C
-
Enclosure Rating: IP20
-
Power Supply: 295 mA at 24 V DC
-
Storage Temperature: -40 to 85 degrees C
-
Certifications: CE, CSA, EAC, Merchant Navy, RCM, UL
