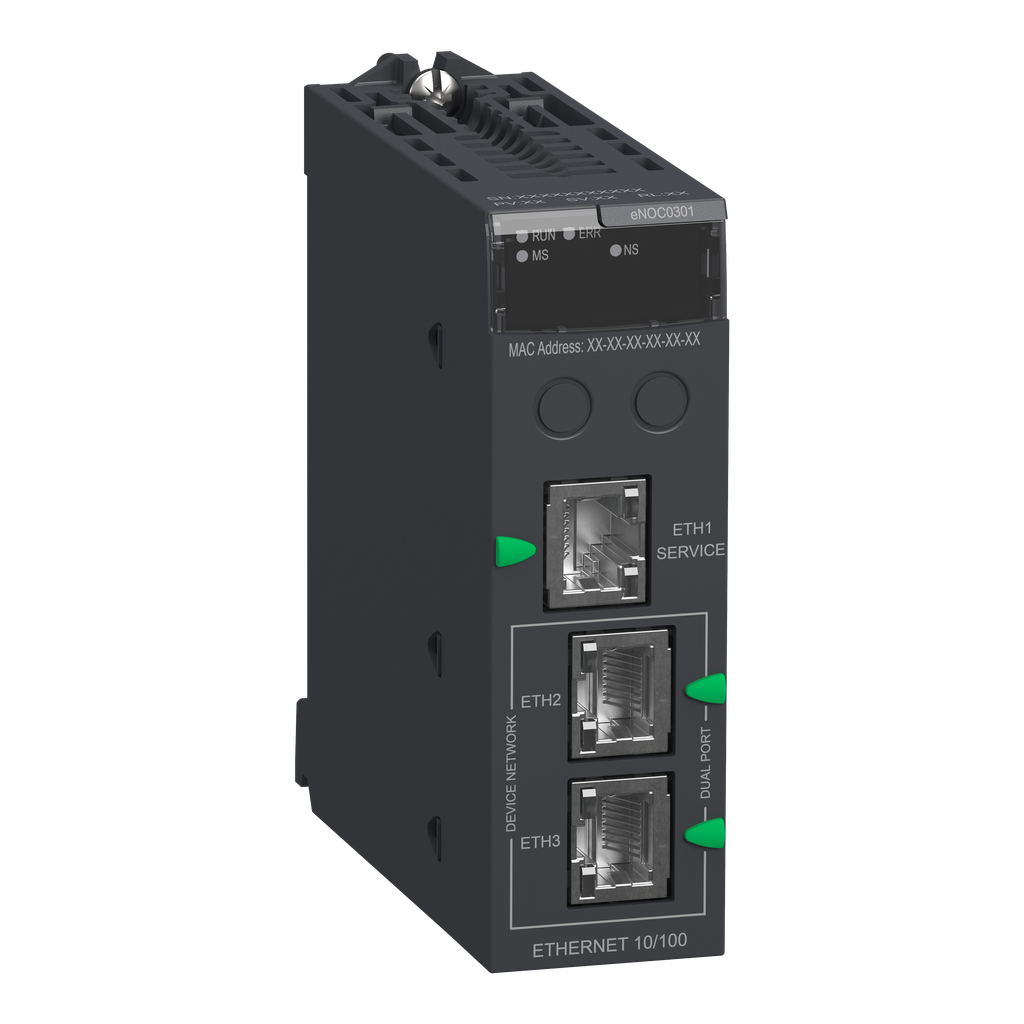

Schneider Electric BMENOC0301 network module, Modicon M580, Ethernet IP/Modbus TCP

Product Description

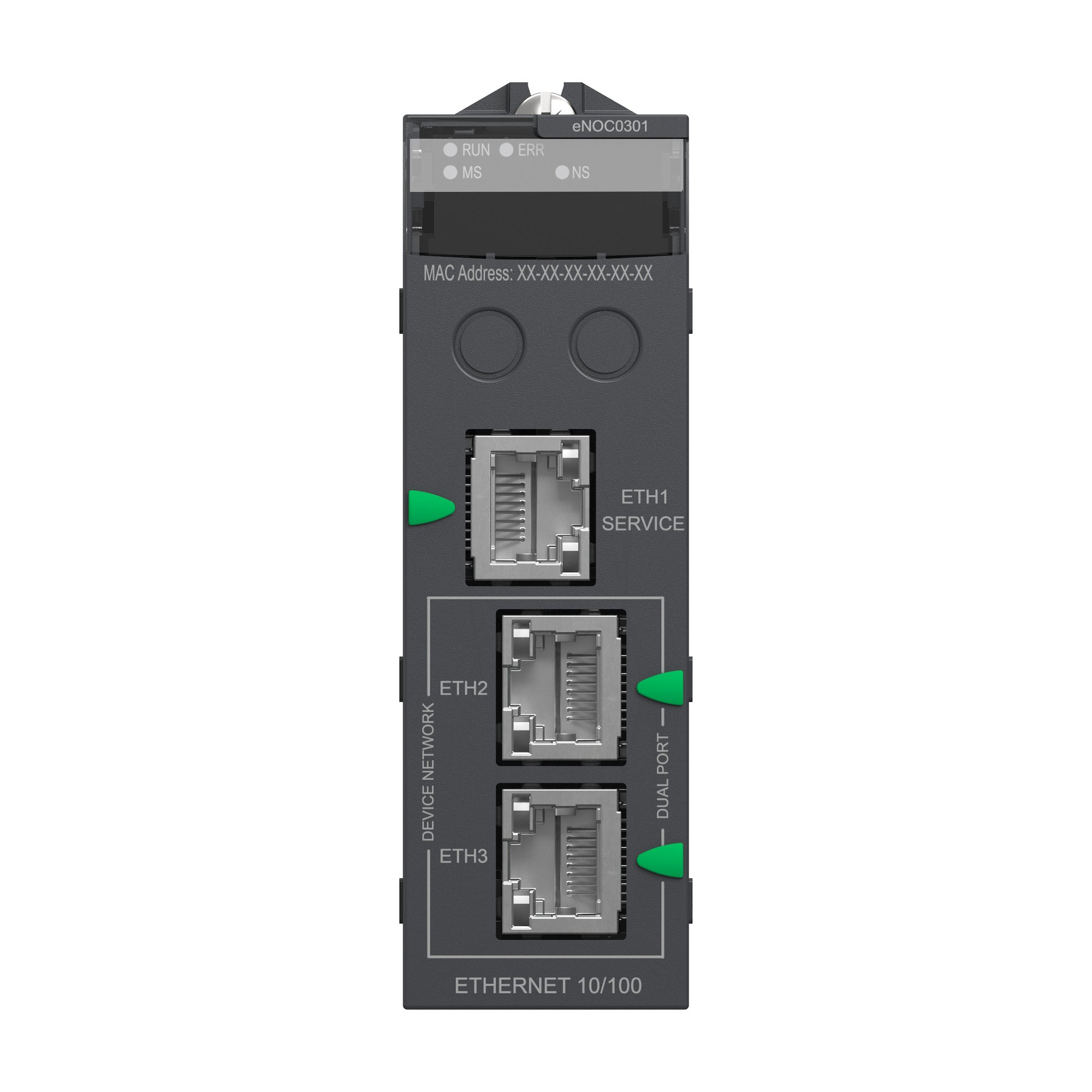

Schneider Electric offers the BMENOC0301 network module, part of the Modicon M580 range. This communication module is designed for Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with integrated Ethernet capabilities. It features three Ethernet RJ45 connectors for versatile connectivity.

• Contains bandwidth management services and support for multiple protocols
• IP20 rated with a compact design
• Compatible with BMEXBPxxx - Ethernet + X-bus rack

Product Highlights

It is suitable for medium to large process applications and improves access to crucial data for enhanced operational efficiency.

Product Information

Standard Information

• Catalog Number: BMENOC0301
• Brand: Schneider Electric

Technical Specifications

• Weight: 0.2 kg
• Current Consumption: 555 mA
• Power Supply: Internal power supply via rack
• Certifications: CE, UL
• Standards Met: EN 61131-2, EN 61000-6-4, EN 61000-6-2, EN 61010-2-201
• Country of Origin: France
