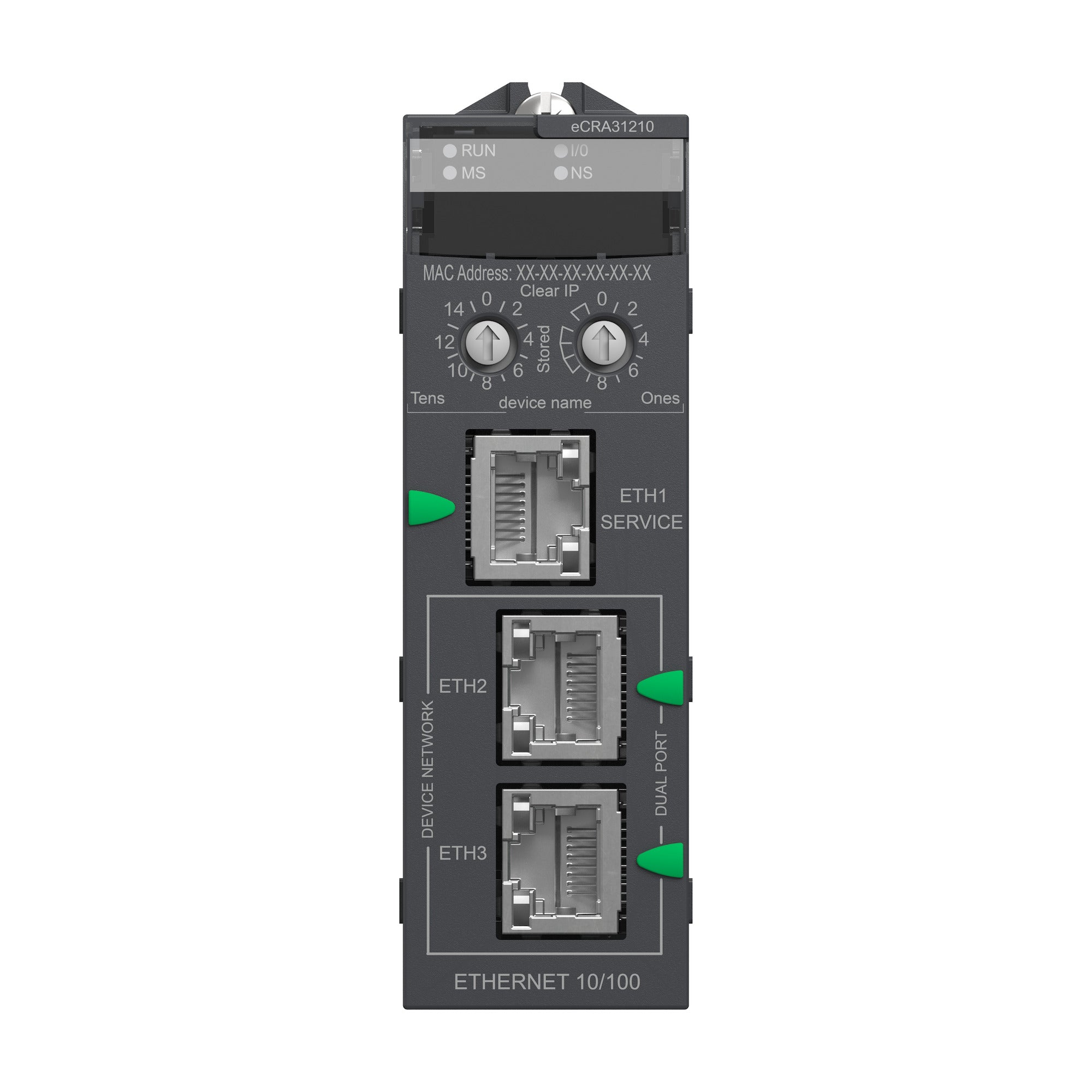

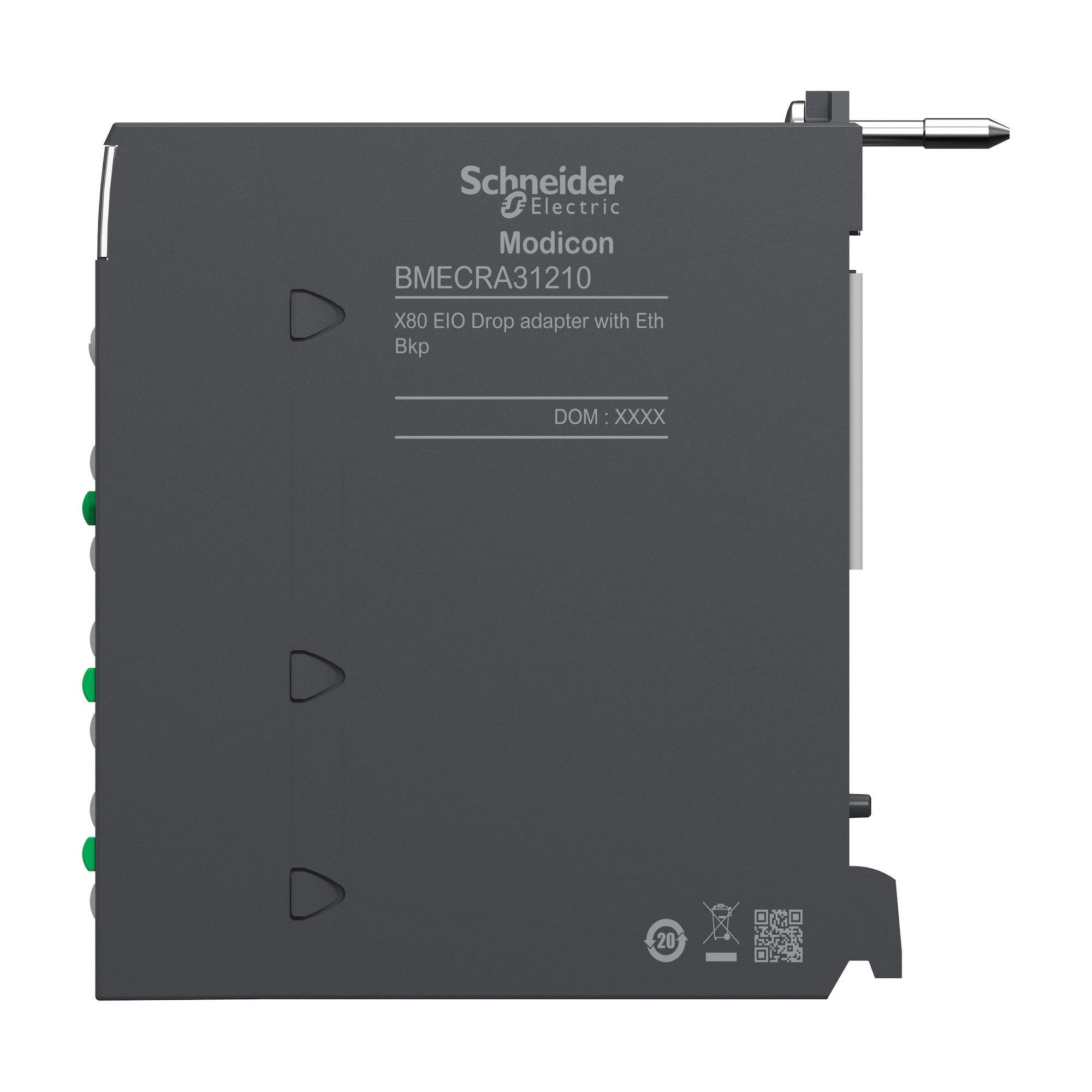

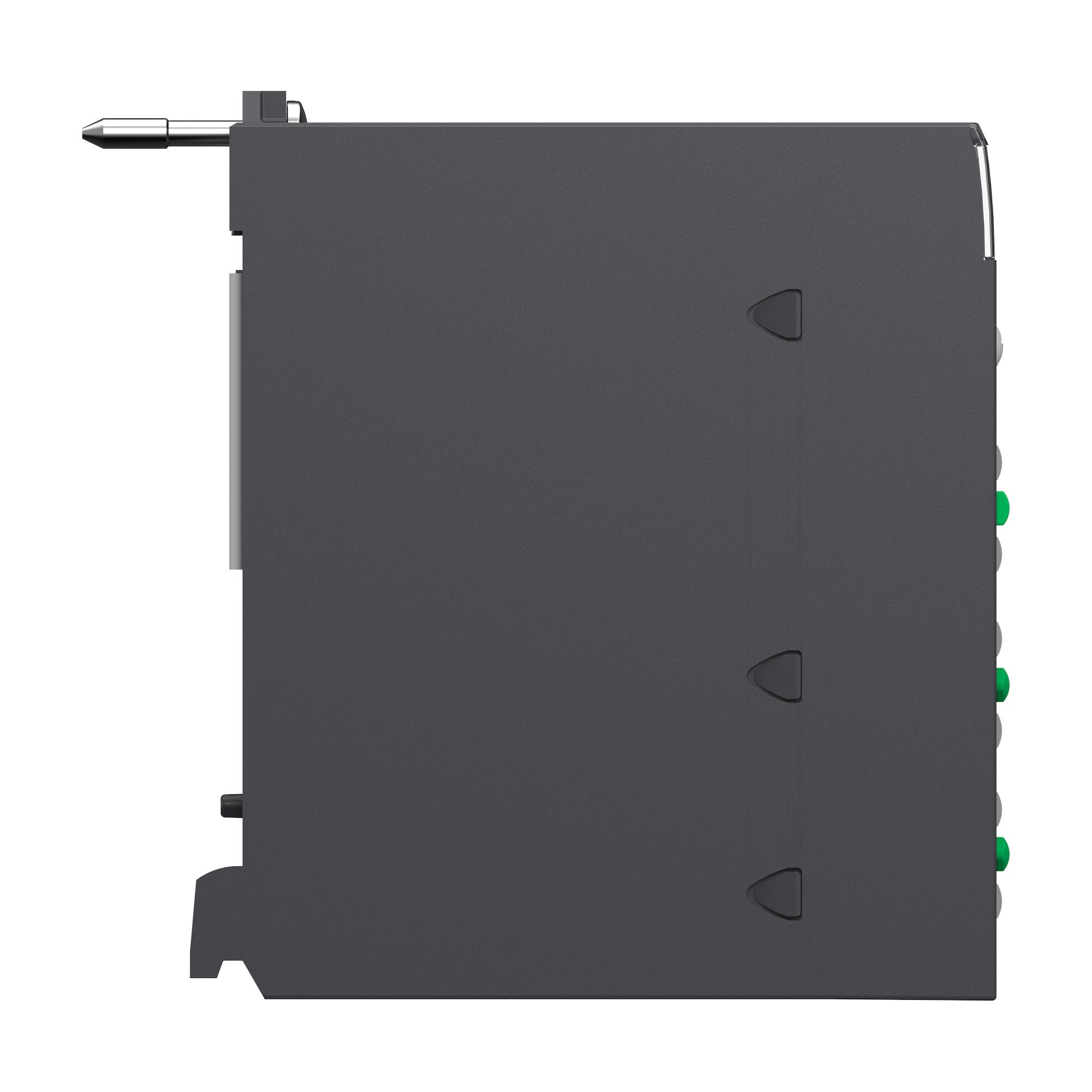

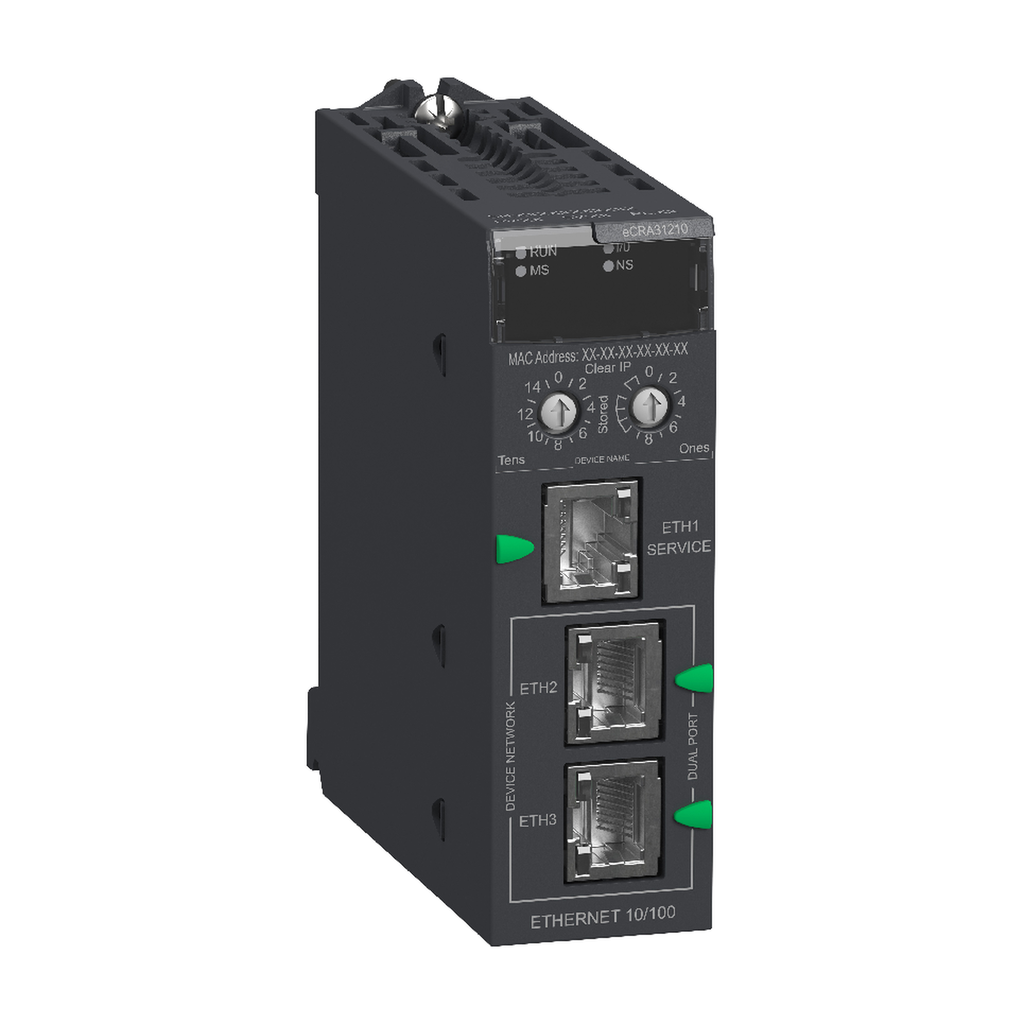

Schneider Electric BMECRA31210 EIO Drop Adapter With Ethernet Backplane

Product Description

Schneider Electric BMECRA31210 is an Ethernet Remote Input Output (RIO) drop adapter designed for the Modicon X80 range, a platform for Modicon M580 and M340 Programmable Automation Controllers (PAC). It features three ports, enabling effective data communication.

• Compatible with multiple modules, including BMXERT and BMXNOM.
• Robust design with an IP20 rating for medium to large applications.
• Complies with various international standards including CE and UL.

Product Highlights

This drop adapter allows remote I/O modules to communicate data efficiently, improving system performance and reducing maintenance efforts.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: France

Technical Specifications

• Catalog Number: BMECRA31210
• Input Voltage: 3.3 V
• Current: 1800 mA
• Dimensions: 87.5 mm Depth, 32 mm Width, 100 mm Height
• Weight: 0.225 kg
• Enclosure Rating: IP20
• Mounting Type: Rack-mounted
• Temperature Range: Operating 0-60 Degrees C, Storage -40 to 85 Degrees C
