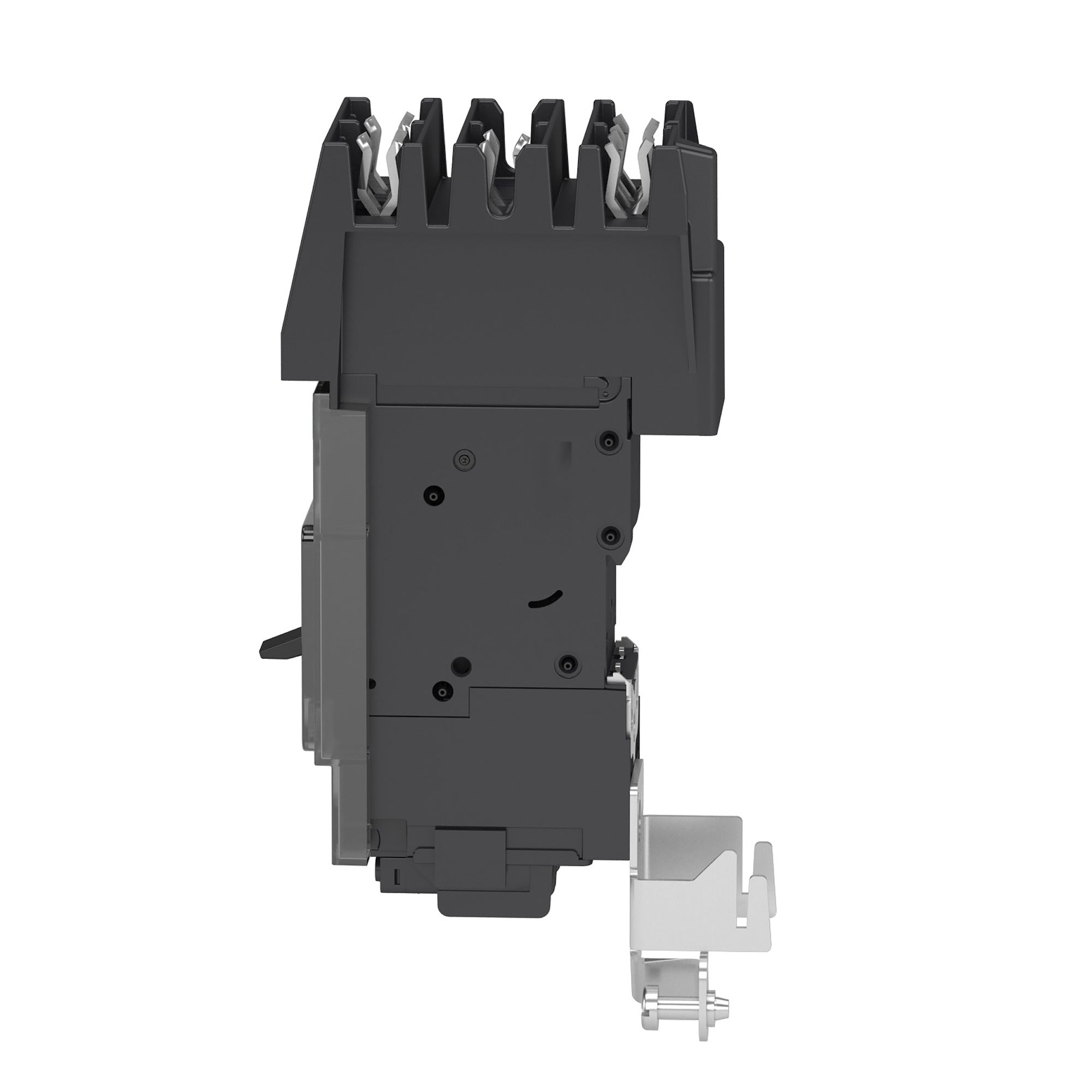

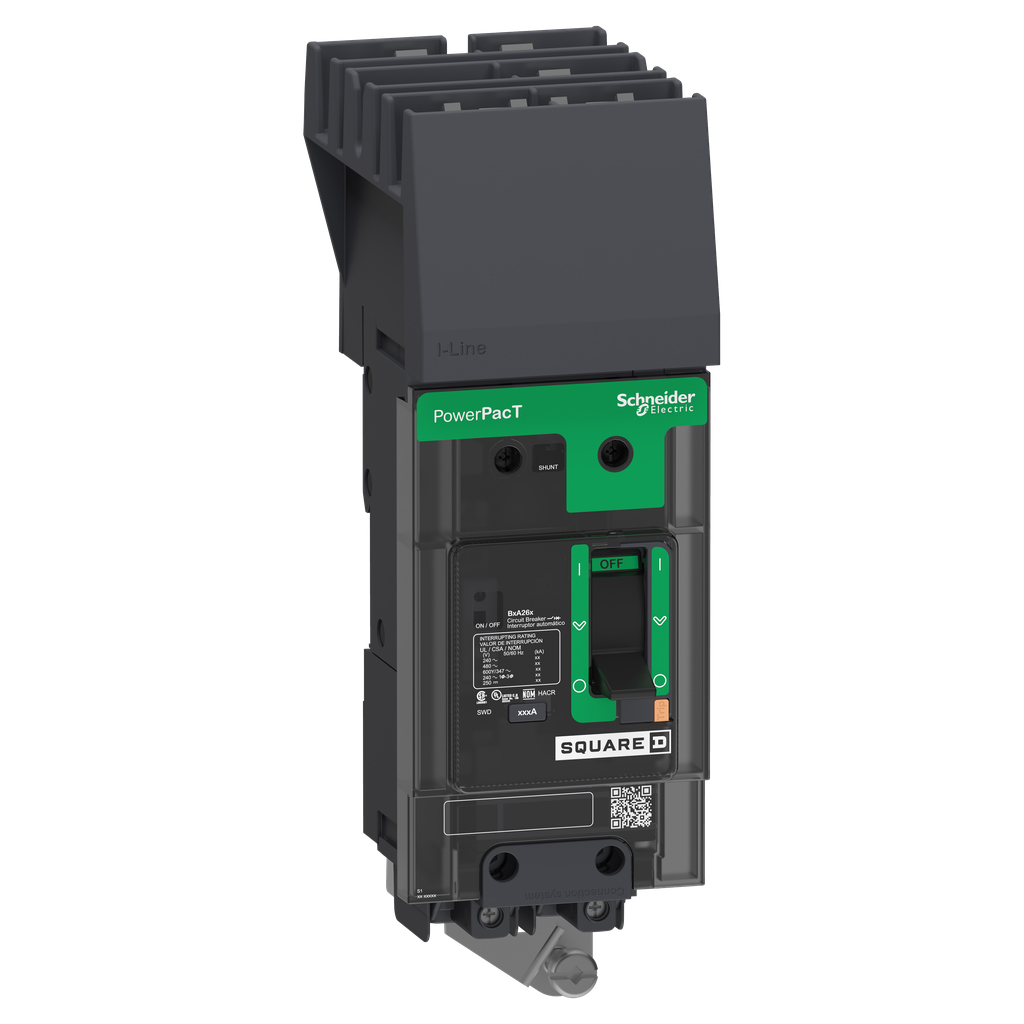

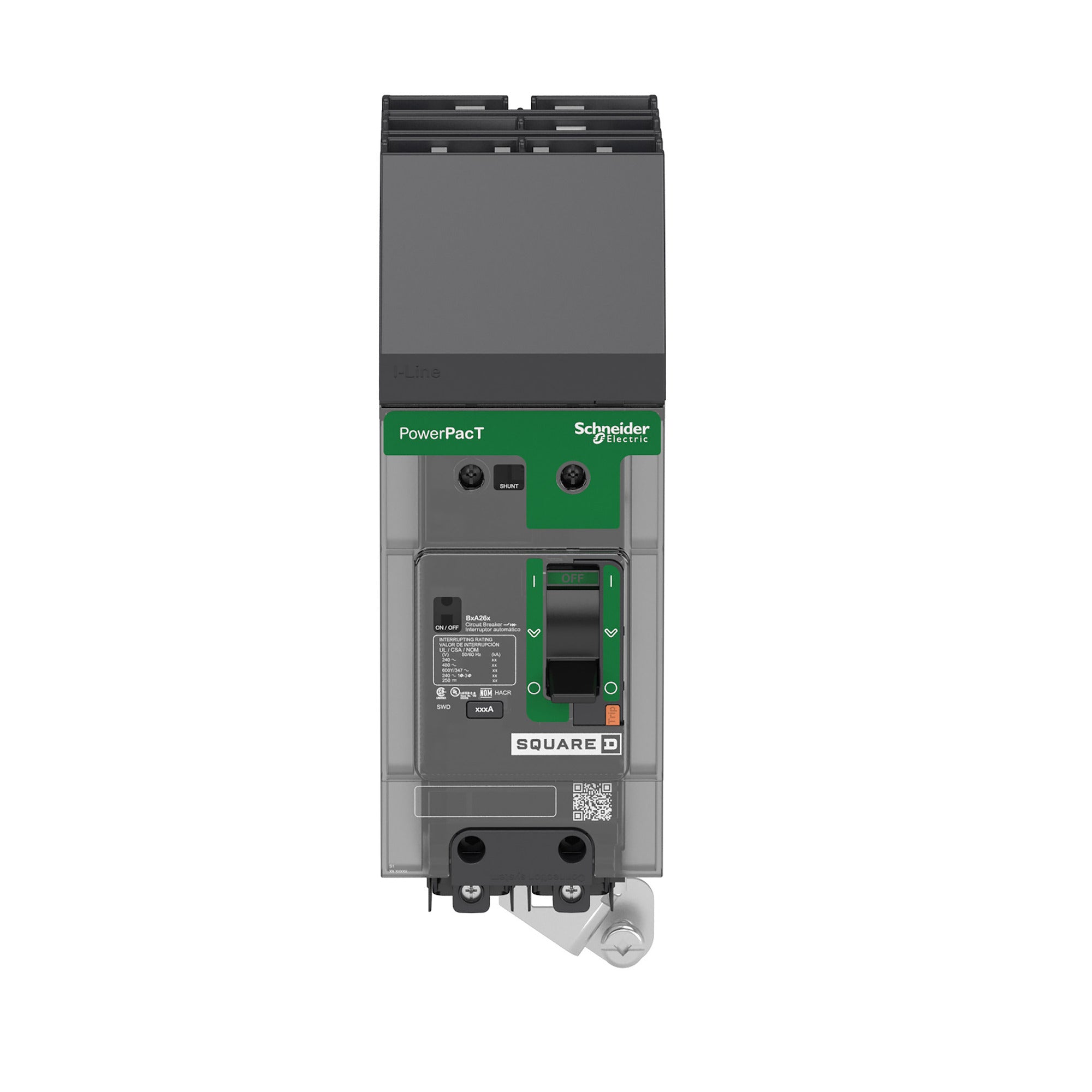

Schneider Electric BJA260601 Circuit Breaker, PowerPacT B, 60A, 2 Pole, 600Y/347VAC, 25kA

Product Description

The Schneider Electric BJA260601 is a PowerPacT B-Frame circuit breaker designed for thermal-mechanical protection. It has a compact design and offers various accessories and connection options. This breaker provides thermal magnetic protection with a breaking capacity of twenty-five kiloamperes at six hundred volts, three hundred forty-seven volts alternating current. Key features include:

• Integrated push-to-trip button for manual operation.
• Dual-break rotating contacts to reduce peak current during faults.
• Available in one to four pole configurations for versatility.

Product Highlights

This unit is suitable for both low voltage power applications and overload protection. It conforms to various safety standards, including UL and CSA.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: BJA260601
• Voltage: 690 Volt
• Amperage: 60 Amp
• Trip Type: Thermal-Magnetic
• Number of Poles: 2 Pole
• Breaking Capacity: 25kA at 600Y/347VAC
• Operating Temperature: -25°C to 70°C
• Weight: 2.10 lb
• Country of Origin: USA
