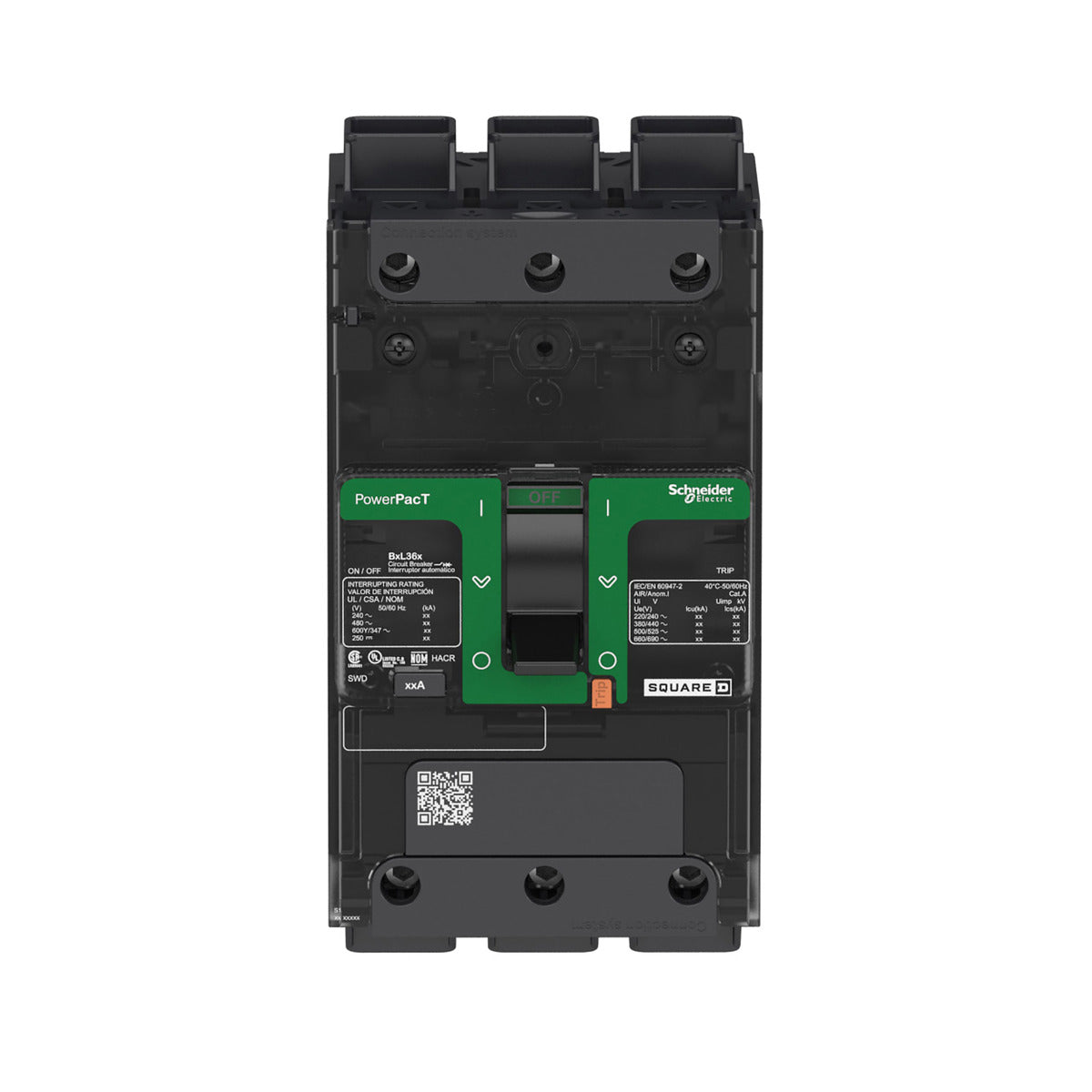

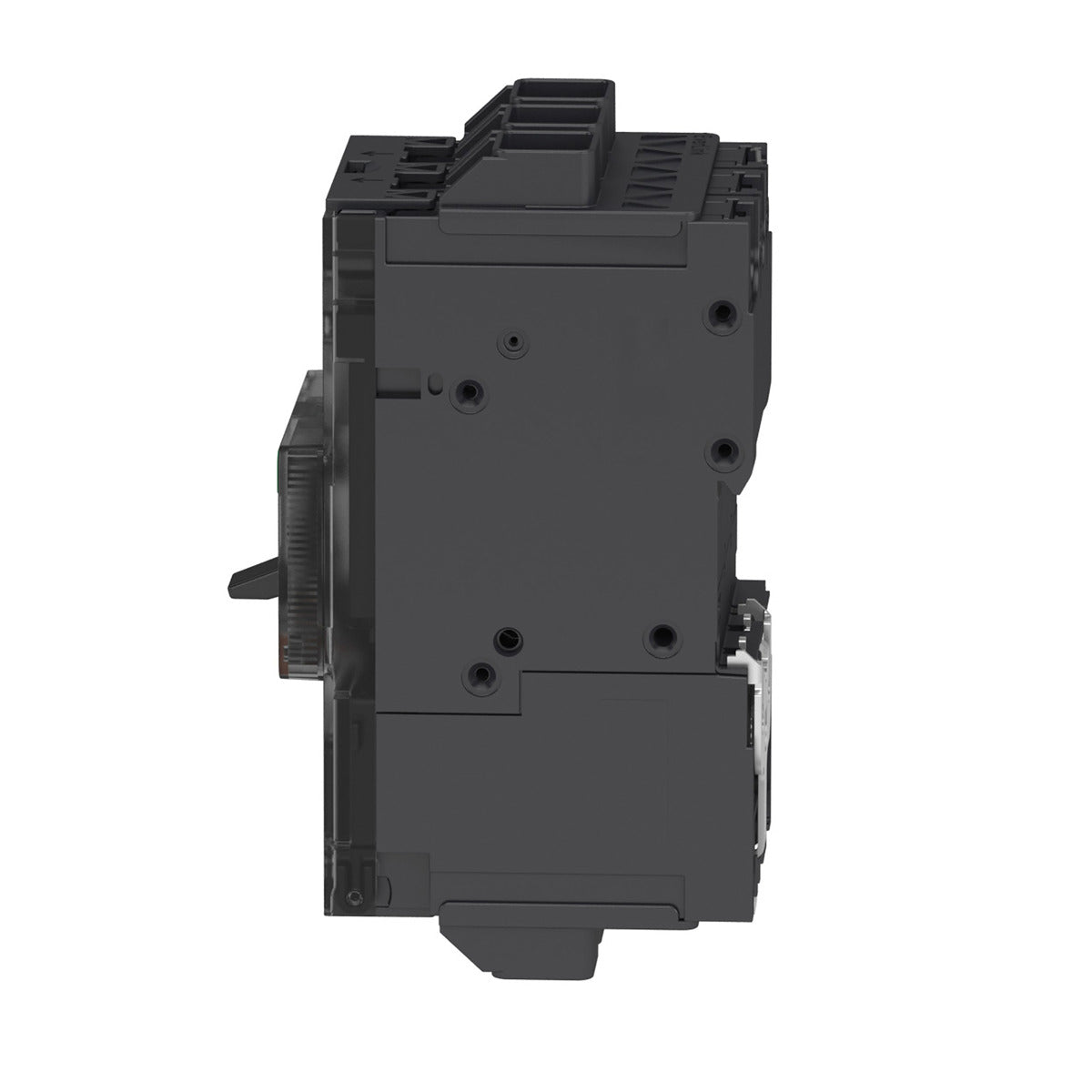

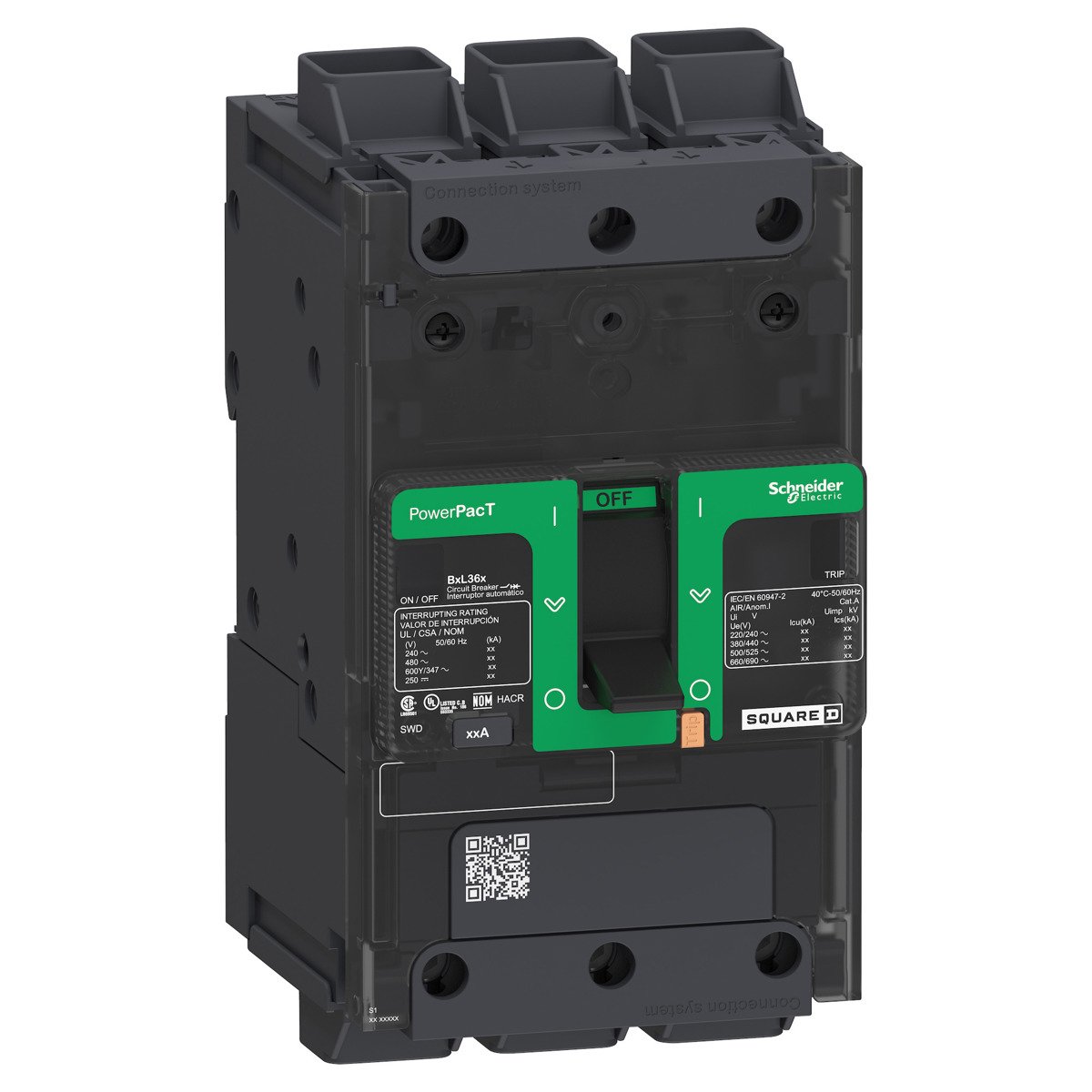

Schneider Electric BGL36090LU Circuit Breaker PowerPacT B 90A 3 Pole 600Y/347VAC 18kA

Product Description

The Schneider Electric BGL36090LU is a circuit breaker that provides essential thermal magnetic protection. It is designed for use in power distribution systems and features a breaking capacity of eighteen kiloamperes at six hundred volts line-to-line. This circuit breaker is built with a compact design, ensuring it occupies minimal space in electrical panels.

• Rated current of ninety amps
• Three-pole configuration for three-phase applications

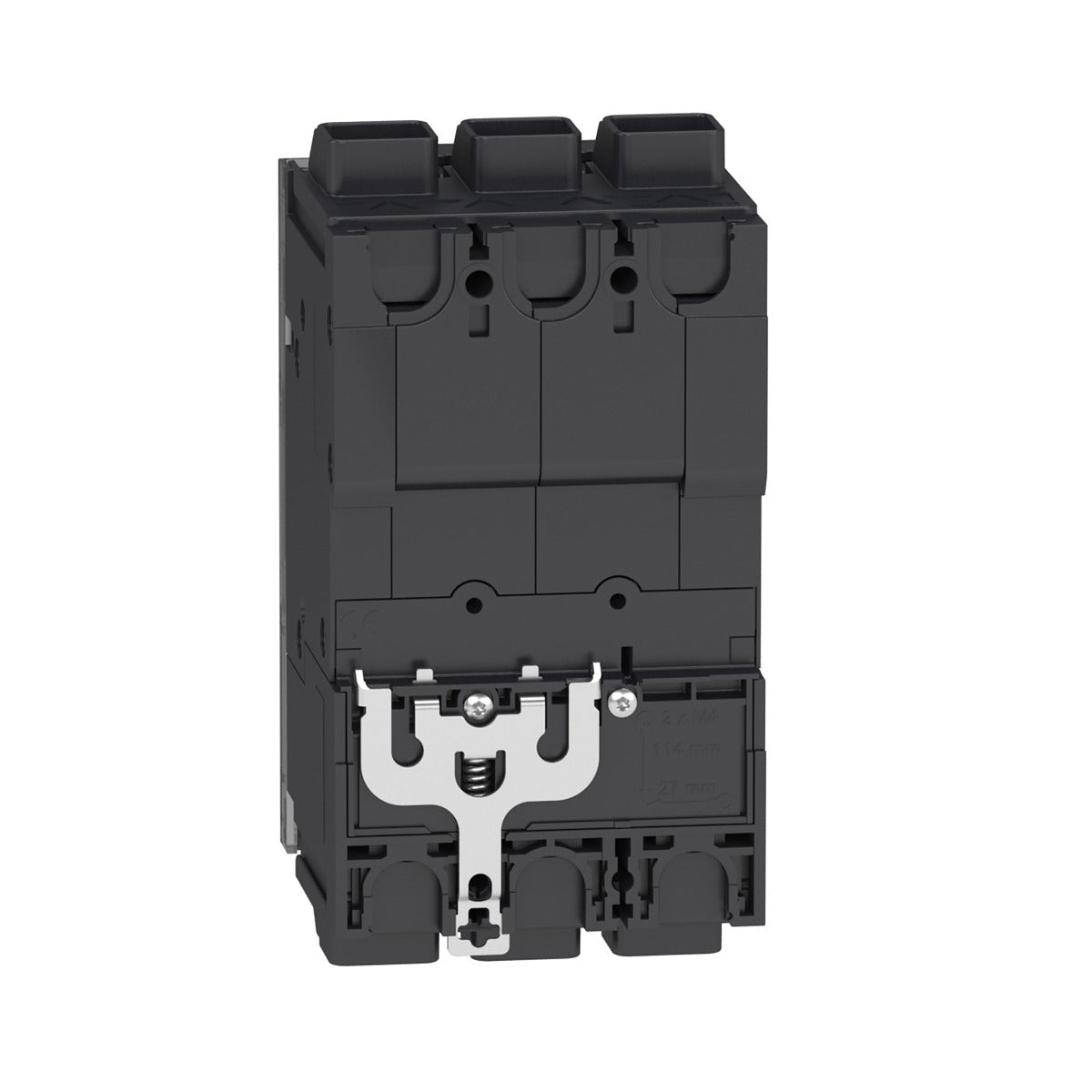

• Easily mounts on a DIN rail or back panel

Product Highlights

Designed for reliable operation, the BGL36090LU incorporates innovative features that enhance performance and ease of installation.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: BGL36090LU

Technical Specifications

• Voltage Rating: 600Y/347VAC
• Breaking Capacity: 18kA
• Continuous Current Rating: 80%
• Country of Origin: Mexico
• Compliance: UL, CSA, NOM, IEC
• Control Wire: Terminal on line end
• Manufacturer Part Number: BGL36090LU
• Installation Type: Unit mount with optional DIN rail
