Schneider Electric BGL36025 SQD Circuit breaker Power 25A 3 Pole 600Y/347VAC 18kA

Product Description

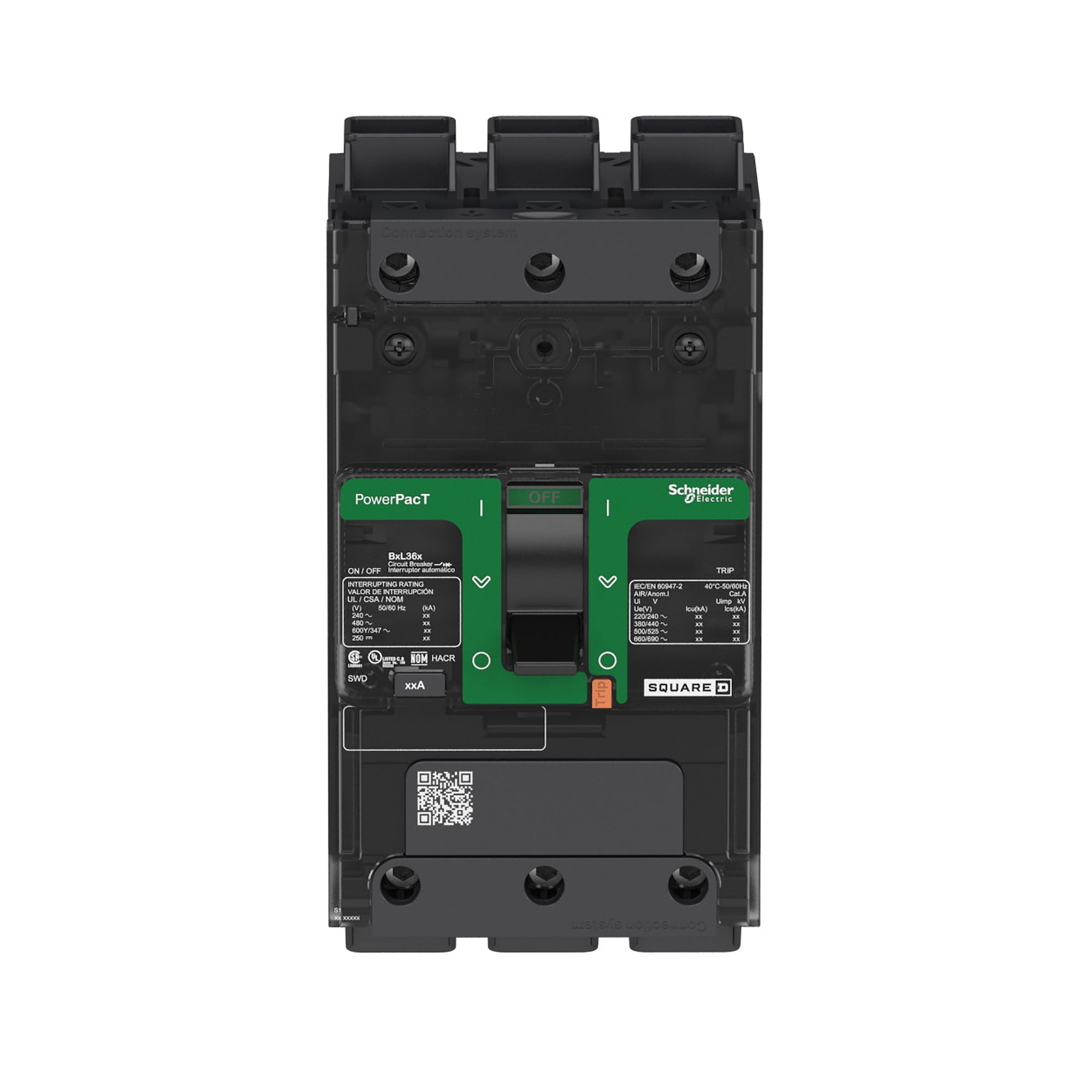

Schneider Electric BGL36025 is a PowerPacT B-Frame circuit breaker designed for effective thermal and mechanical protection. This circuit breaker has a breaking capacity of 18kA at 600Y/347VAC. The design includes dual-break rotating contacts for reduced peak current during faults. Users can manually trip the circuit breaker using an integral push-to-trip button located on the cover. This model includes flexible mounting options with a unit mount or I-Line construction. It also features EverLink lugs to minimize cable loosening over time.

• Breaking capacity of 18kA at 600Y/347VAC.
• Continuous current rating of 80%.
• Complies with UL, CSA, NOM, and IEC standards.

Product Highlights

This circuit breaker is well-suited for power distribution applications and offers various installation options.

Product Information

Standard Information

• Catalog Number: BGL36025
• Brand: Schneider Electric

Technical Specifications

• Voltage: 525 Volt
• Amperage: 25 Amp
• Number of Poles: 3 Pole
• Depth: 80 mm
• Width: 81 mm
• Height: 137 mm
• Weight: 2.37 lb
• Operating Temperature: -25 to 70 Degrees C
• Country of Origin: USA
