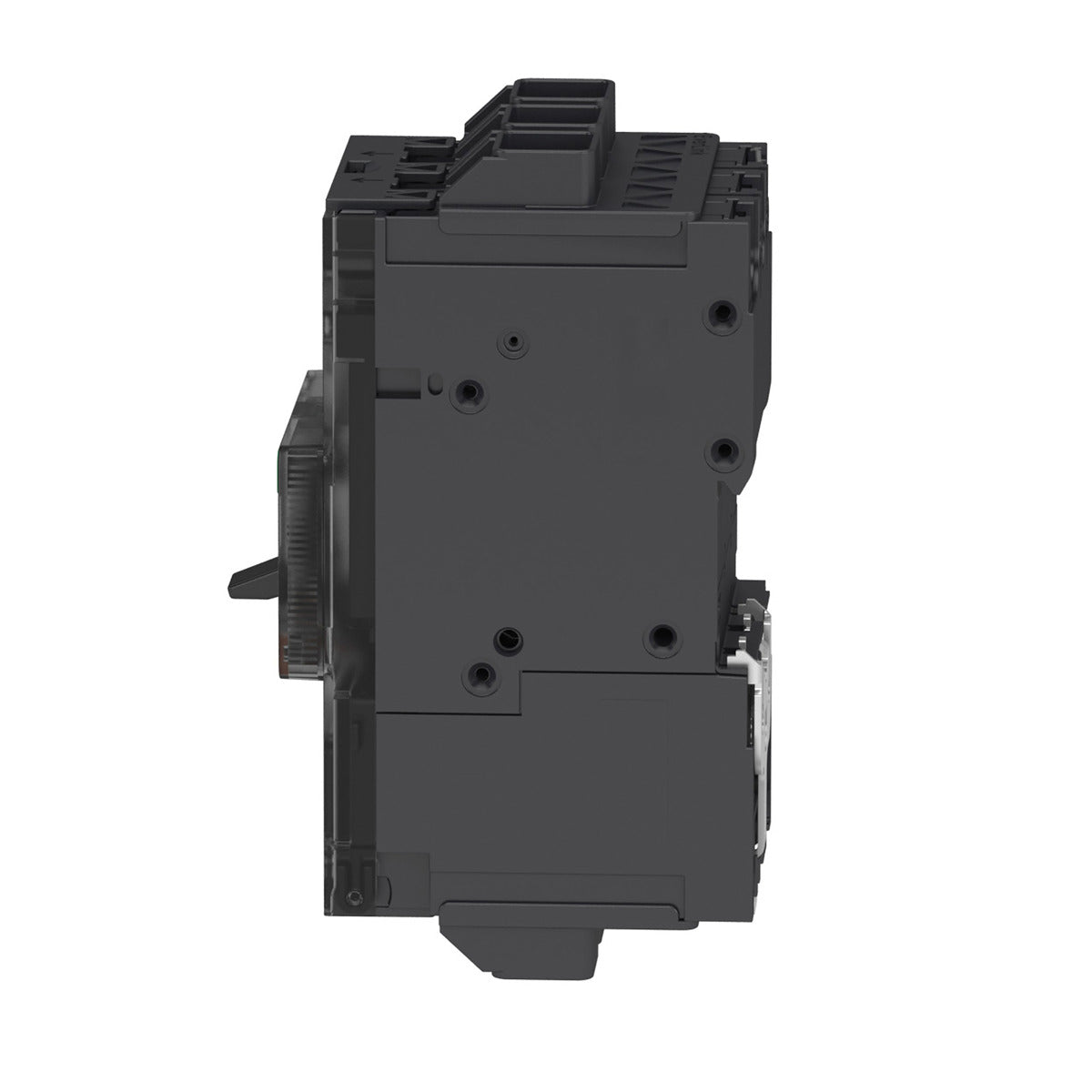

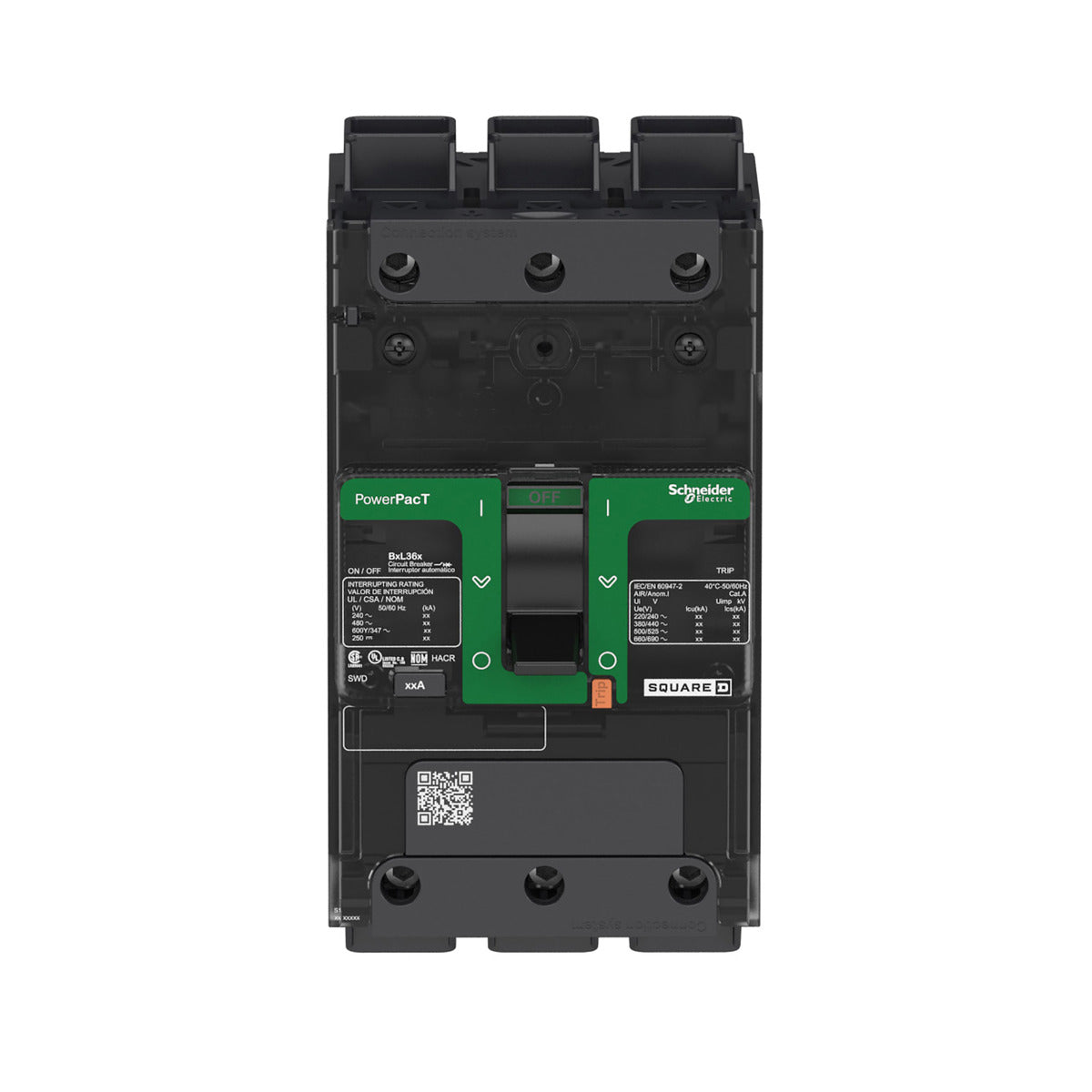

Schneider Electric BGL36015 Circuit Breaker, PowerPacT B, 15A, 3 Pole, 600Y/347VAC, 18kA

Product Description

The Schneider Electric BGL36015 is a PowerPacT B-Frame circuit breaker that provides reliable thermal-mechanical circuit protection. This compact breaker is suitable for various applications and includes a range of accessories and connection options. The BGL36015 model is designed for thermal magnetic circuit protection, with a breaking capacity of eighteen kiloamperes at six hundred volts Y and three hundred forty-seven volts alternating current. It features dual-break rotating contacts that minimize peak current during fault conditions, enhancing safety and efficiency.

• Thermal magnetic protection with an eighteen kiloamp breaking capacity.
• Compact unit mount design for flexible installation options.
• Incorporates EverLink lugs to prevent cable loosening over time.

Product Highlights

This circuit breaker is designed to meet UL, CSA, NOM, and IEC standards, ensuring compliance with key safety regulations.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: BGL36015
• Voltage: 525 Volt
• Amperage: 15 Amp
• Breaking Capacity: 18 kA at 600Y/347VAC
• Number of Poles: 3 Pole
• Dimensions: 80 mm Depth, 81 mm Width, 137 mm Height
• Weight: 2.37 lb
• Country of Origin: Mexico
