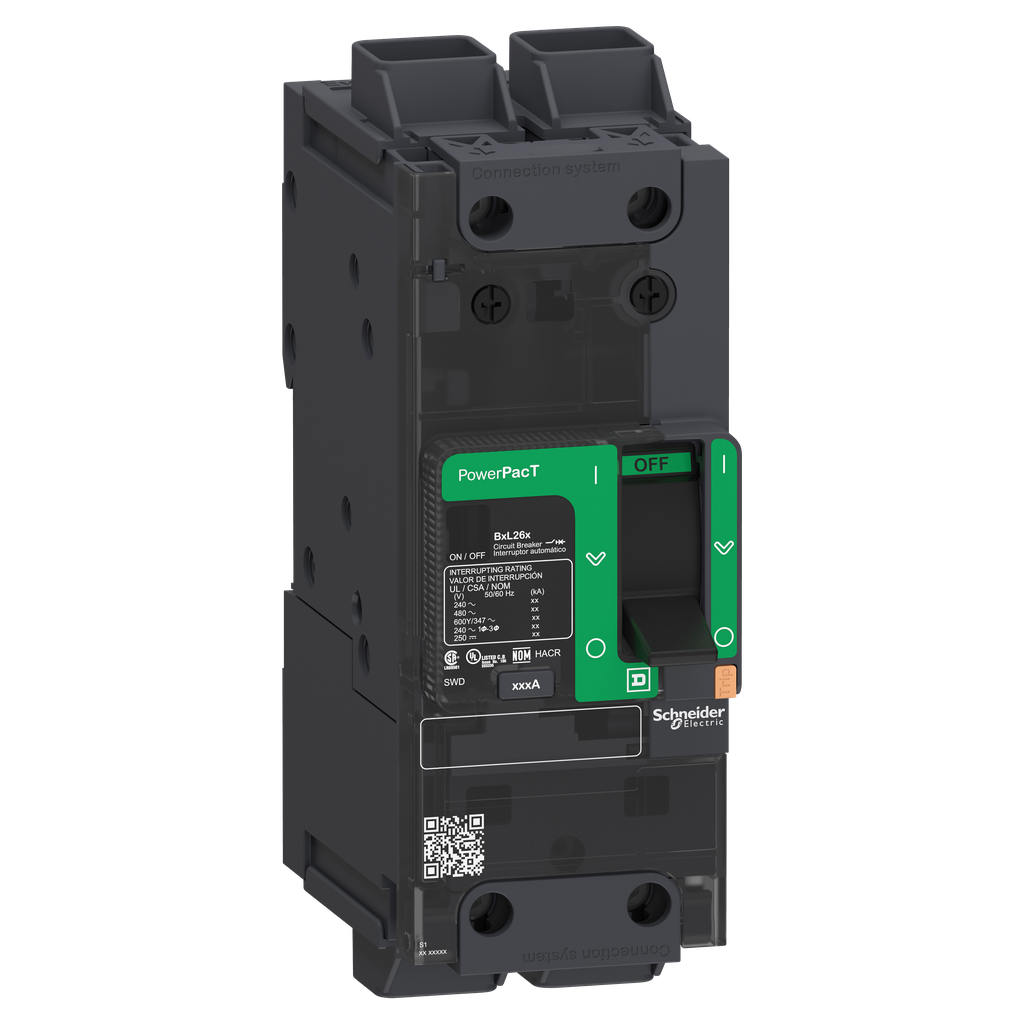

Schneider Electric BGL26125 Circuit Breaker Power 125A 2 Pole

Product Description

Schneider Electric BGL26125 is a PowerPacT B-Frame circuit breaker designed for thermal-mechanical circuit protection. It offers compact construction and a variety of connection options. This circuit breaker features thermal magnetic protection with a breaking capacity of 18kA at 600Y/347VAC.

• Dual-break rotating contacts to minimize peak current during faults.
• Integral push-to-trip button for manual operation.
• Meets UL, CSA, NOM, and IEC standards.

Product Highlights

This circuit breaker is effective for distribution applications and includes EverLink lugs for enhanced cable stability.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Type: Circuit Breaker
• Voltage: 525 Volt
• Amperage: 125 Amp
• Number of Poles: 2 Pole
• Breaking Capacity: 18kA at 600Y/347VAC
• Depth: 80 mm
• Width: 54 mm
• Height: 137 mm
