Schneider Electric BGL26100 SQD Circuit Breaker Power 100A 2 Pole Replacement MPN

Product Description

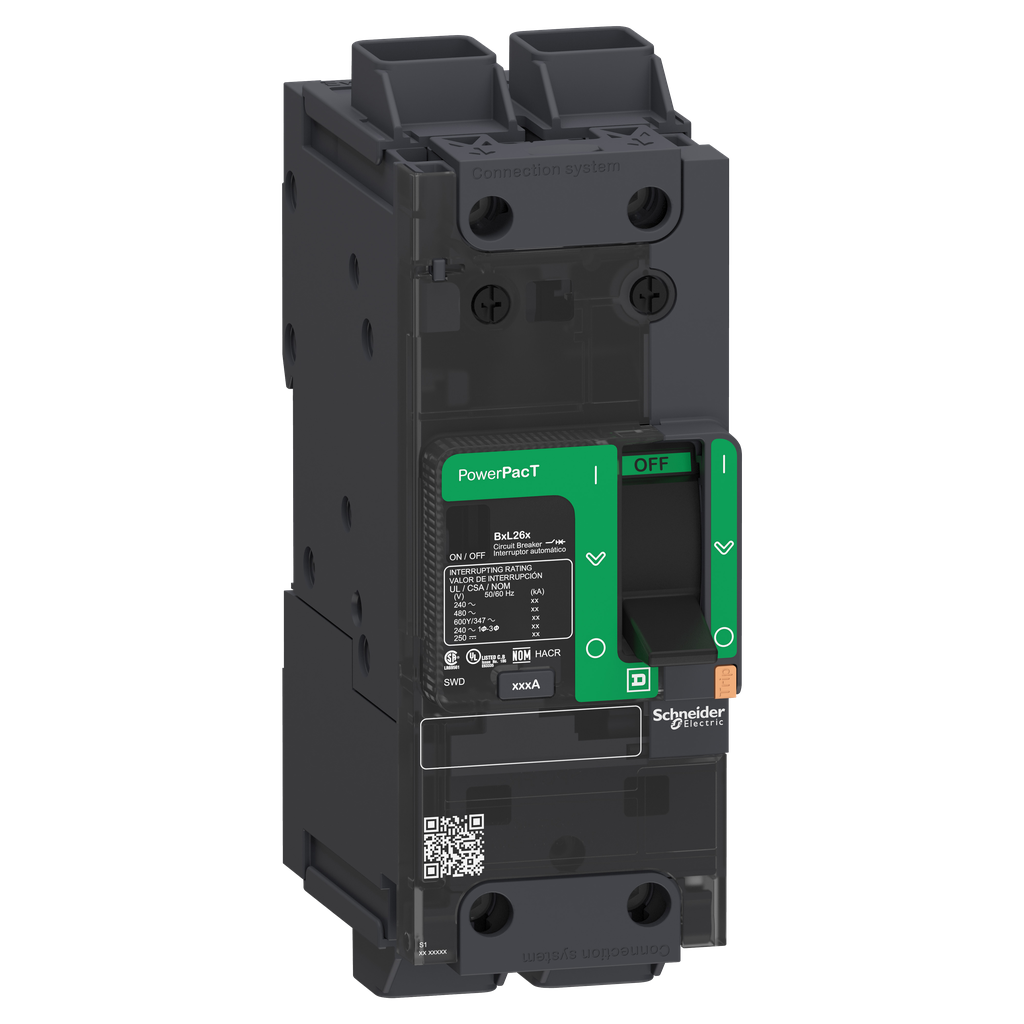

Schneider Electric BGL26100 is a PowerPacT B-Frame circuit breaker designed for thermal-mechanical circuit protection. It has a breaking capacity of 18kA at 600Y/347VAC and features several accessories and connection options. The dual-break rotating contacts help reduce peak current during short circuit faults. This circuit breaker includes a push-to-trip button that allows for manual tripping. The construction supports both unit mount and I-Line designs, providing flexibility for installation.

• 100 Amperes continuous current rating
• Complies with UL and CSA standards
• Integrated DIN rail mounting for easy installation

Product Highlights

The BGL26100 circuit breaker is suitable for various applications within distribution systems. It ensures durability and compliance with industry standards, making it a reliable choice for electricians and engineers.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: United States

Technical Specifications

• Catalog Number: BGL26100
• Voltage: 525 Volt
• Amperage: 100 Amp
• Trip Type: Thermal-Magnetic
• Number of Poles: 2 Pole
• Weight: 1.70 lb
• Width: 54 mm
• Height: 137 mm
• Depth: 80 mm
