Schneider Electric BDL36070 Circuit Breaker PowerPacT B-70A 3 Pole 600Y/347VAC 14kA

Product Description

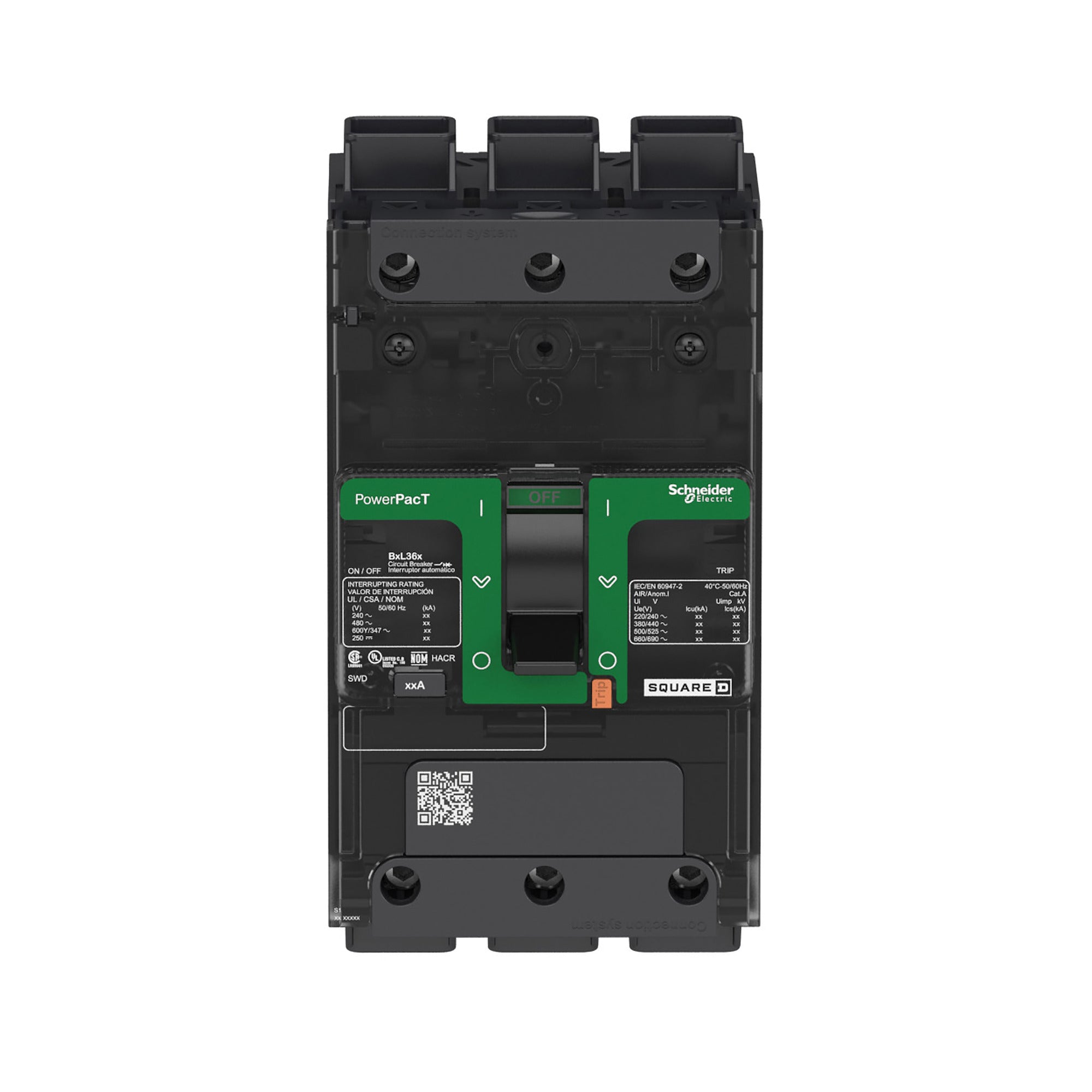

The Schneider Electric BDL36070 is a PowerPacT B-Frame circuit breaker offering thermal-mechanical circuit protection. It features a breaking capacity of 14kA at 600Y/347VAC, making it suitable for various applications. The breaker is equipped with dual-break rotating contacts to minimize peak current during faults. For added safety, it includes a push-to-trip button for manual operation.

• Thermal magnetic circuit protection with breaking capacity of 14kA
• Complies with UL, CSA, NOM, and IEC standards
• Available in 1 to 4-pole unit mount and 1 to 3-pole I-Line constructions

Product Highlights

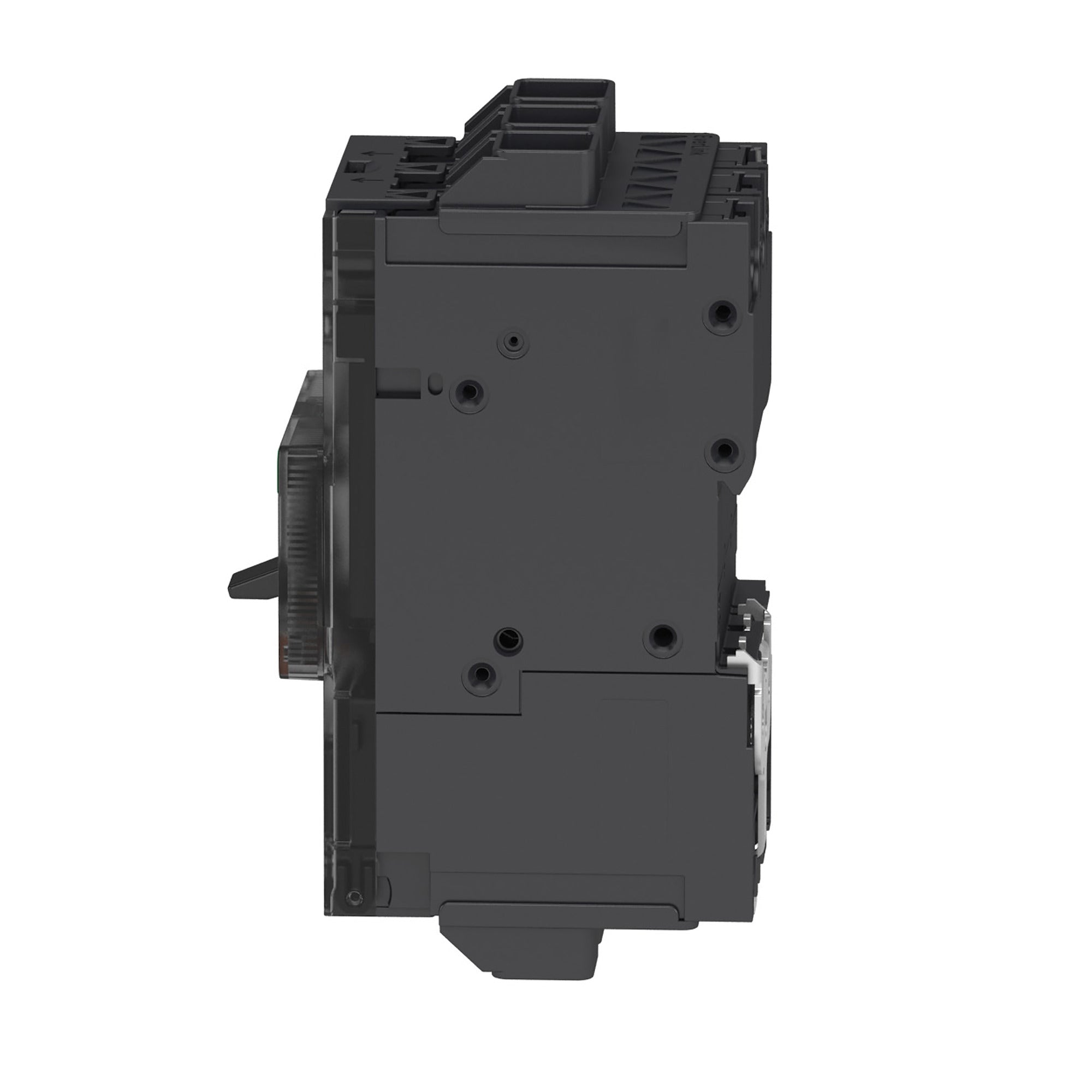

The PowerPacT B-Frame circuit breaker is designed for installation flexibility. It can be mounted using traditional screws or a DIN rail. With EverLink lugs at both termination ends, it reduces cable loosening over time.

Product Information

Standard Information

• Brand: Schneider Electric
• Product ID: 1437798

Technical Specifications

• Catalog Number: BDL36070
• Number of Poles: 3 Pole
• Voltage: 525 Volt
• Amperage: 70 Amp
• Breaking Capacity: 14kA
• Weight: 2.37 lb
• Country of Origin: Mexico
• Standards Complied: UL, CSA, NOM, IEC
