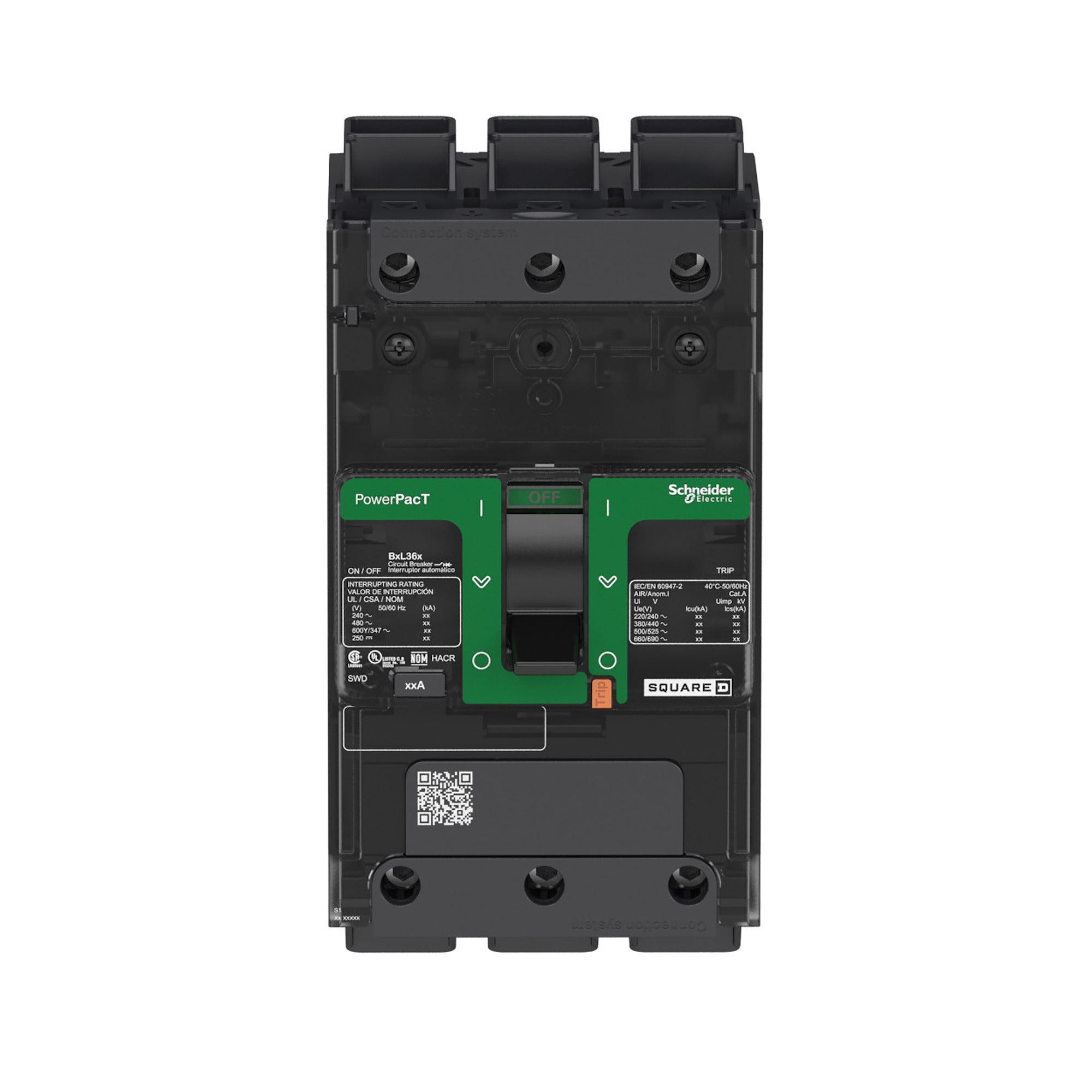

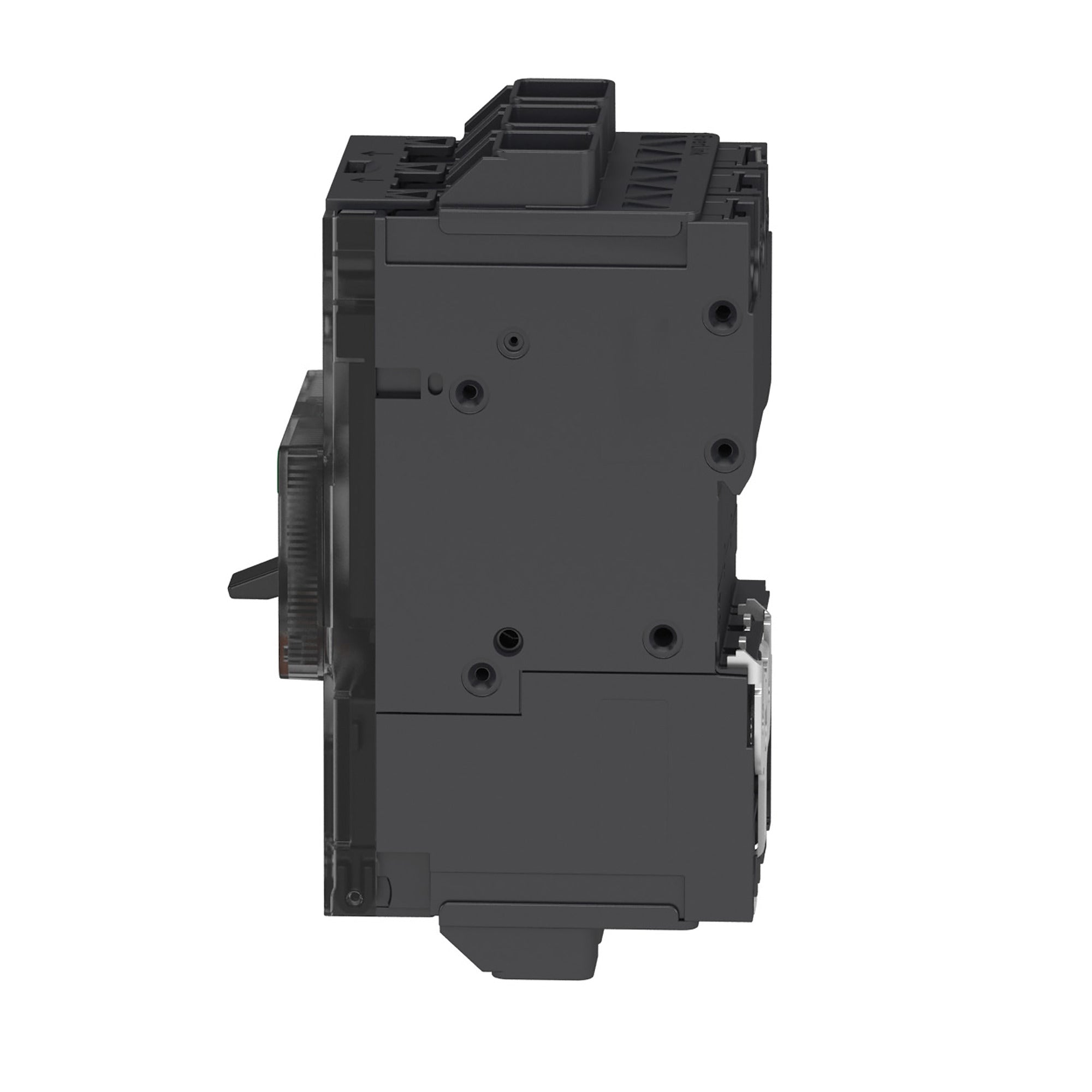

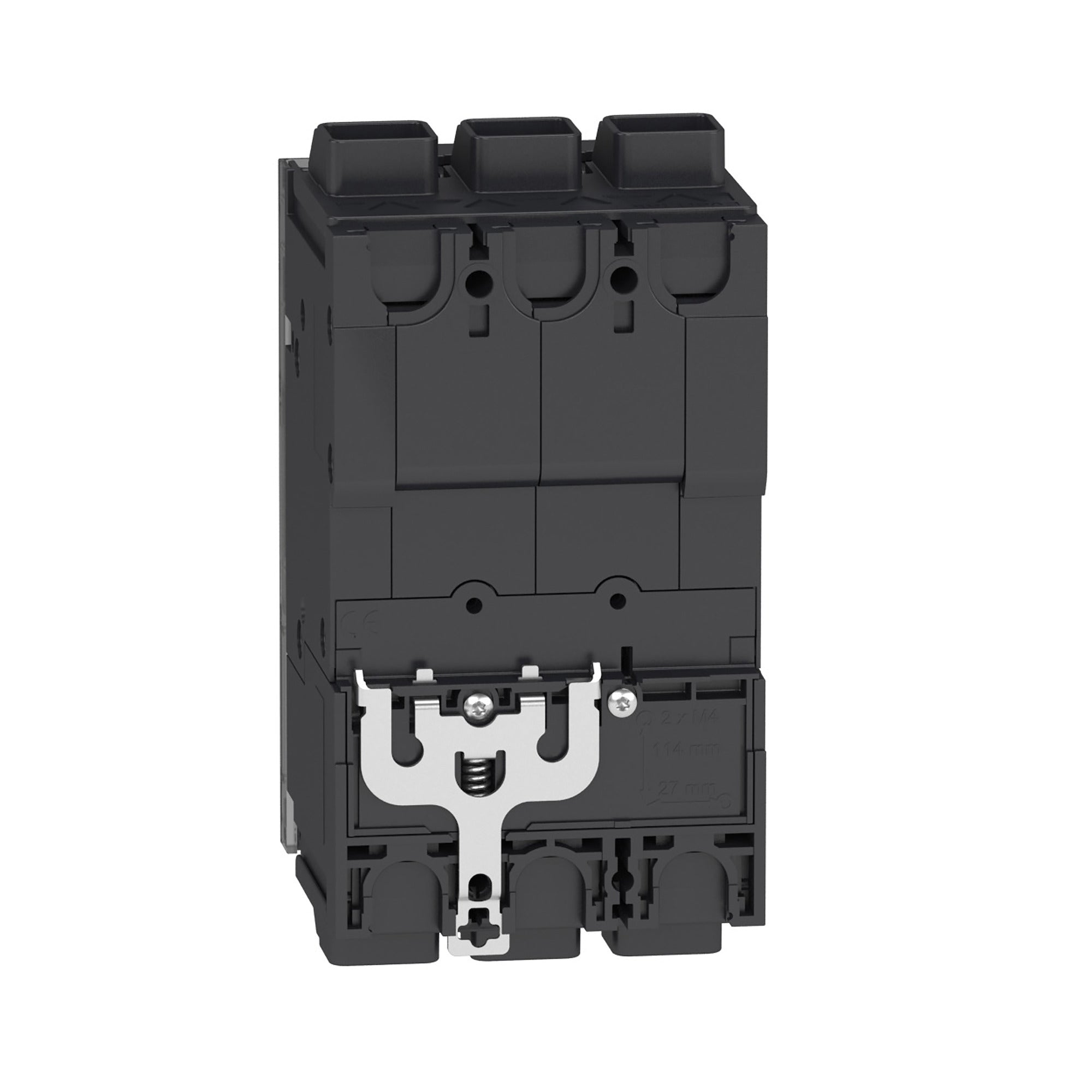

Schneider Electric BDL36025 Circuit Breaker, PowerPacT B, 25A, 3 Pole, 600Y/347VAC, 14kA

Product Description

Schneider Electric BDL36025 is a circuit breaker designed for thermal and mechanical protection. The PowerPacT B-Frame offers a compact design and extensive accessory options. This circuit breaker features thermal magnetic protection with a breaking capacity of fourteen kA at six hundred Y/three hundred forty-seven VAC. It is equipped with dual-break rotating contacts that minimize peak current during faults. Additionally, it has a push-to-trip button for manual operation.

• Thermal magnetic protection with a breaking capacity of fourteen kA
• Compact design for flexible installation options
• Equipped with EverLink lugs to prevent cable loosening

Product Highlights

This circuit breaker meets standard safety compliance across various guidelines including UL, CSA, and IEC. It also comes with one to four pole mounting options, allowing for enhanced installation flexibility.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: BDL36025

Technical Specifications

• Voltage: 525 Volt
• Amperage: 25 Amp
• Breaking Capacity: 14 kA
• Number of Poles: 3 Pole
• Certifications: UL, CSA, NOM, IEC
• Weight: 1.074 kg
• Country of Origin: Mexico
• Storage Temperature: -50 to 85 degrees C
