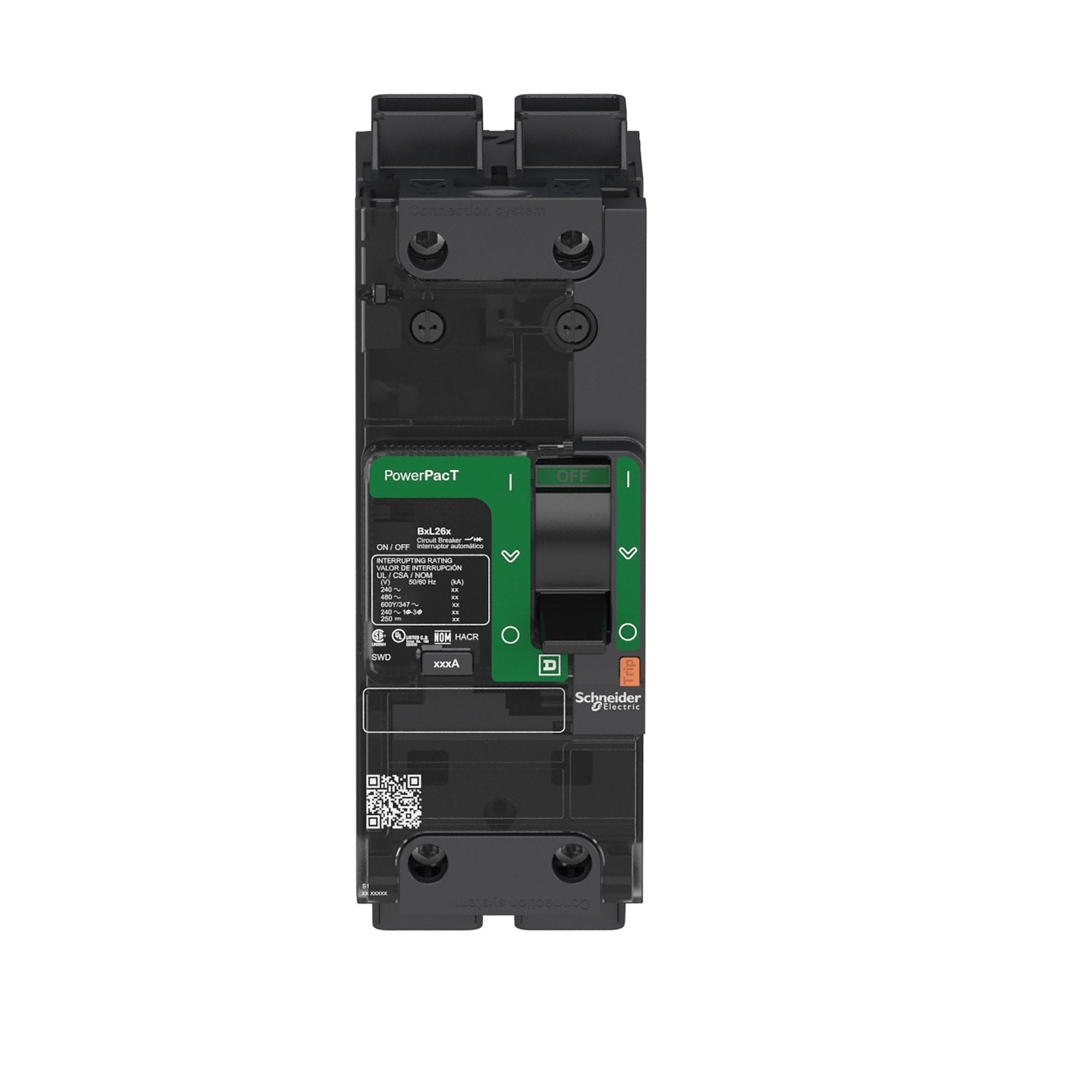

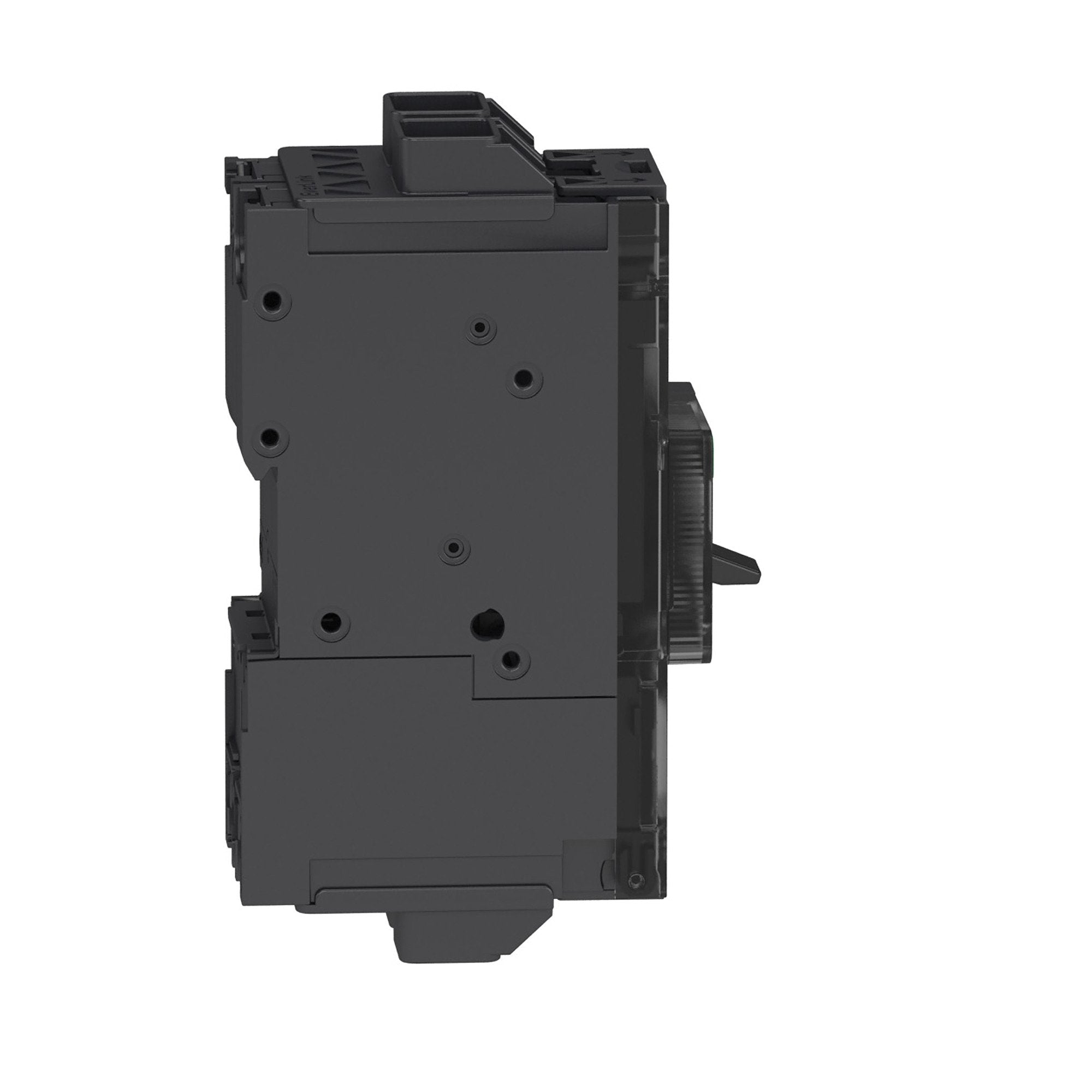

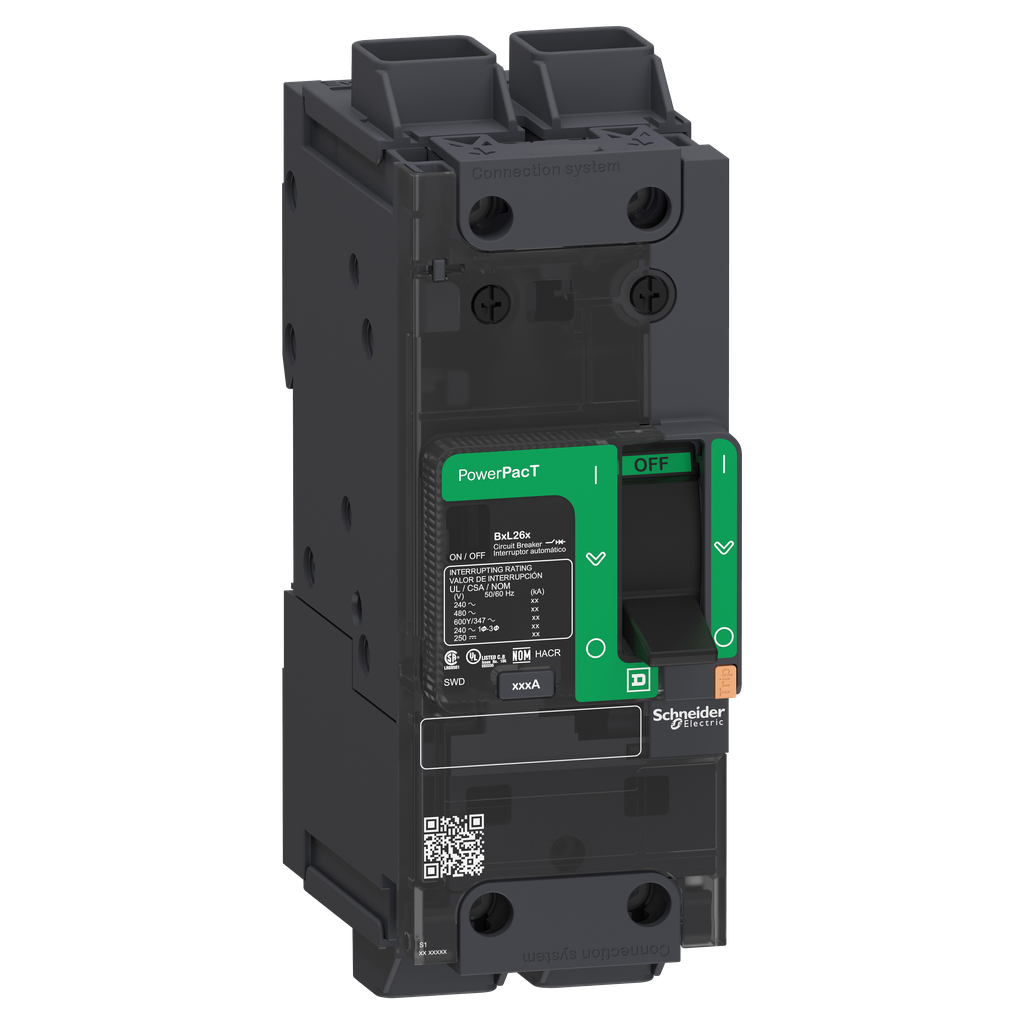

Schneider Electric BDL26100 Circuit Breaker, PowerPacT B, 100A, 2 Pole, 600Y/347VAC, 14kA

Product Description

The Schneider Electric BDL26100 is a thermal-magnetic circuit breaker designed for compact durability and protection. This circuit breaker delivers a breaking capacity of fourteen kA at six hundred Y/three hundred forty-seven VAC. Equipped with dual-break rotating contacts, this breaker minimizes peak current during short circuit faults. The unit features a push-to-trip button for manual operation. Its mounting options include both traditional back pan and integrated DIN rail for flexible installation. The BDL26100 comes with EverLink lugs that prevent cable loosening over time. This model supports continuous current ratings of eighty percent, ensuring reliable performance. Compliance with UL, CSA, NOM, and IEC standards assures its safety and effectiveness in electrical applications.

• Breaking capacity of fourteen kA.
• Includes dual-break rotating contacts.
• Features manual push-to-trip button.

Product Highlights

This circuit breaker is ideal for low voltage power distribution and protection, making it suitable for various commercial and industrial applications.

Product Information

Standard Information

• Catalog Number: BDL26100
• Brand: Schneider Electric

Technical Specifications

• Voltage: 525 Volt
• Amperage: 100 Amp
• Number of Poles: 2 Pole
• Continuous Current Rating: 80%
• Country of Origin: Mexico
• Weight: 1.70 lb
• Mounting Type: By Screw Plate, Clip-on DIN Rail
• Standards Compliance: UL, CSA, NOM, IEC
