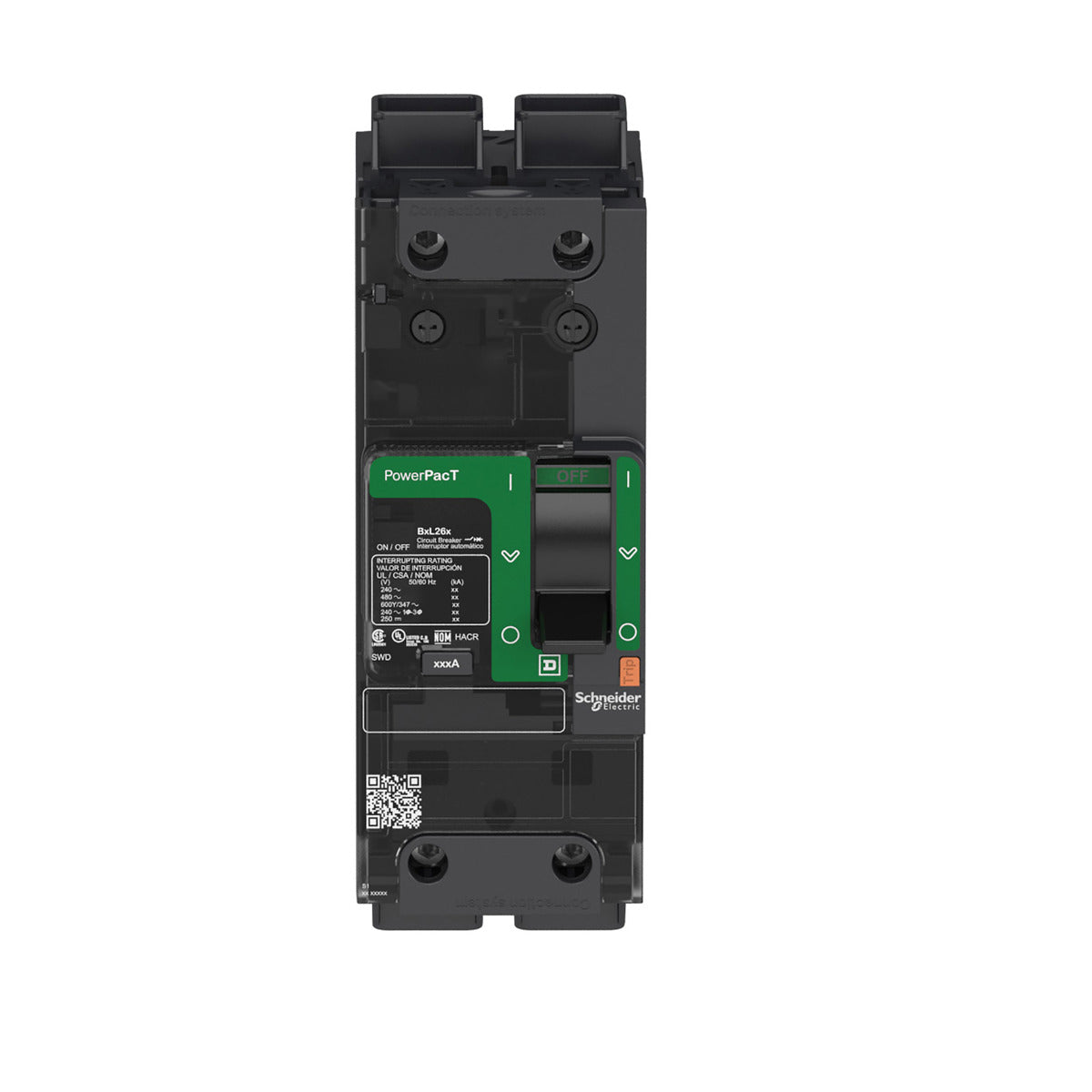

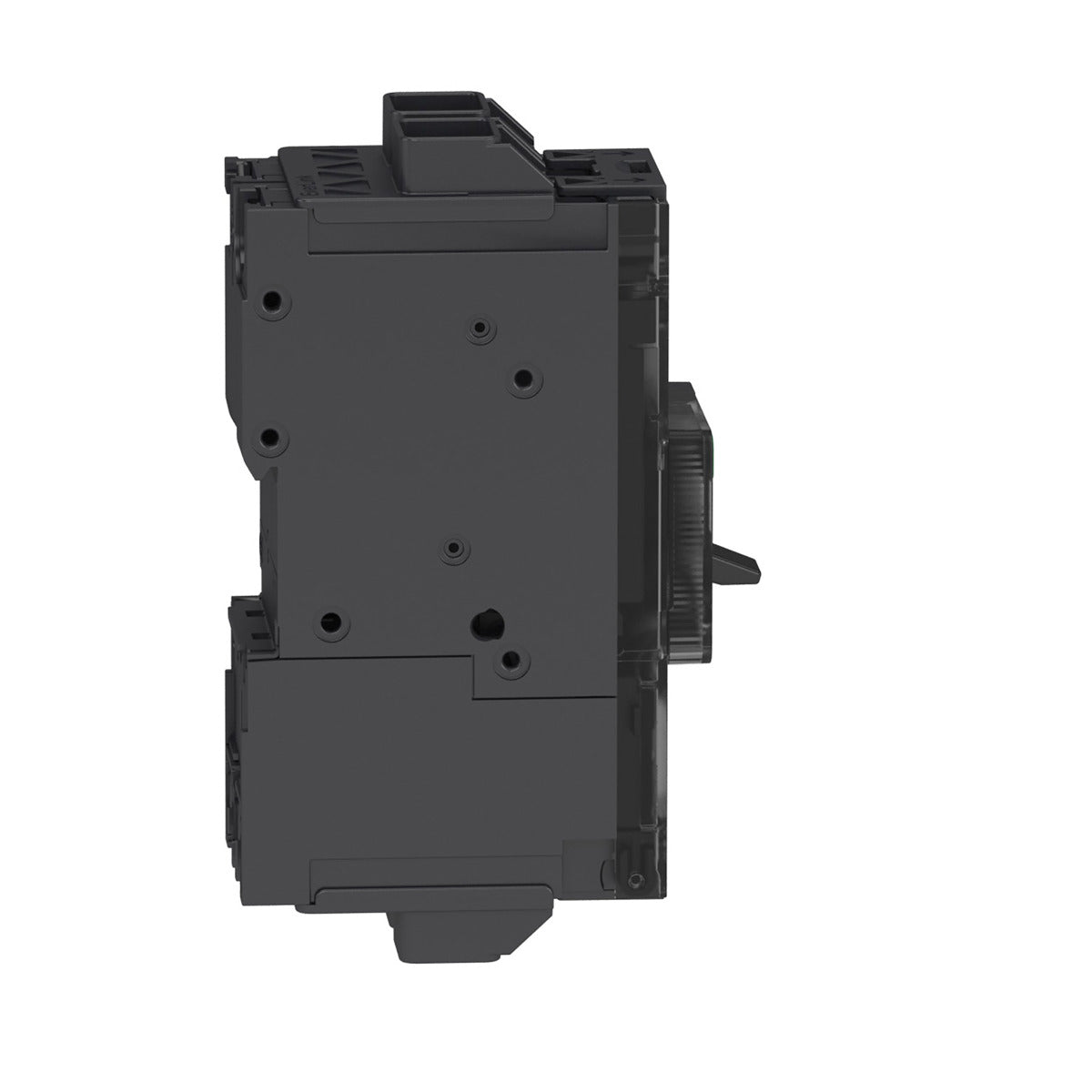

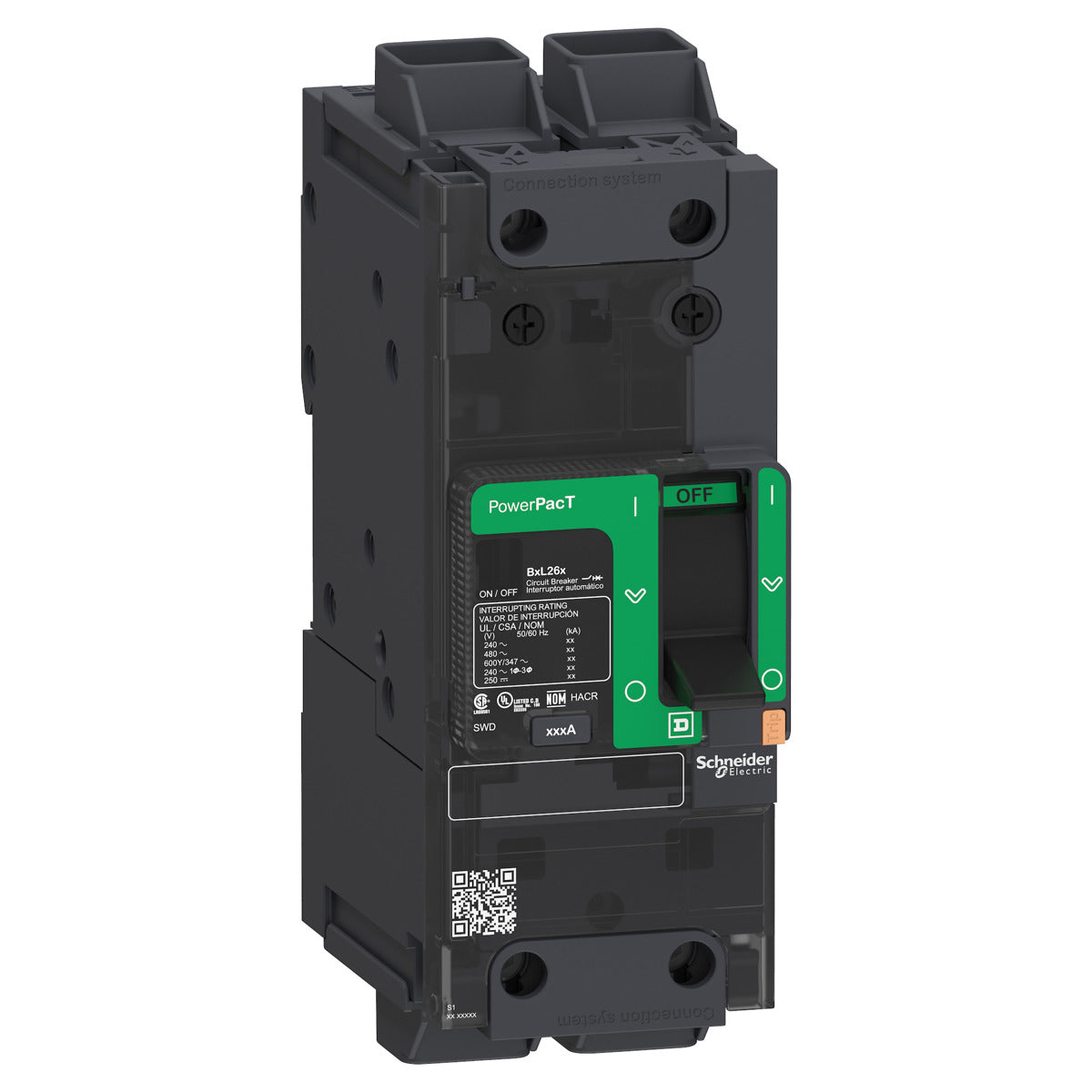

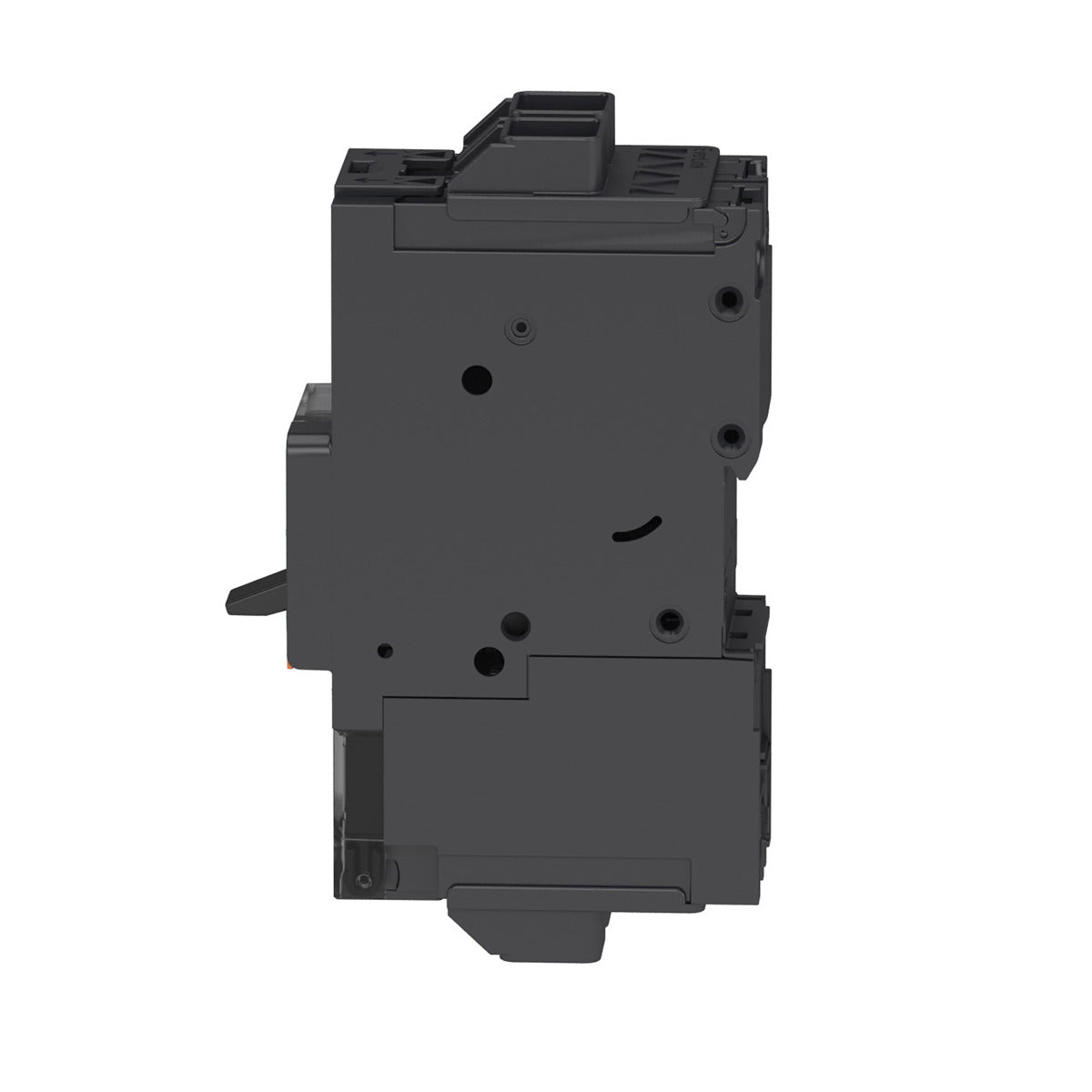

Schneider Electric BDL26070 Circuit Breaker, PowerPacT B, 70A, 2 Pole, 600Y/347VAC, 14kA

Product Description

The Schneider Electric BDL26070 is a PowerPacT B-Frame circuit breaker designed to provide reliable thermal-mechanical protection. This circuit breaker operates with a breaking capacity of 14kA at 600Y/347VAC. It features dual-break rotating contacts that minimize peak current during short circuit events.

• Two-pole construction with a continuous current rating of 80%
• Equipped with EverLink lugs to prevent loosening over time
• Meets various standards including UL, CSA, and IEC for safety and reliability

Product Highlights

This circuit breaker supports installation flexibility with traditional back pan mounting or integrated DIN rail mounting options.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: BDL26070
• Amperage: 70 Amp
• Voltage: 525 Volt
• Weight: 1.70 lb
• Dimensions: 80 mm (Depth) x 54 mm (Width) x 137 mm (Height)
• Number of Poles: 2 Pole
• Country of Origin: Mexico
• Certifications: UL, CSA, IEC
