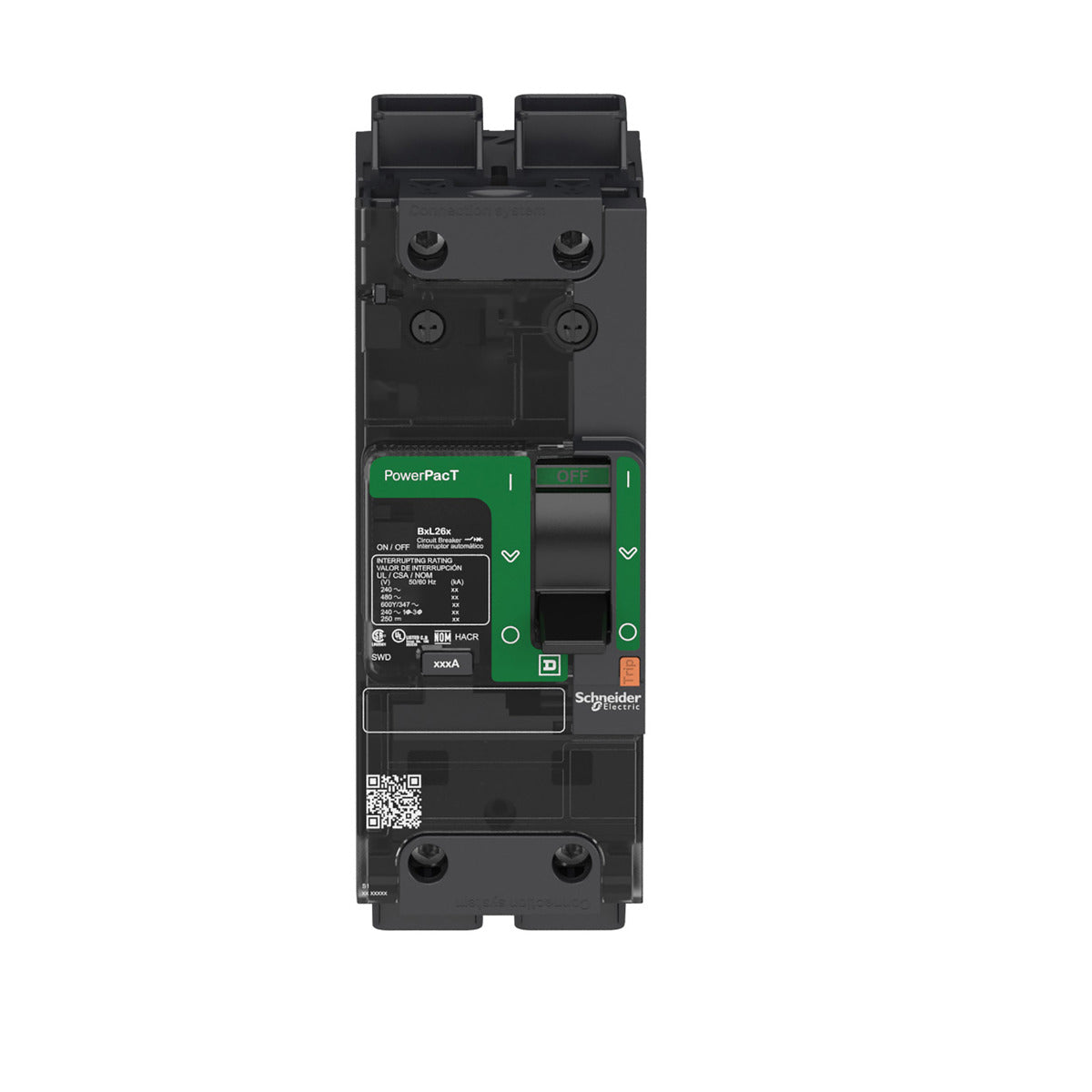

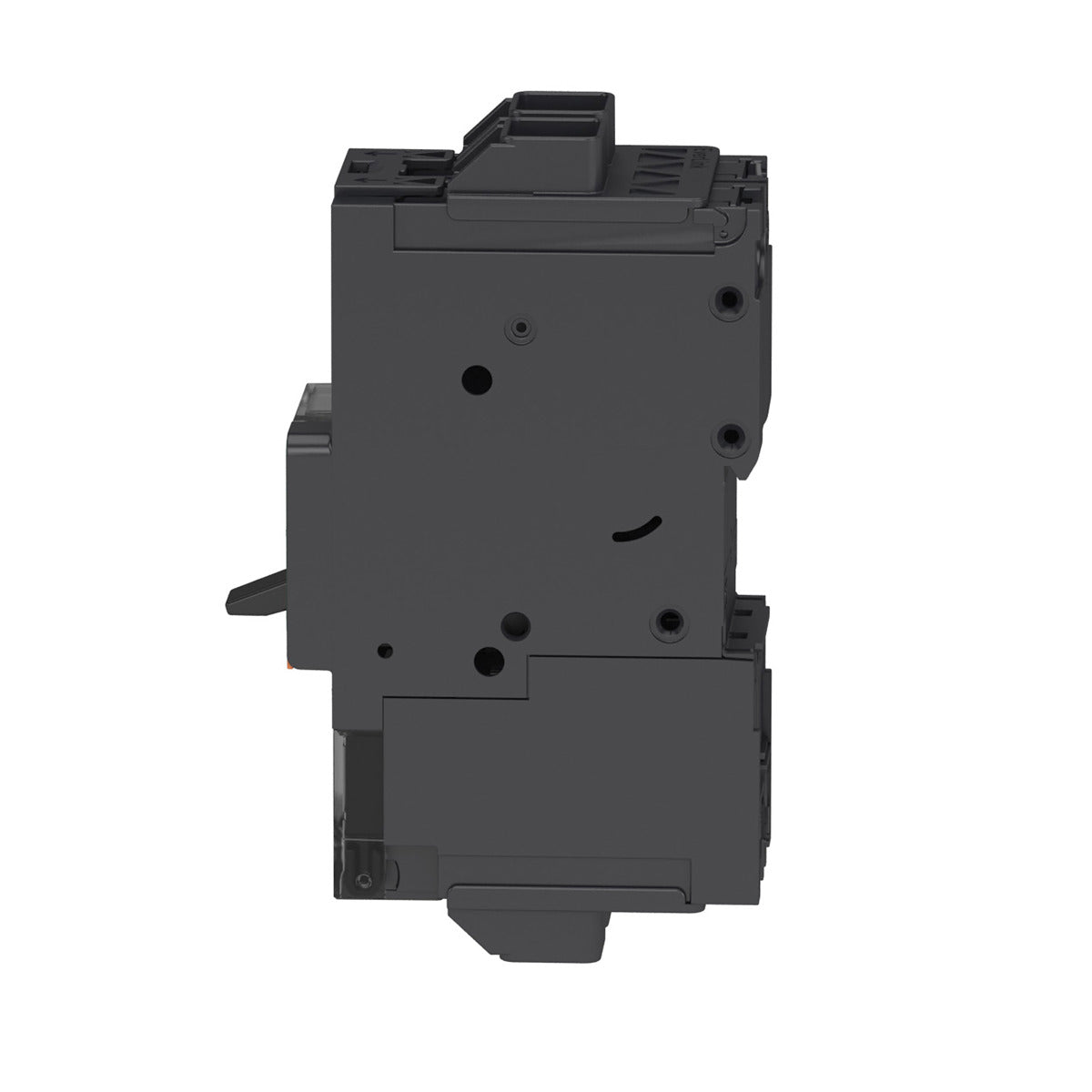

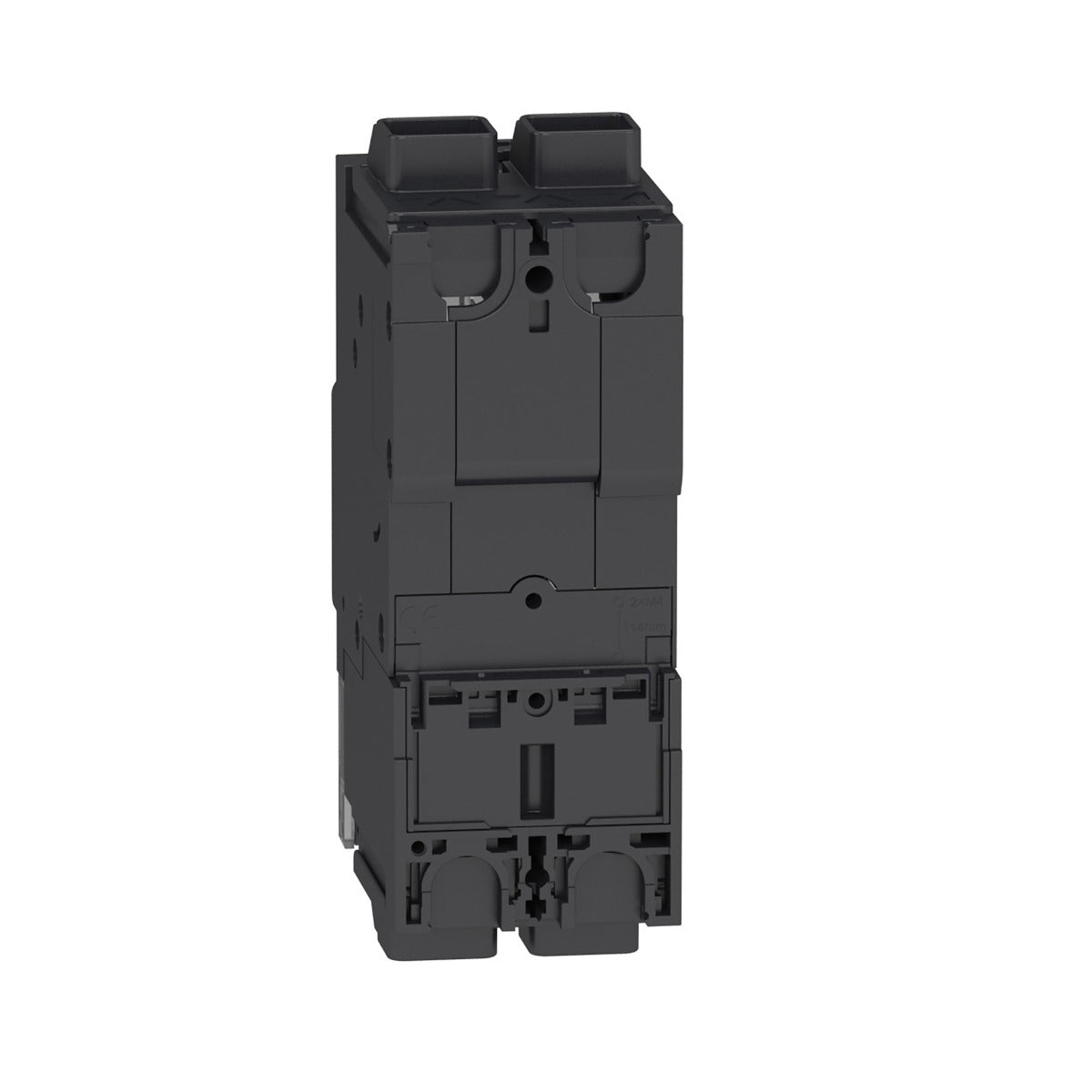

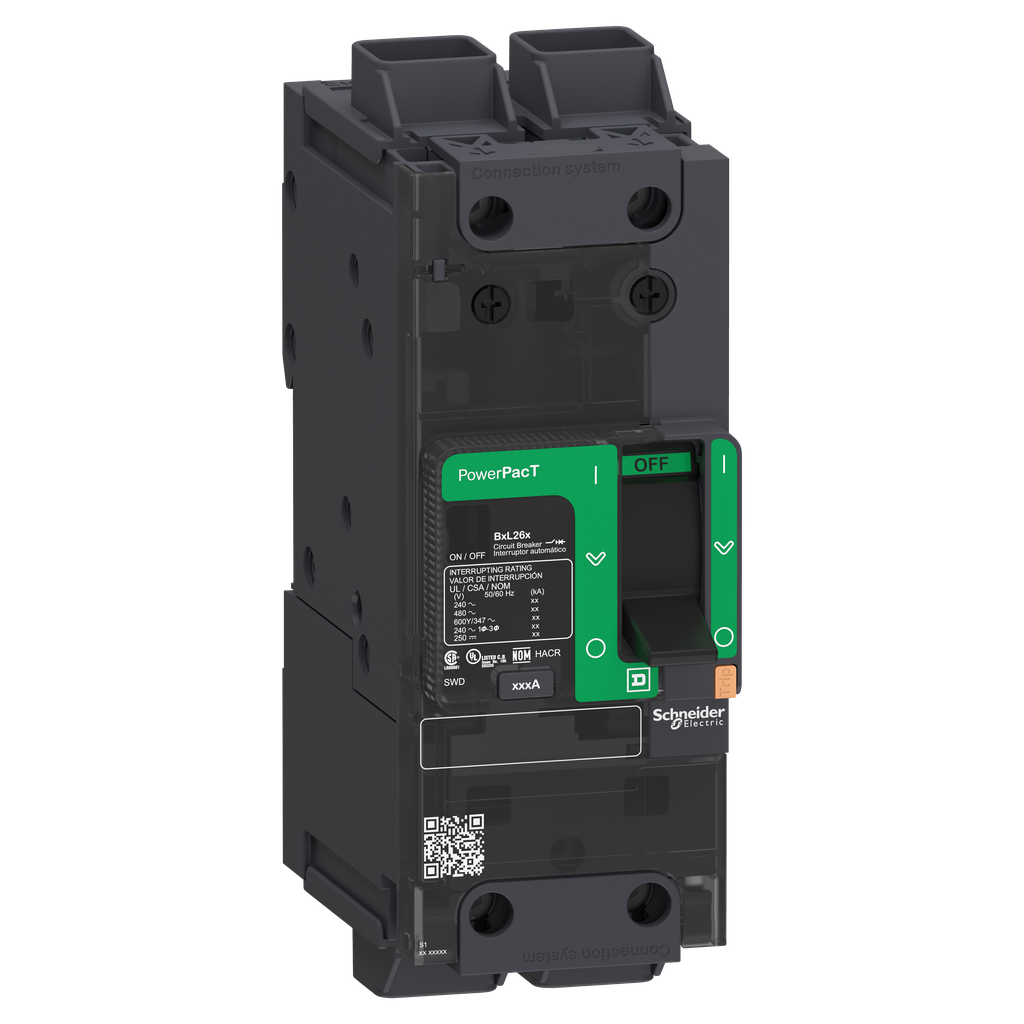

Schneider Electric BDL26060 Circuit Breaker PowerPacT B 60A 2 Pole 600Y/347VAC 14kA

Product Description

The Schneider Electric BDL26060 Circuit Breaker is a PowerPacT B-Frame breaker designed for thermal-mechanical circuit protection in a compact form. It features thermal magnetic circuit protection with a breaking capacity of 14kA at 600Y/347VAC. The breaker includes dual-break rotating contacts that minimize peak current during short circuit conditions. It also has a push-to-trip button for manual tripping.

• 60 Amp continuous current rating
• Compliant with UL, CSA, NOM, and IEC standards
• Designed for secure mounting with EverLink lugs

Product Highlights

This circuit breaker provides reliable protection and installation flexibility with options for unit mount and I-Line construction.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: BDL26060
• Voltage: 525 Volt
• Amperage: 60 Amp
• Weight: 1.70 lb
• Dimensions: 20 mm x 54 mm x 137 mm
• Number of Poles: 2 Pole
• Storage Temperature: -50 to 85 degrees C
• Certifications: CCC, CSA, EAC, IEC, NOM, UL
