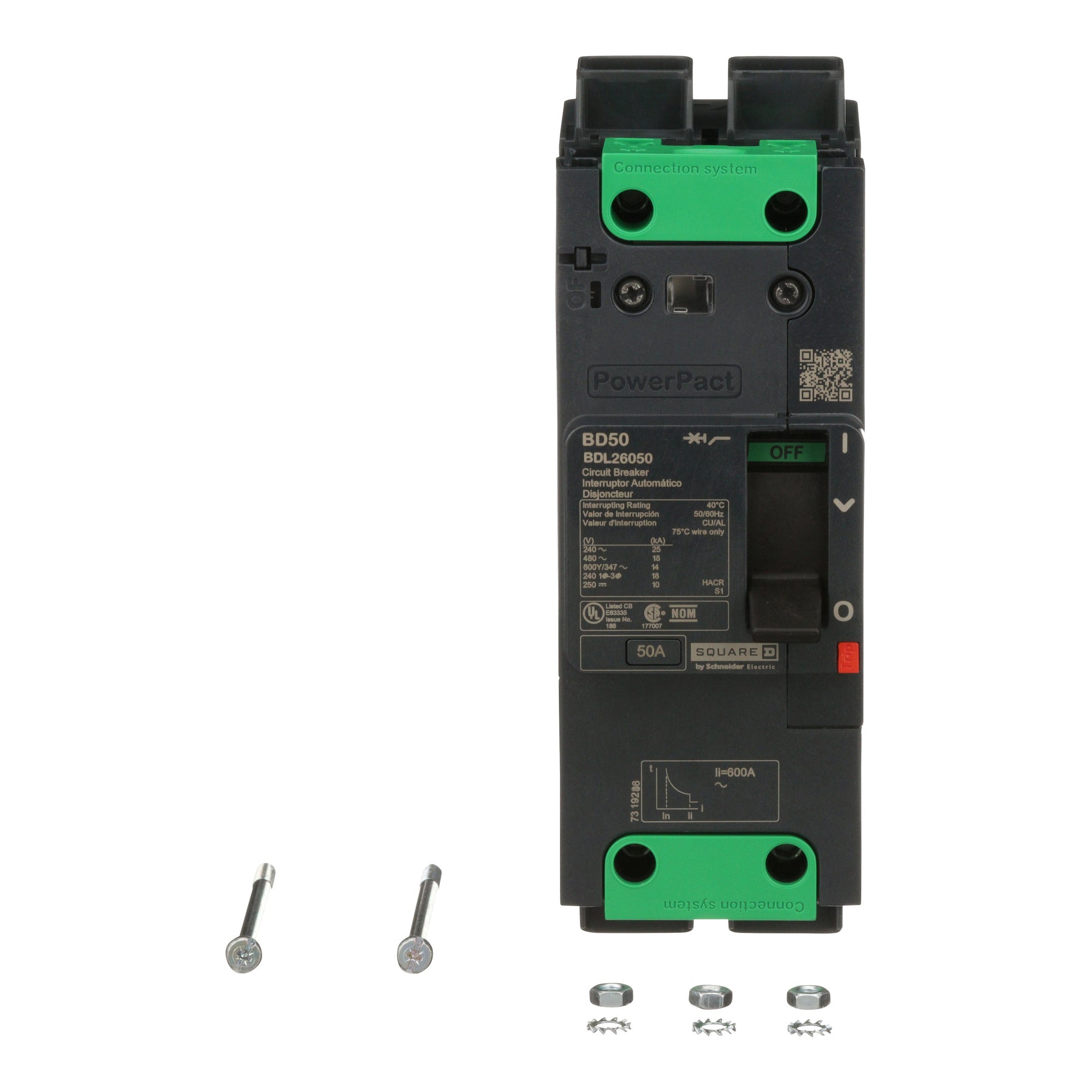

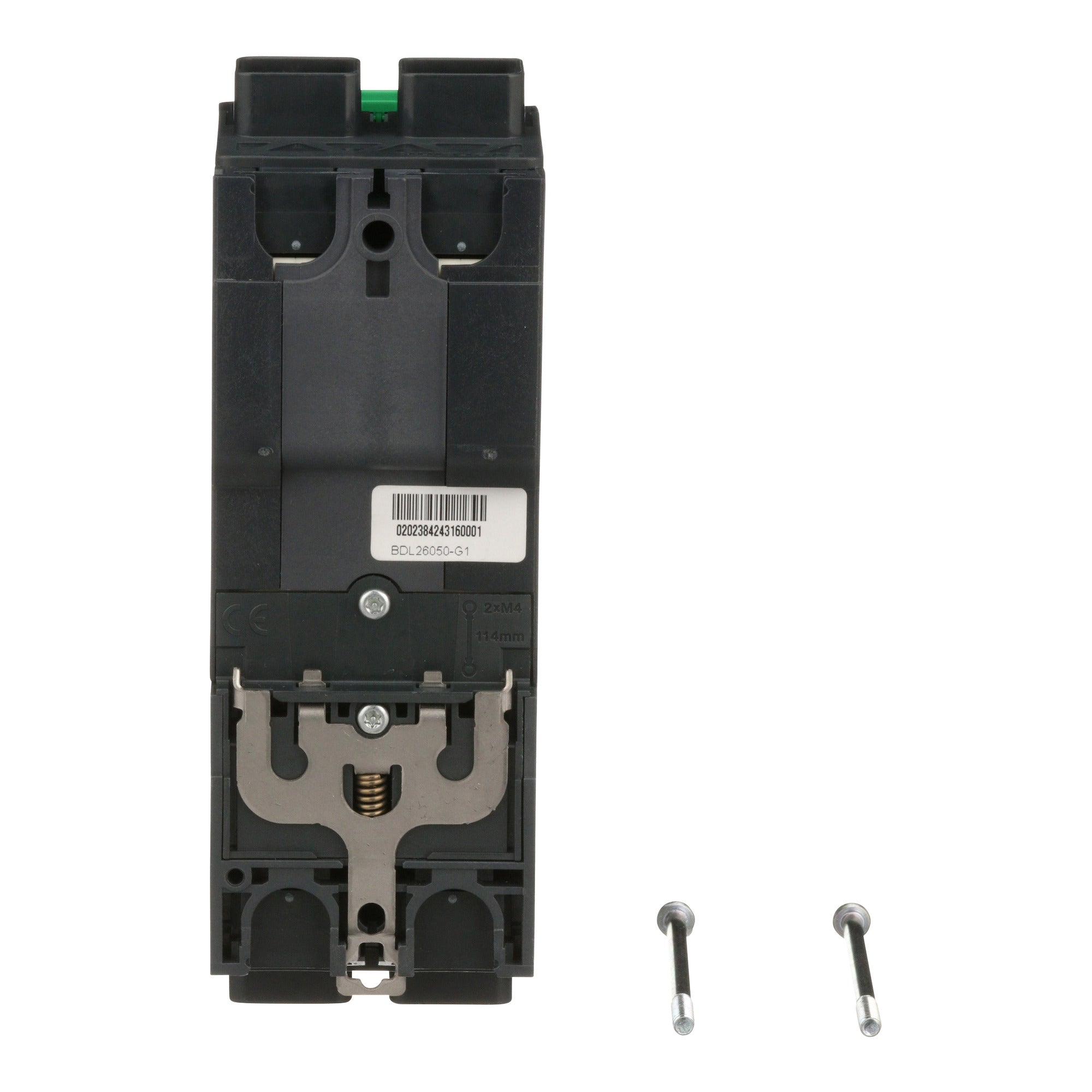

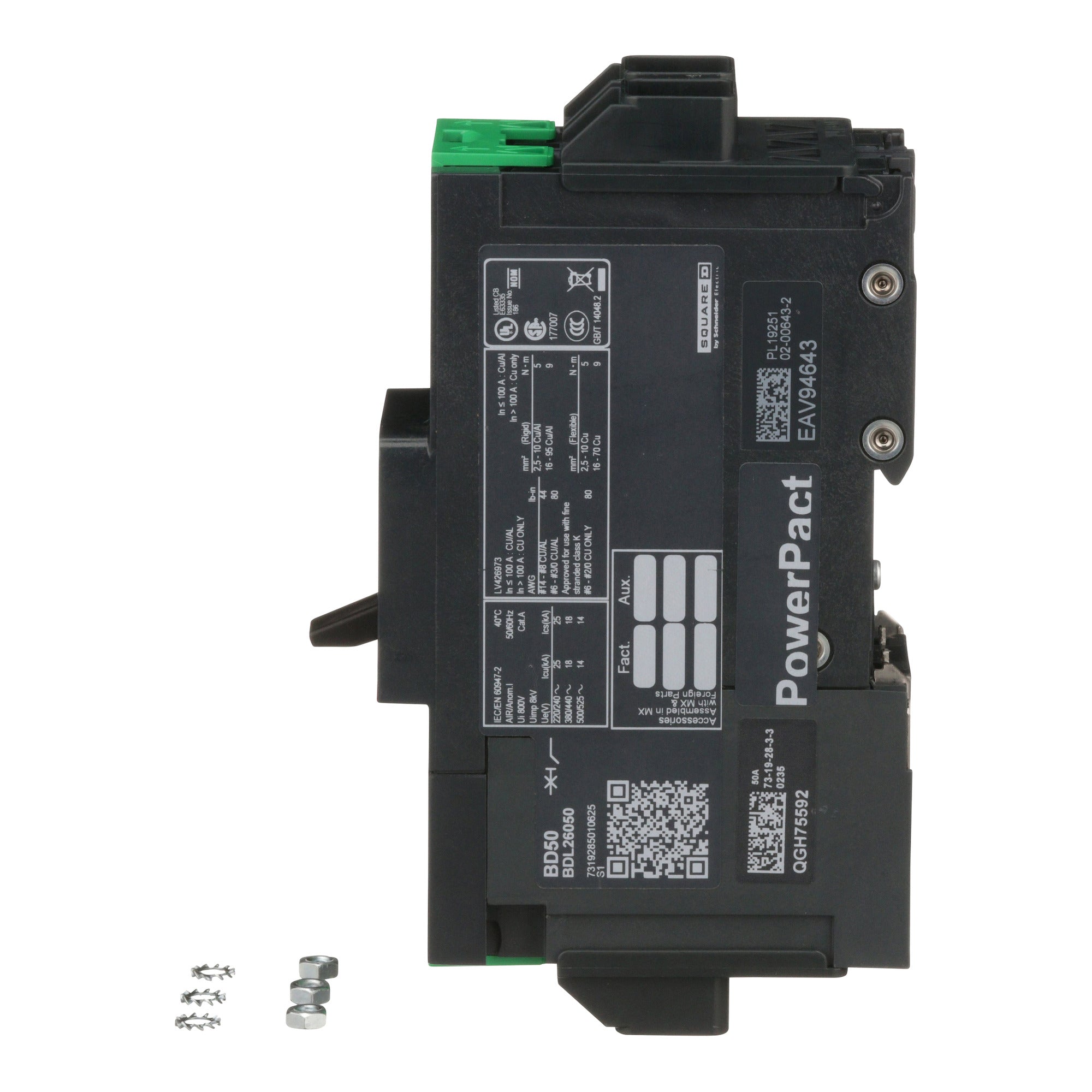

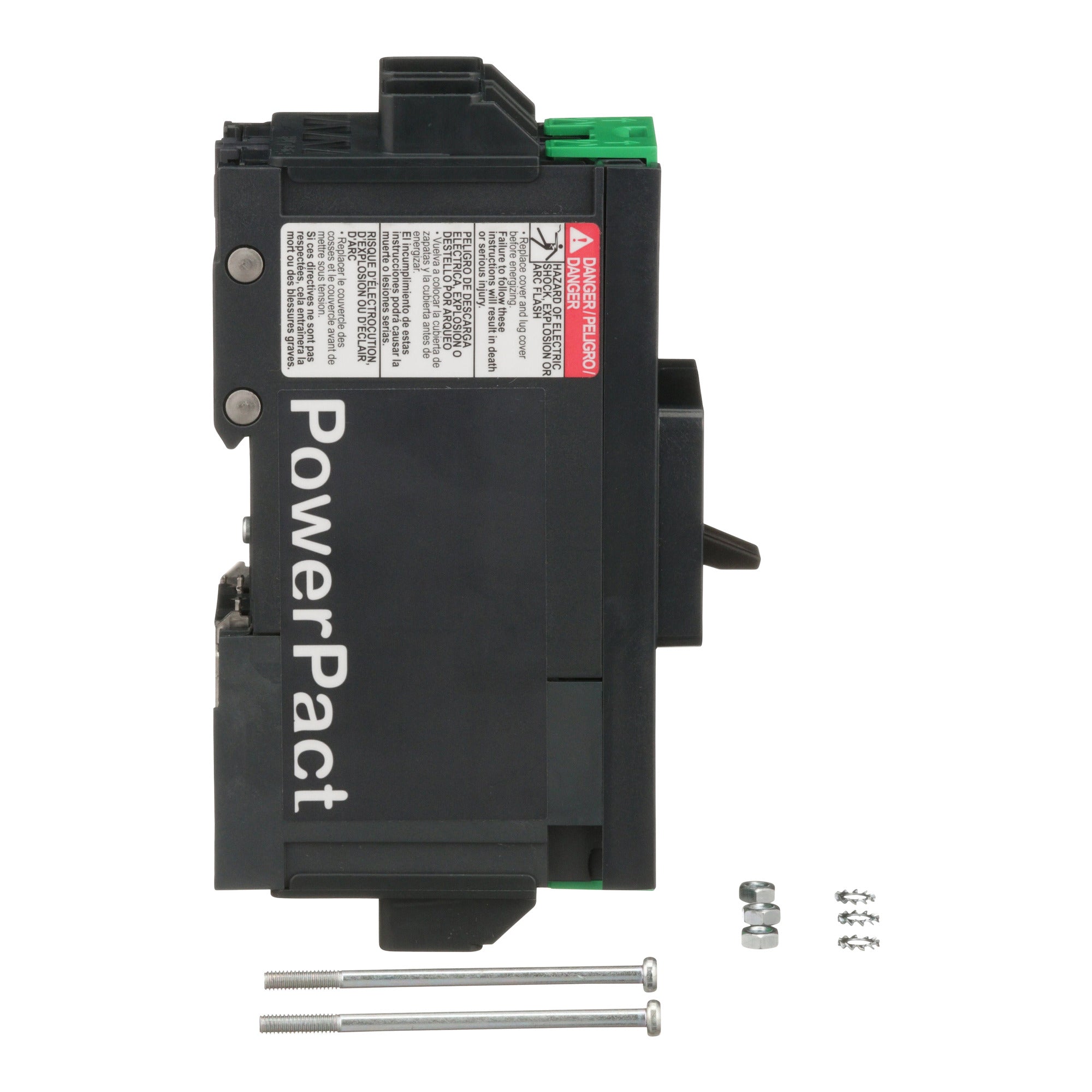

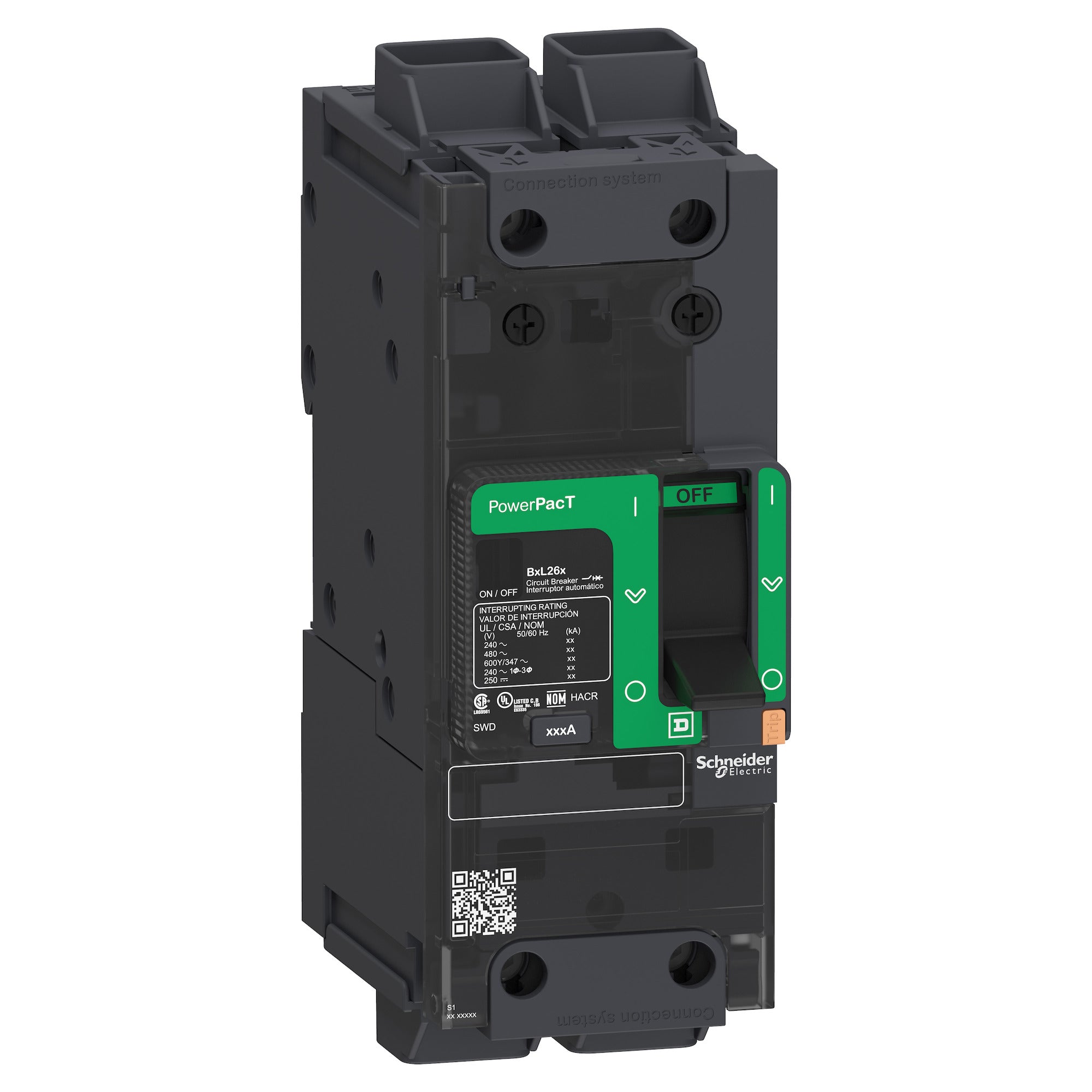

Schneider Electric BDL26050 Circuit Breaker PowerPacT B 50A 2 Pole 600Y/347VAC 14kA

Product Description

Schneider Electric BDL26050 is a circuit breaker designed for power distribution. This unit provides thermal magnetic protection with a breaking capacity of 14kA at 600Y/347VAC. The PowerPacT B-Frame is compact and comes with a range of mounting options, making it suitable for various applications in electrical systems.

• Rated for continuous current at eighty percent
• Features dual-break rotating contacts
• Includes EverLink lugs that prevent cable loosening

Product Highlights

This circuit breaker is ideal for protecting electrical circuits in commercial and industrial environments. Its design includes an integral push-to-trip button to manually reset the breaker when necessary.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: BDL26050

Technical Specifications

• Breaking Capacity: 14kA
• Continuous Current Rating: 80%
• Poles: 2
• Voltage Rating: 600Y/347VAC
• Construction Type: Unit mount / I-Line
• Country of Origin: Mexico
