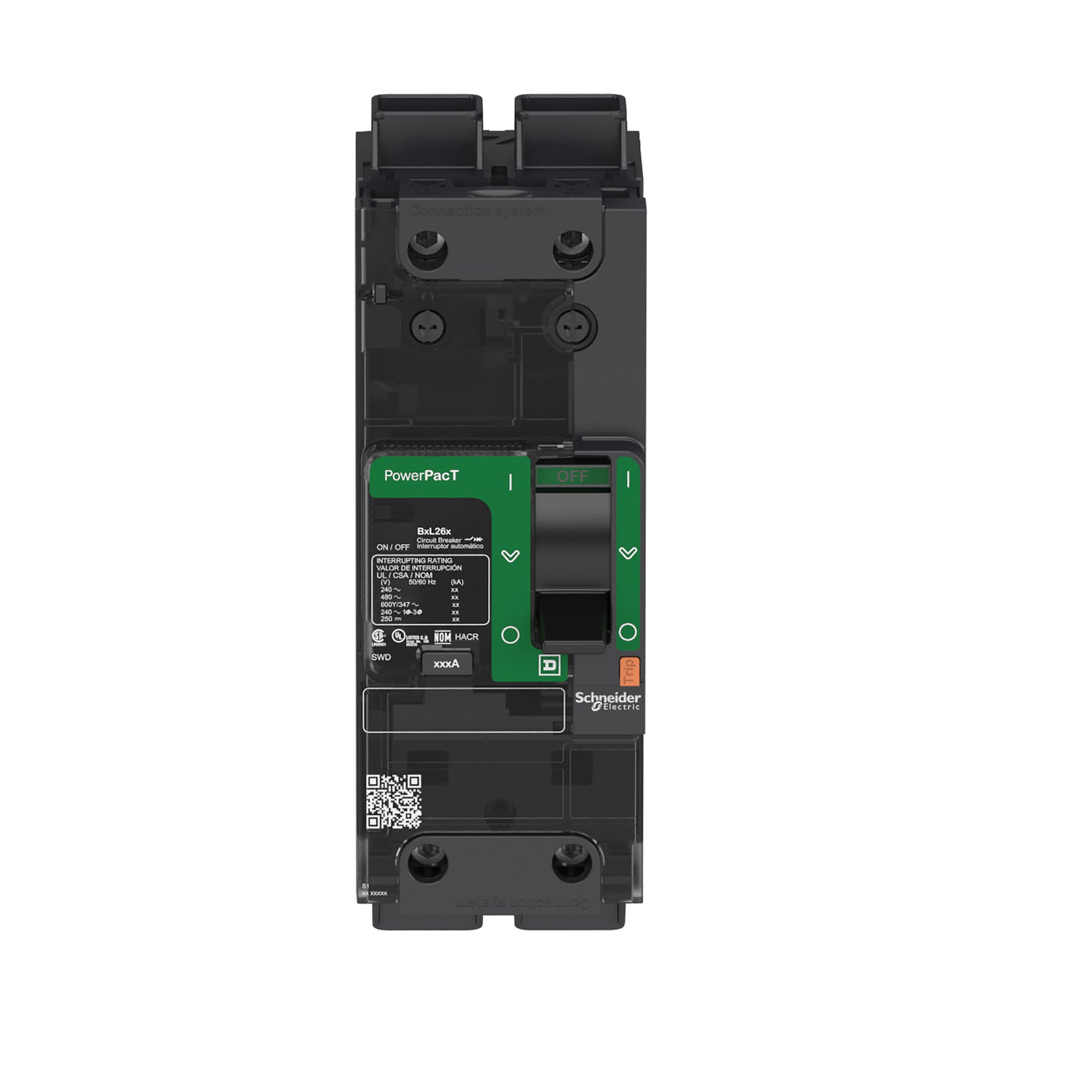

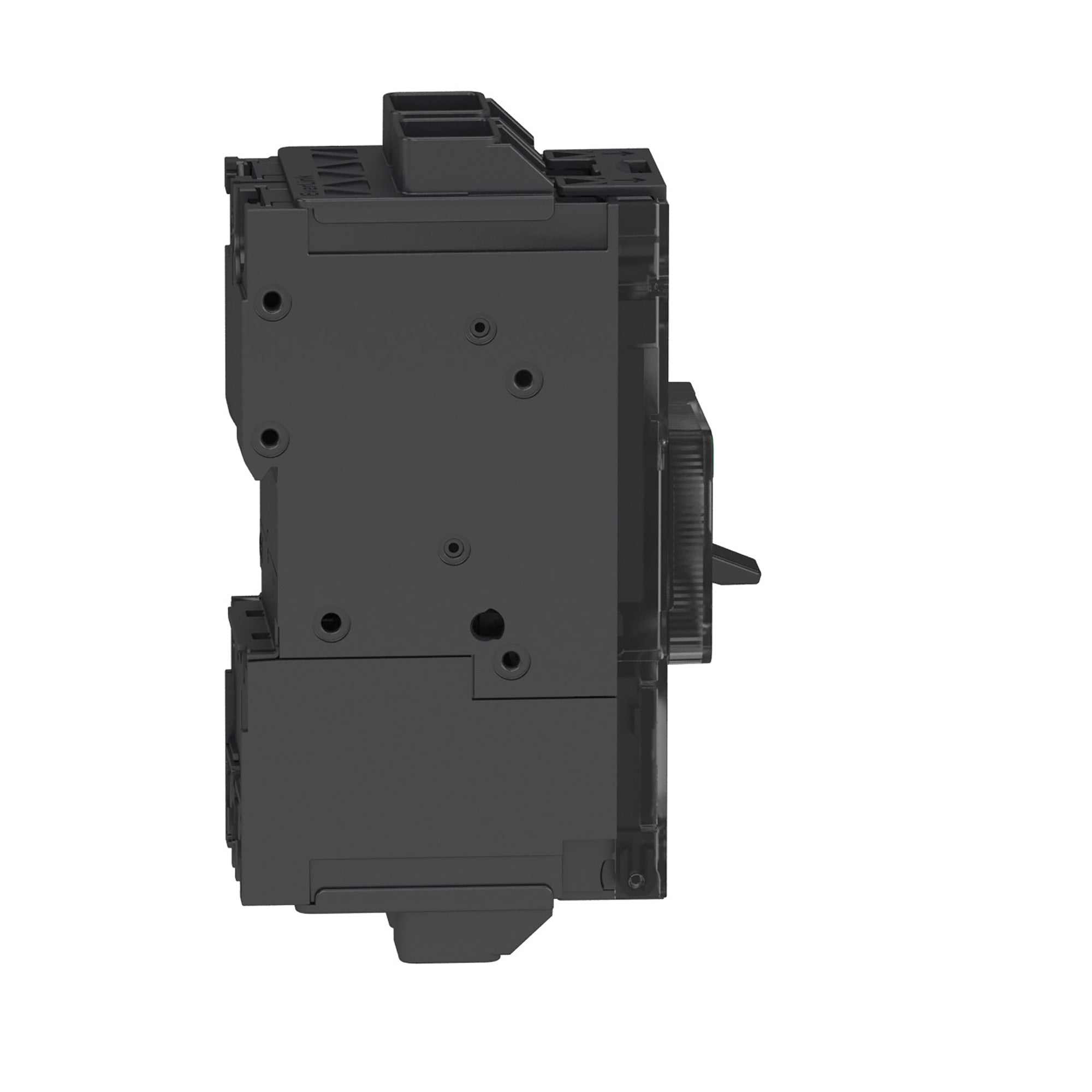

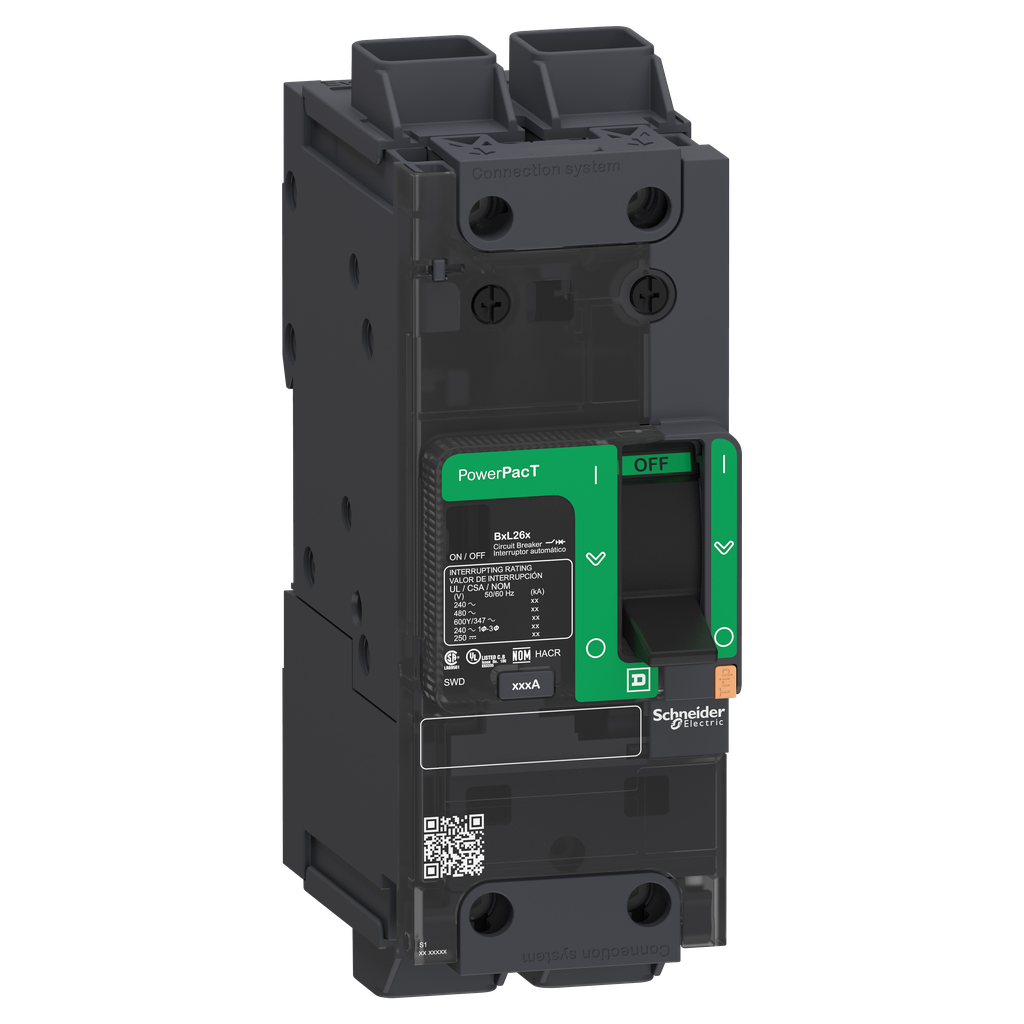

Schneider Electric BDL26040 Circuit Breaker, PowerPacT B, 40A, 2 Pole, 600Y/347VAC, 14kA

Product Description

Schneider Electric BDL26040 is a PowerPacT B-frame circuit breaker designed for thermal-mechanical circuit protection. This unit offers thermal magnetic protection with a breaking capacity of fourteen kiloamperes at six hundred volts Y/three hundred forty-seven volts alternating current. The dual-break rotating contacts found in this circuit breaker help reduce the peak current during short circuit faults.

Installation flexibility is provided through unit mount construction with traditional back pan mounting or integrated DIN rail mounting. The circuit breaker features EverLink lugs that minimize cable loosening over time. The power rating is forty amperes with a continuous current rating at eighty percent.

• Breaking capacity of 14kA at 600Y/347VAC
• Two-pole construction with several mounting options
• Complies with UL, CSA, NOM, and IEC standards

Product Highlights

This circuit breaker is ideal for power distribution systems.

Product Information

Standard Information

• Product Name: PowerPacT B, 40A, 2 Pole
• Brand: Schneider Electric

Technical Specifications

• Catalog Number: BDL26040
• Voltage: 525 Volt
• Amperage: 40 Amp
• Number of Poles: 2 Pole
• Width: 54 mm
• Height: 137 mm
• Depth: 80 mm
• Weight: 1.70 lb (0.769 kg)
