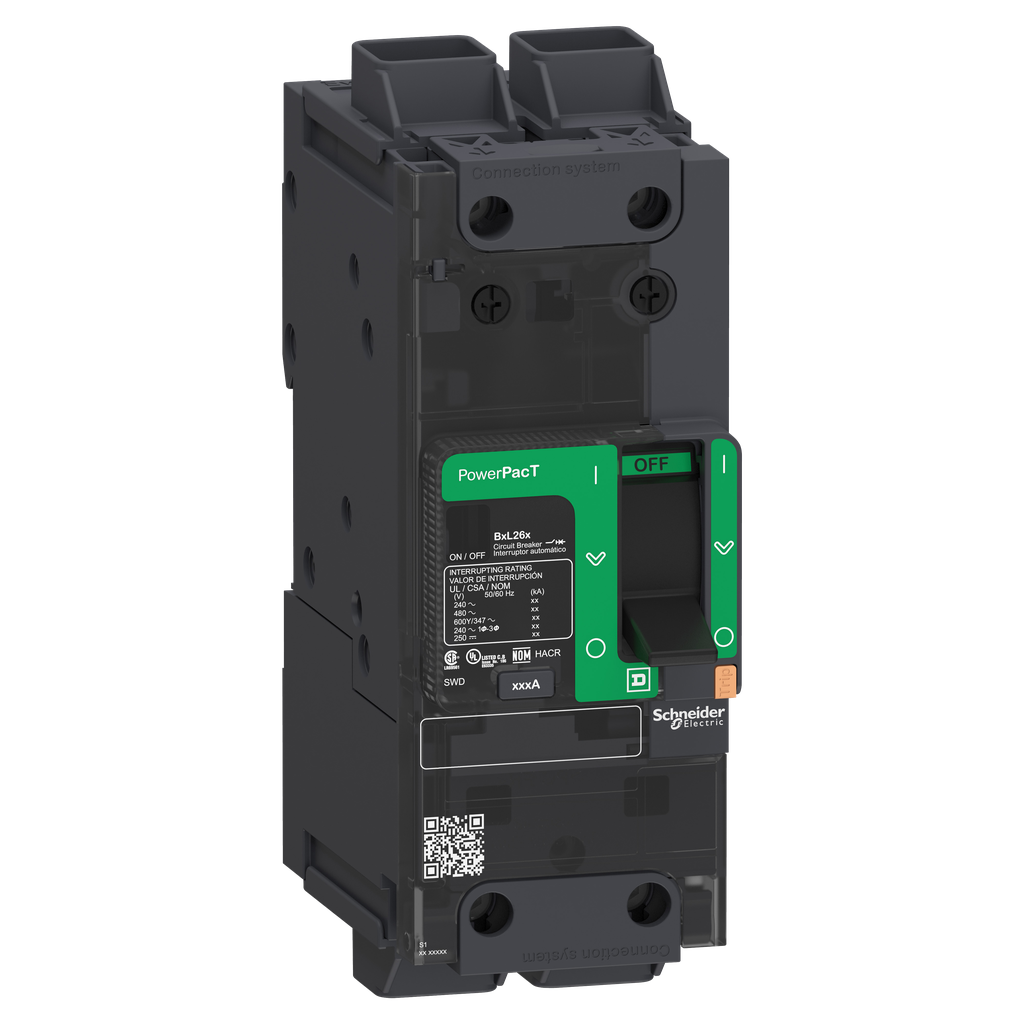

Schneider Electric BDL26025 Circuit Breaker, PowerPacT B, 25A, 2 Pole, 600Y/347VAC, 14kA

Product Description

The Schneider Electric BDL26025 is a PowerPacT B-Frame circuit breaker designed for thermal-mechanical circuit protection. It has a breaking capacity of fourteen kiloamperes at six hundred volts phase-to-phase / three hundred forty-seven volts phase-to-ground.

• Two-pole configuration with thermal magnetic protection
• Integrated push-to-trip button for manual operation
• Mounting options with screws or DIN rail

Product Highlights

This circuit breaker is suitable for various applications where reliable overload and short-circuit protection is essential. It features EverLink lugs to minimize cable loosening over time.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D

Technical Specifications

• Catalog Number: BDL26025
• Voltage Rating: 525 Volt
• Amperage Rating: 25 Amp
• Breaking Capacity: 14 kA
• Continuous Current Rating: 80%
• Number of Poles: 2 Pole
• Mounting Type: By Screws Plate, Clip-on 35 X 15 mm Symmetrical DIN Rail
• Weight: 1.70 lb
• Dimensions: 80 mm depth, 54 mm width, 137 mm height, 20 mm length
• Certifications: UL, CSA, NOM, IEC
• Country of Origin: Mexico
