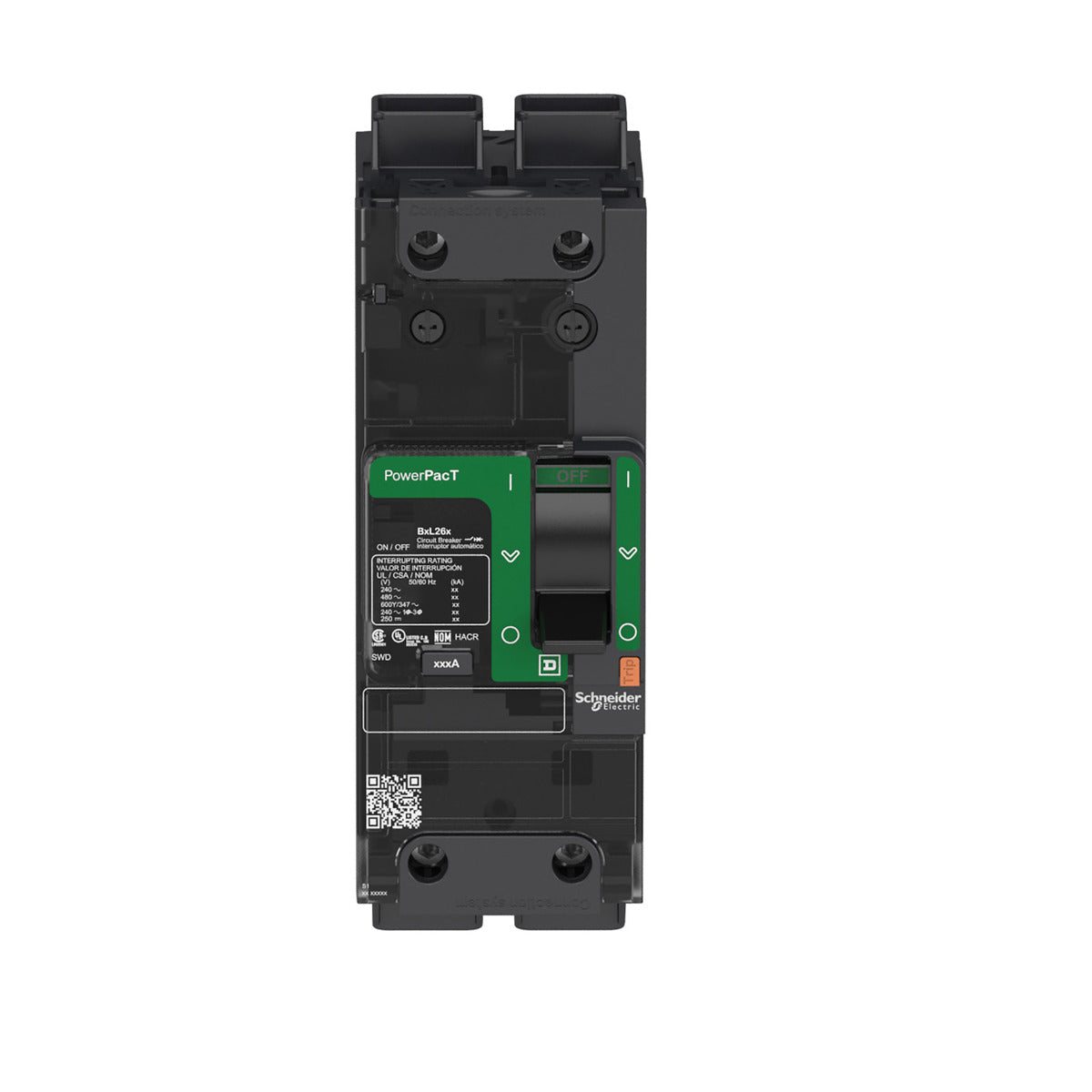

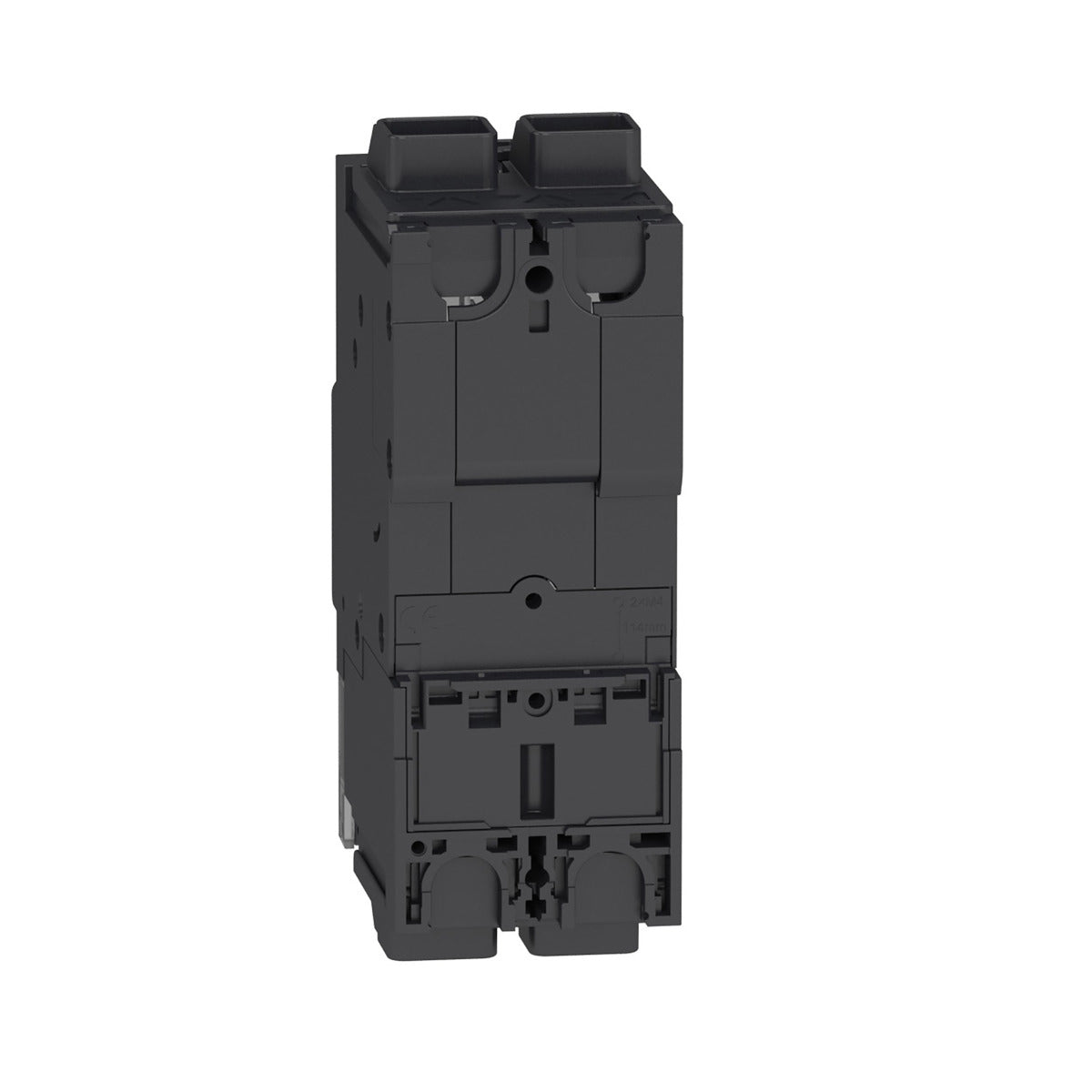

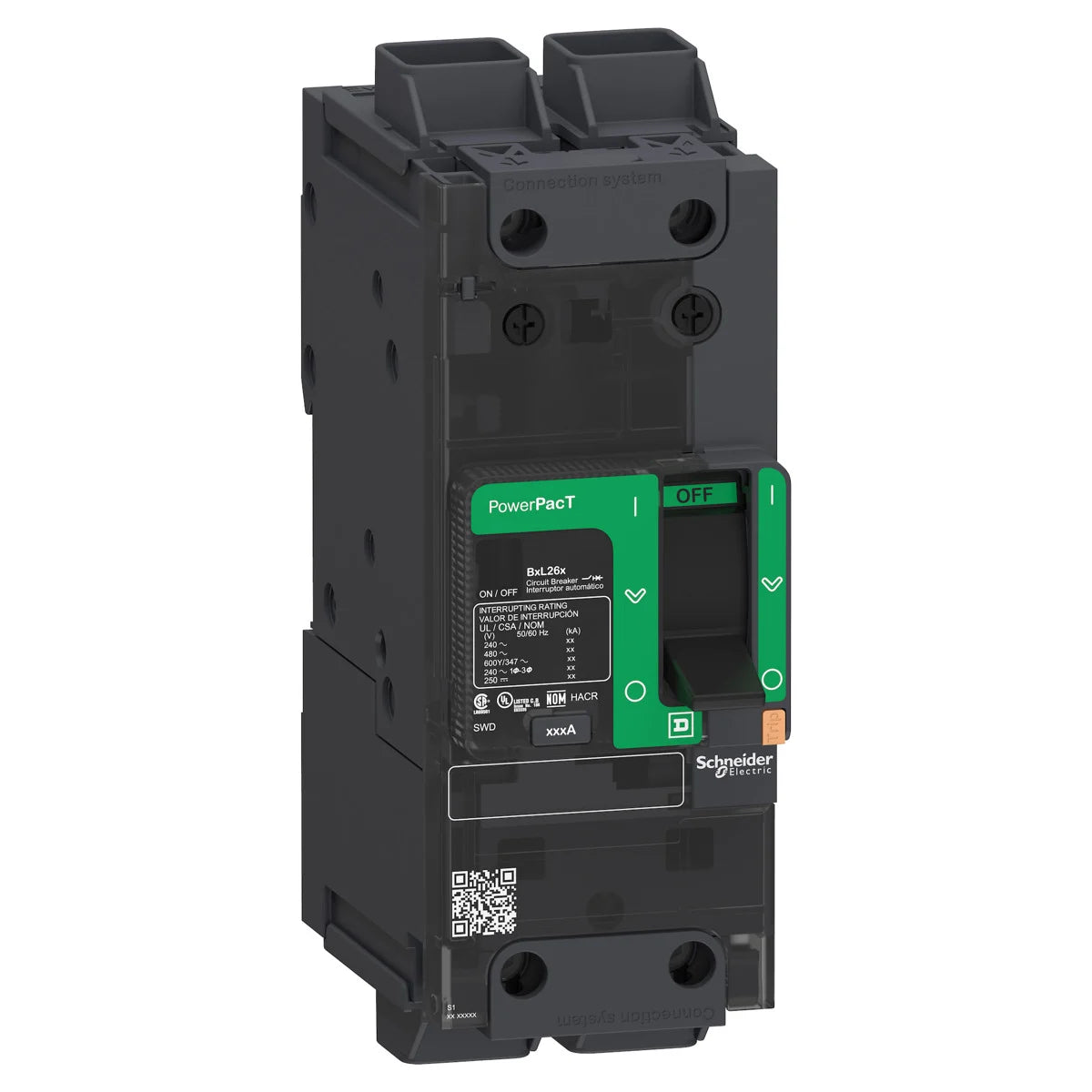

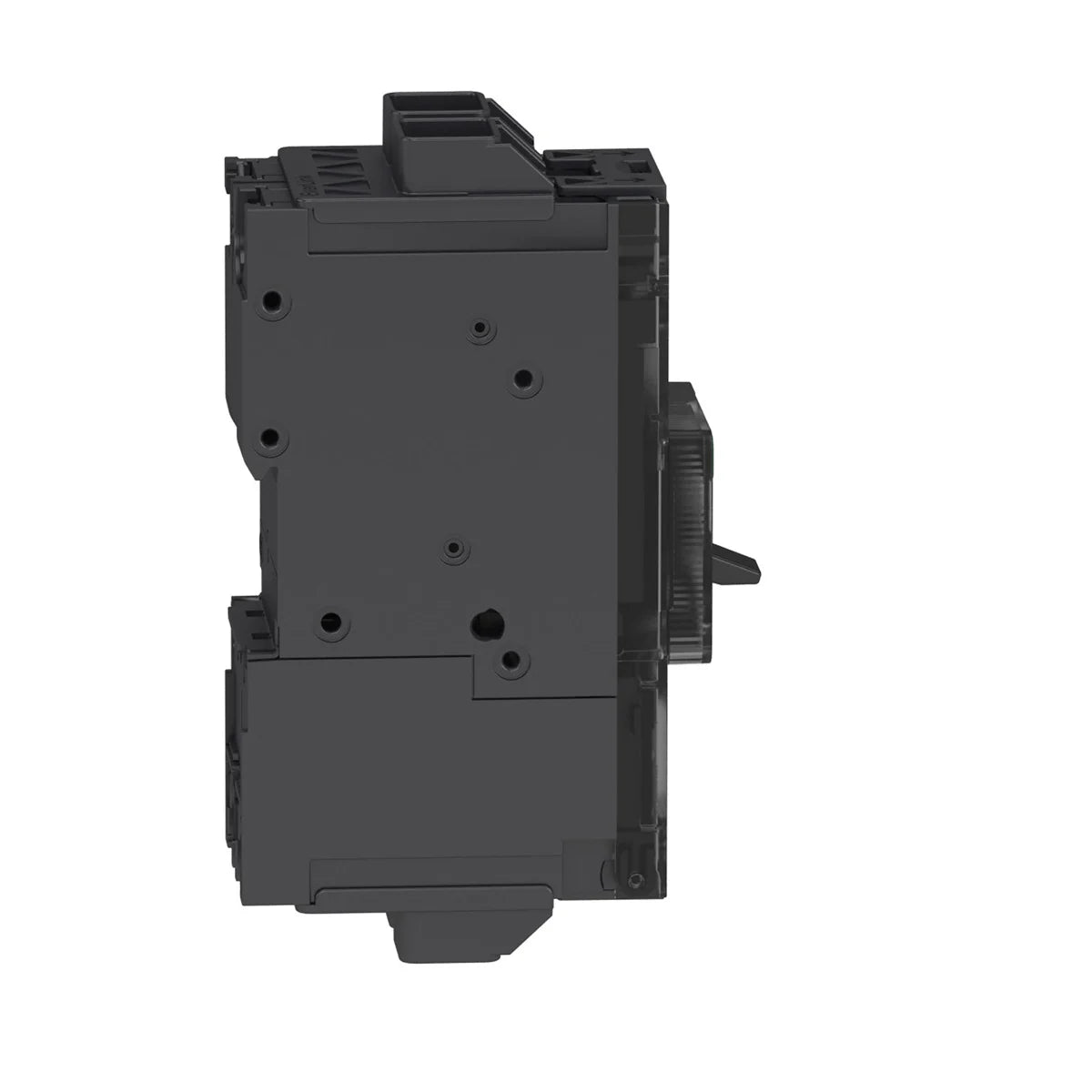

Schneider Electric BDL26020 Circuit Breaker PowerPacT B 20A 2 Pole 600Y/347VAC 14kA lugs thermal magnetic 80%

Product Description

Schneider Electric BDL26020 is a PowerPacT B circuit breaker designed for thermal and mechanical protection. This unit can manage up to 20 amperes and operates at 600Y/347 volts AC with a breaking capacity of 14kA. The circuit breaker features an integral push-to-trip button for manual operation and incorporates dual-break rotating contacts that limit peak currents during short circuit events. Designed for flexibility, it can be installed using traditional back pan mounting or via integrated DIN rail mounting.

• Rated for 20A continuous current
• Offers thermal magnetic protection
• Compliant with UL, CSA, NOM, and IEC standards

Product Highlights

This circuit breaker is compact yet powerful, suitable for various applications in power distribution and protection.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: BDL26020

Technical Specifications

• Continuous Current Rating: 80%
• Breaking Capacity: 14kA at 600Y/347VAC
• Construction Type: 2 pole unit mount
• Features: EverLink lugs to reduce cable loosening
• Country of Origin: United States
• Manufacturer: Schneider Electric
• RoHS URL: RoHS Compliance
• GTIN: 03606481152800
