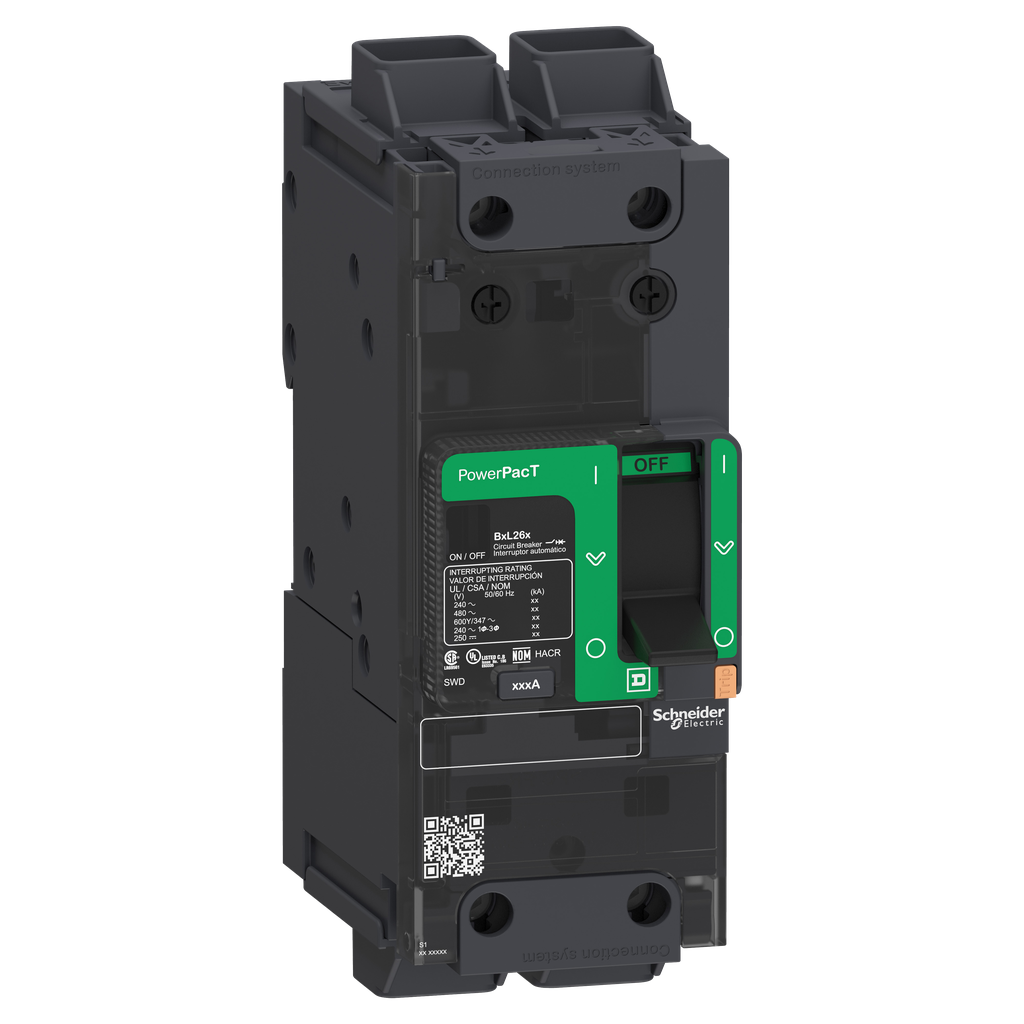

Schneider Electric BDL26015 Circuit Breaker, P, 15A, 2 Pole, 600Y/347VAC, 14kA

Product Description

Schneider Electric BDL26015 is a reliable circuit breaker designed for thermal-mechanical protection. It features a compact design with a breaking capacity of fourteen kiloamperes at six hundred volts. This circuit breaker is suitable for applications requiring dual-break rotating contacts to mitigate peak currents during short circuit faults.

• Breaking capacity of fourteen kiloamperes at six hundred volts.
• Integrates a push-to-trip button for manual tripping.
• Compliant with UL, CSA, and IEC standards.

Product Highlights

Designed for use in power distribution systems, this circuit breaker offers flexible mounting options and is equipped with EverLink lugs to ensure reliable connections.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: BDL26015
• Voltage: 525 Volt
• Amperage: 15 Amp
• Number of Poles: 2 Pole
• Weight: 1.70 lb
• Depth: 3.15 inches
• Width: 2.13 inches
• Height: 5.39 inches
