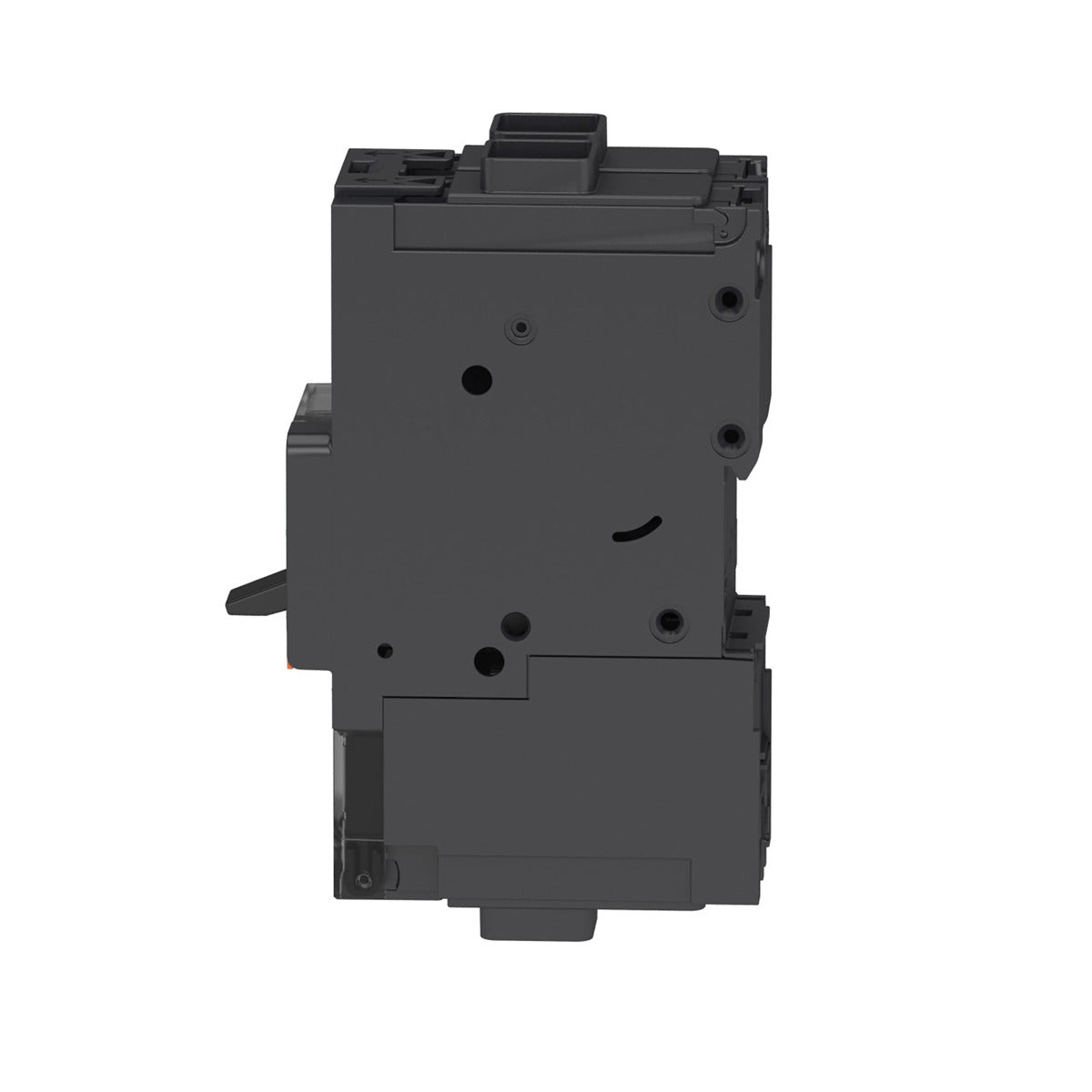

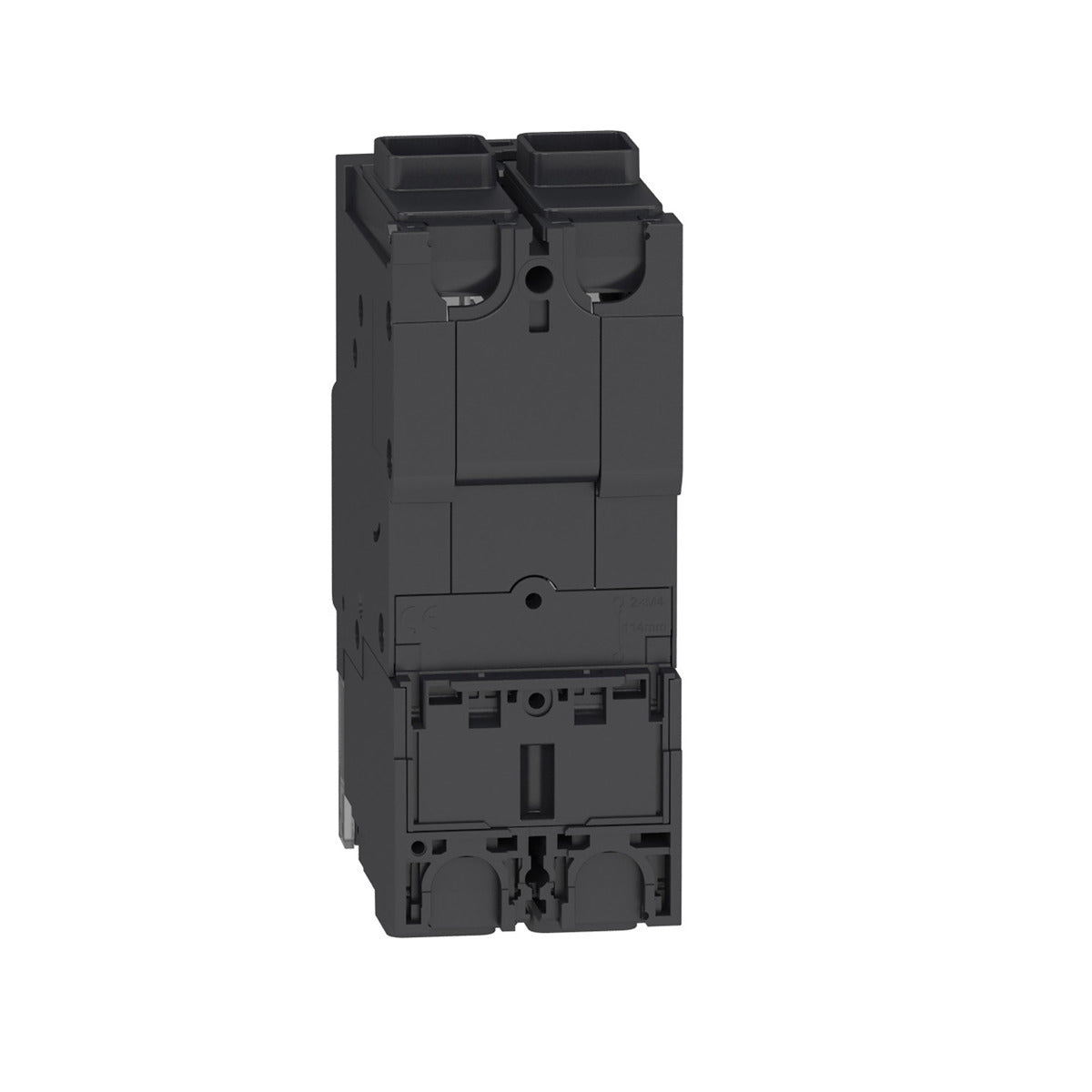

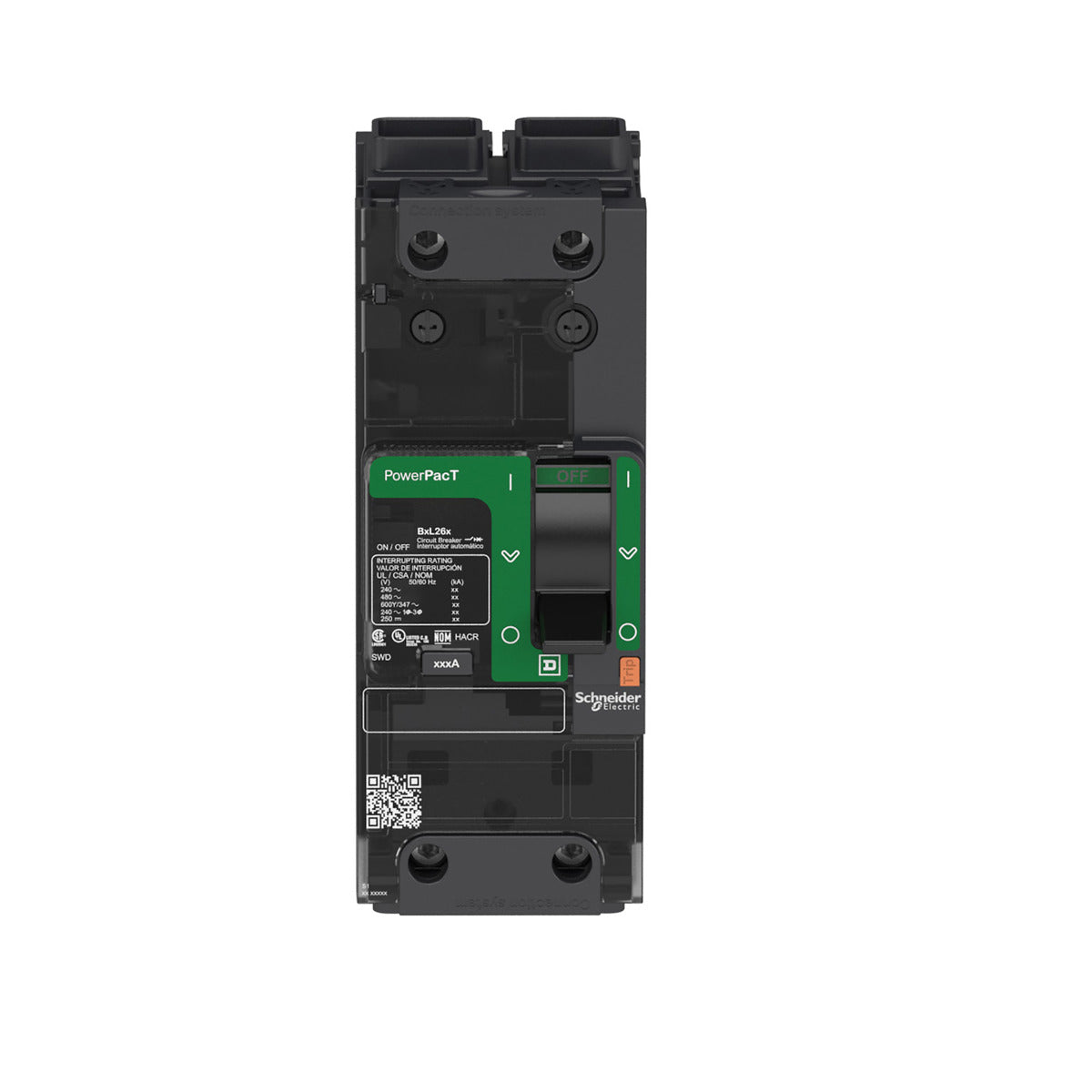

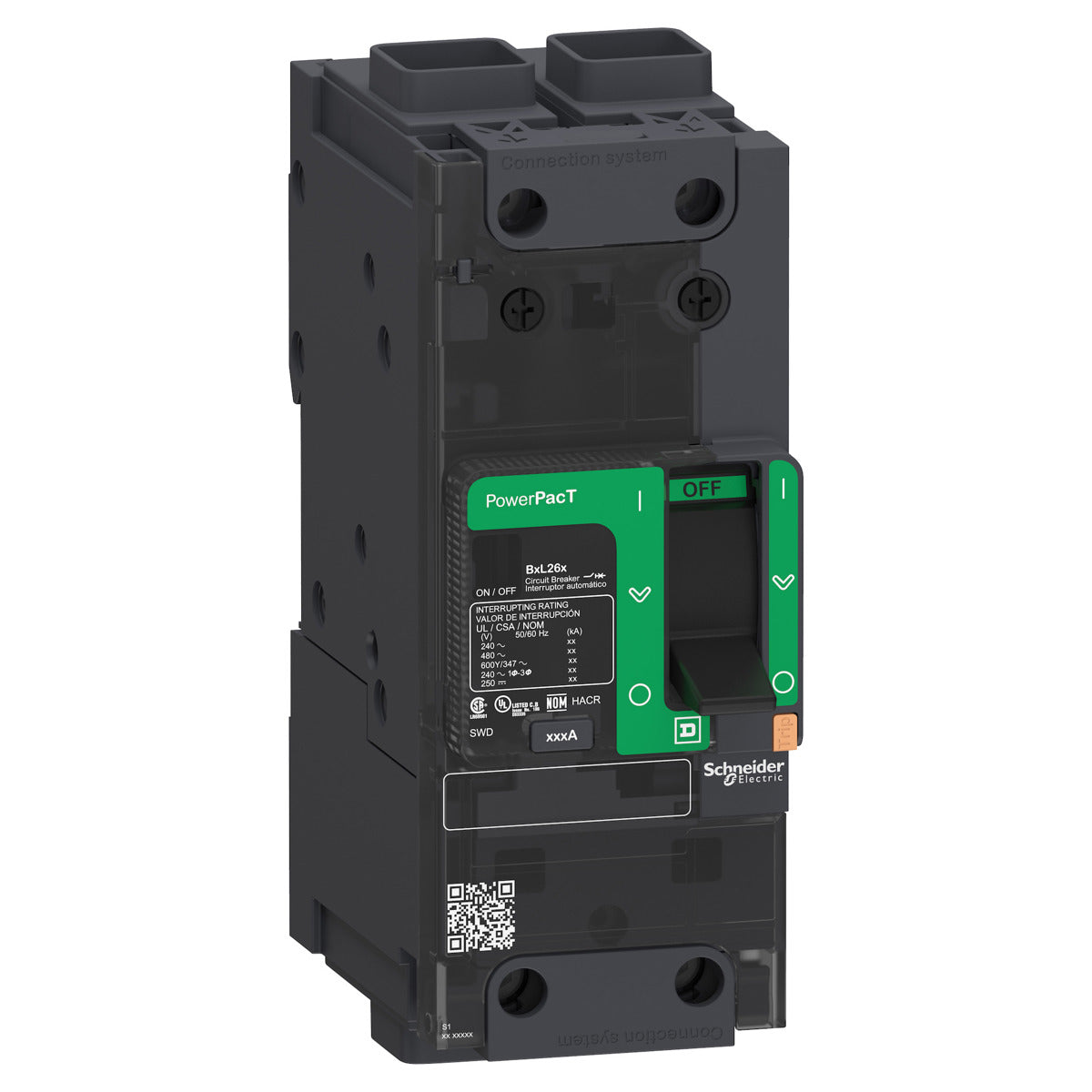

Schneider Electric BDF26030 Circuit Breaker PowerPacT B 30A 2 Pole 600Y/347VAC 14kA

Product Description

The Schneider Electric BDF26030 is a circuit breaker from the PowerPacT B series. It offers thermal magnetic circuit protection. This model has a capacity of 14kA at 600Y/347VAC. The unit features dual-break rotating contacts that help lower peak current during short circuits. It includes a push-to-trip button, allowing manual circuit trips.

• Continuous current rating of 80%
• Mounting options include back pan screws or DIN rail
• Available in various pole configurations

Product Highlights

This circuit breaker meets UL, CSA, NOM, and IEC standards and is CE marked. Its design allows for easy installation in various electrical setups.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: BDF26030

Technical Specifications

• Country of Origin: Mexico
• Breaking Capacity: 14kA
• Current Rating: 30A
• Voltage Rating: 600Y/347VAC
• Poles: 2
• Terminal Type: Terminal nut
