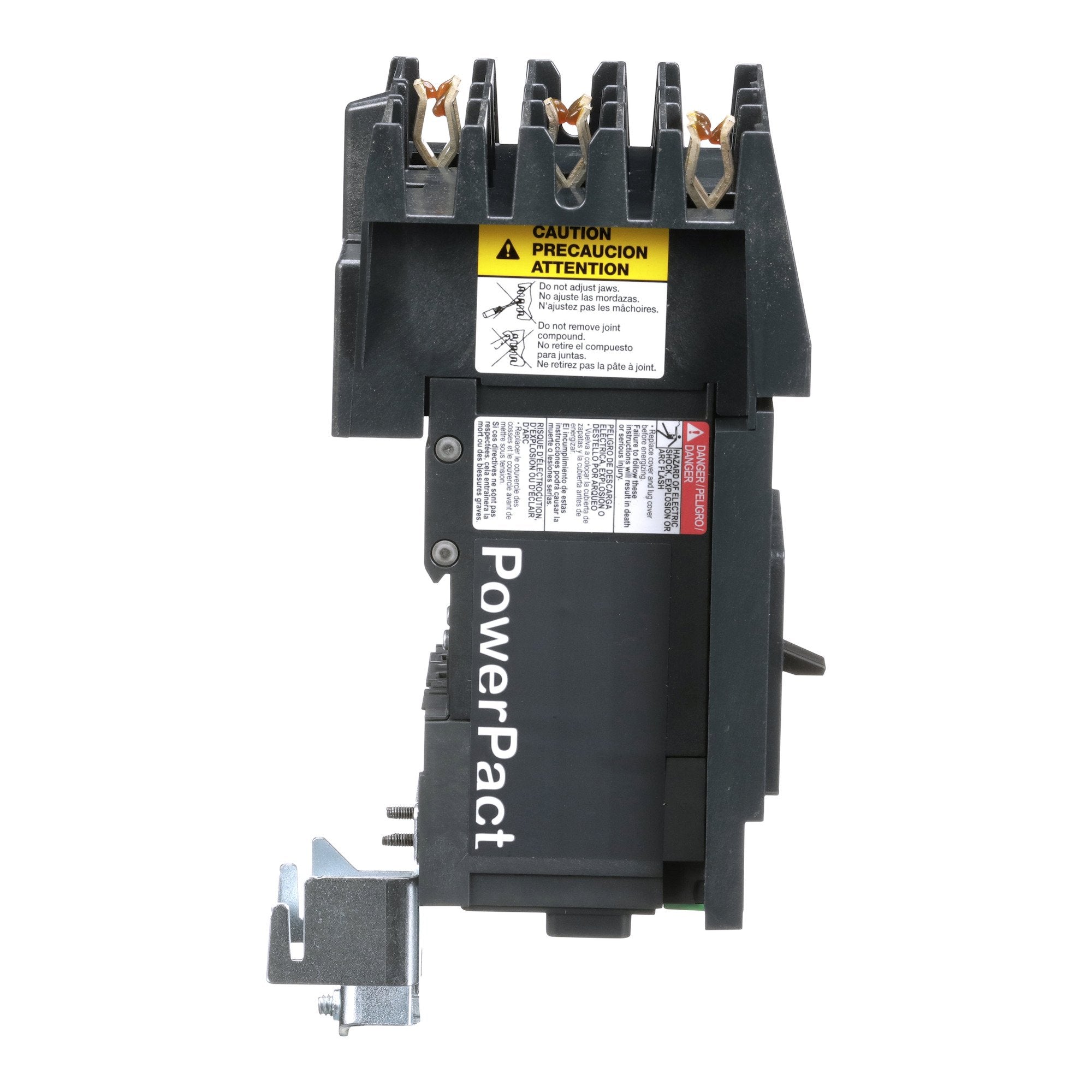

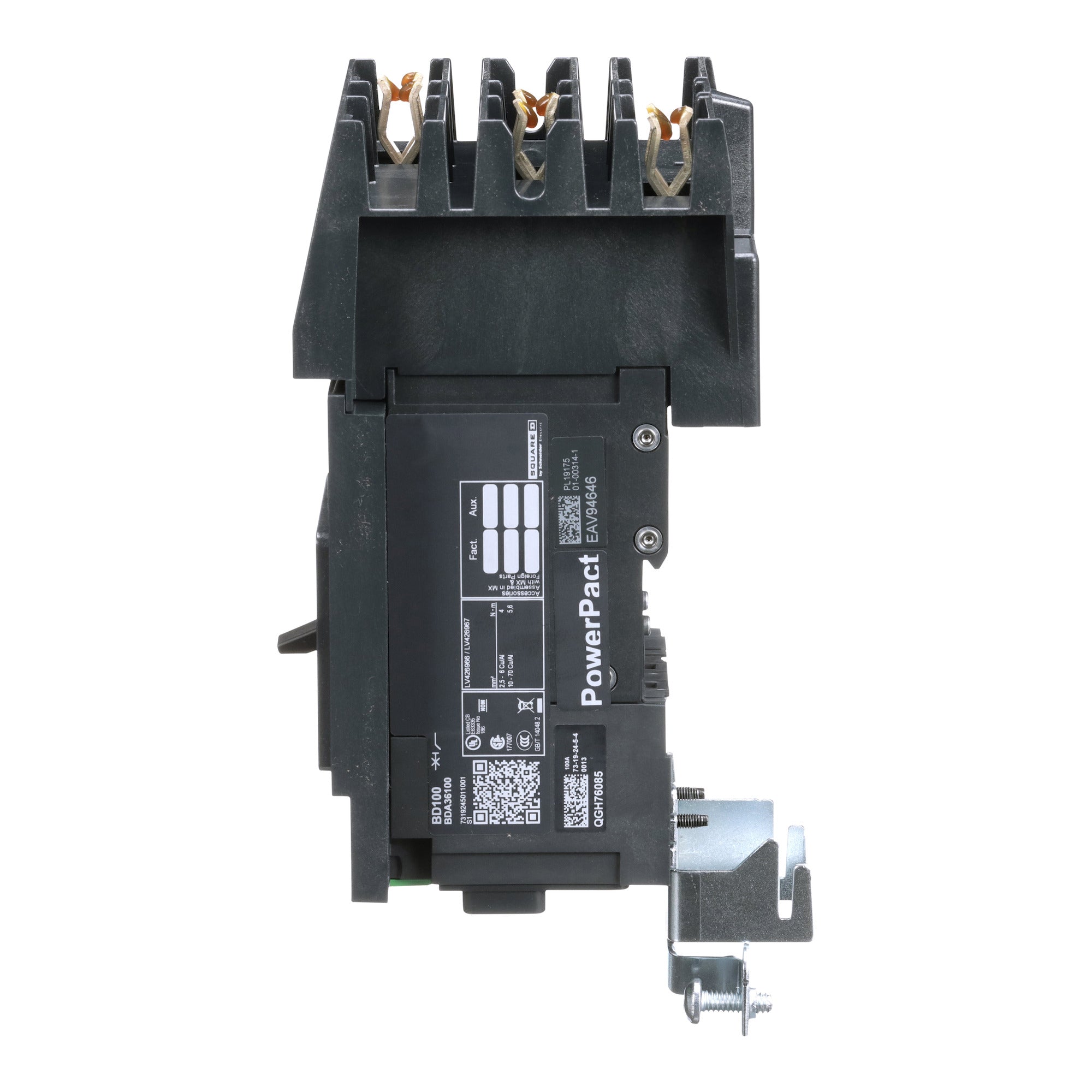

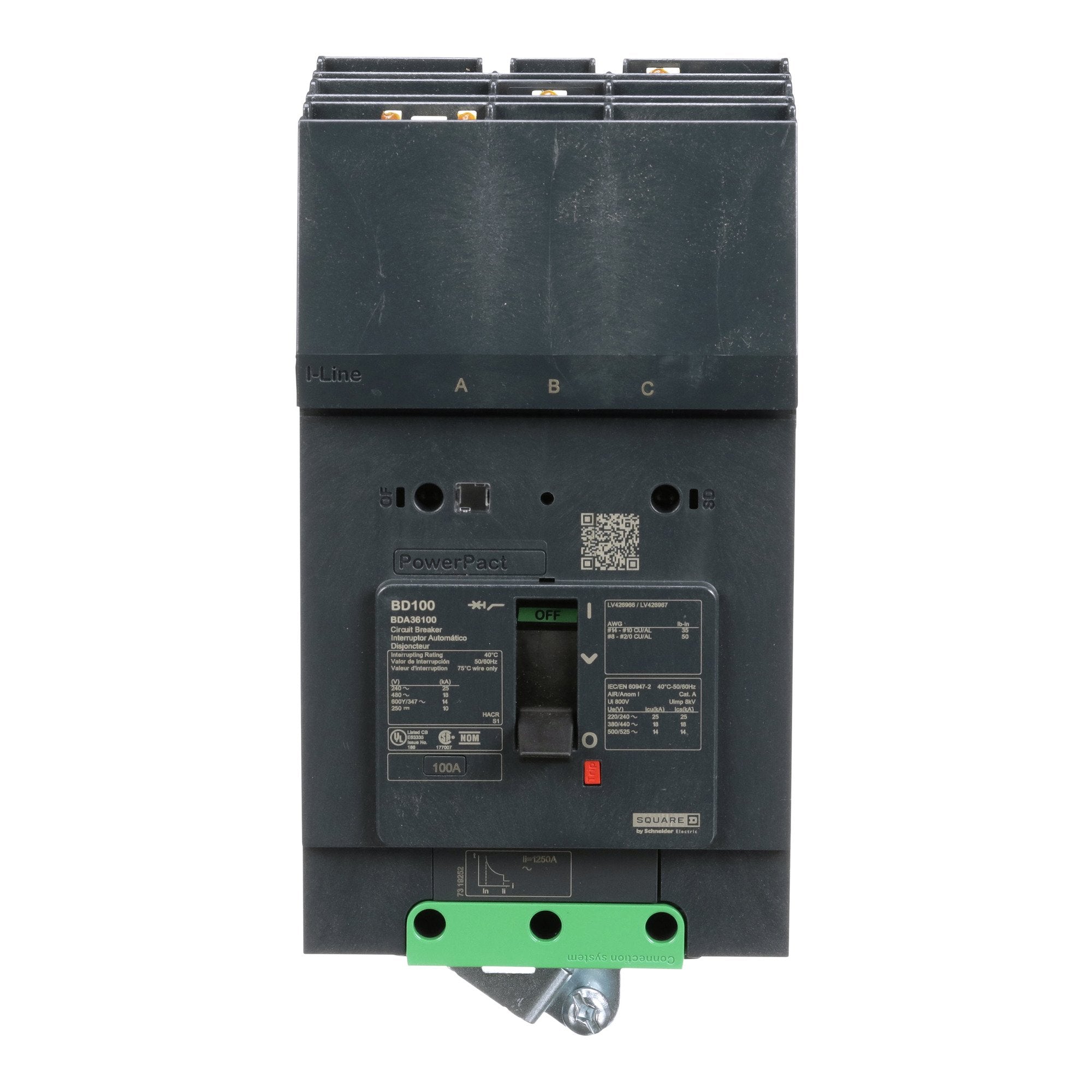

Schneider Electric BDA36100 Circuit Breaker PowerPacT B 100A 3 Pole 600Y/347VAC 14kA

Product Description

Schneider Electric BDA36100 is a PowerPacT B-Frame circuit breaker. It offers thermal-mechanical protection in a compact form. This circuit breaker delivers thermal magnetic protection with a breaking capacity of fourteen kiloamperes at six hundred volts Y/three hundred forty-seven volts alternating current. It features dual-break rotating contacts designed to minimize peak current during short circuit events. An integral push-to-trip button allows manual tripping of the circuit breaker.

• Compact design for easy installation
• Breaking capacity of fourteen kiloamperes
• Meets UL, CSA, NOM, and IEC standards

Product Highlights

This product is suitable for various industrial applications where reliable circuit protection is essential.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: BDA36100
• Voltage: 525 Volt
• Amperage: 100 Amp
• Number of Poles: 3 Pole
• Breaking Capacity: 14kA
• Mounting Type: I-Line
• Weight: 2.90 lb
• Country of Origin: Mexico
