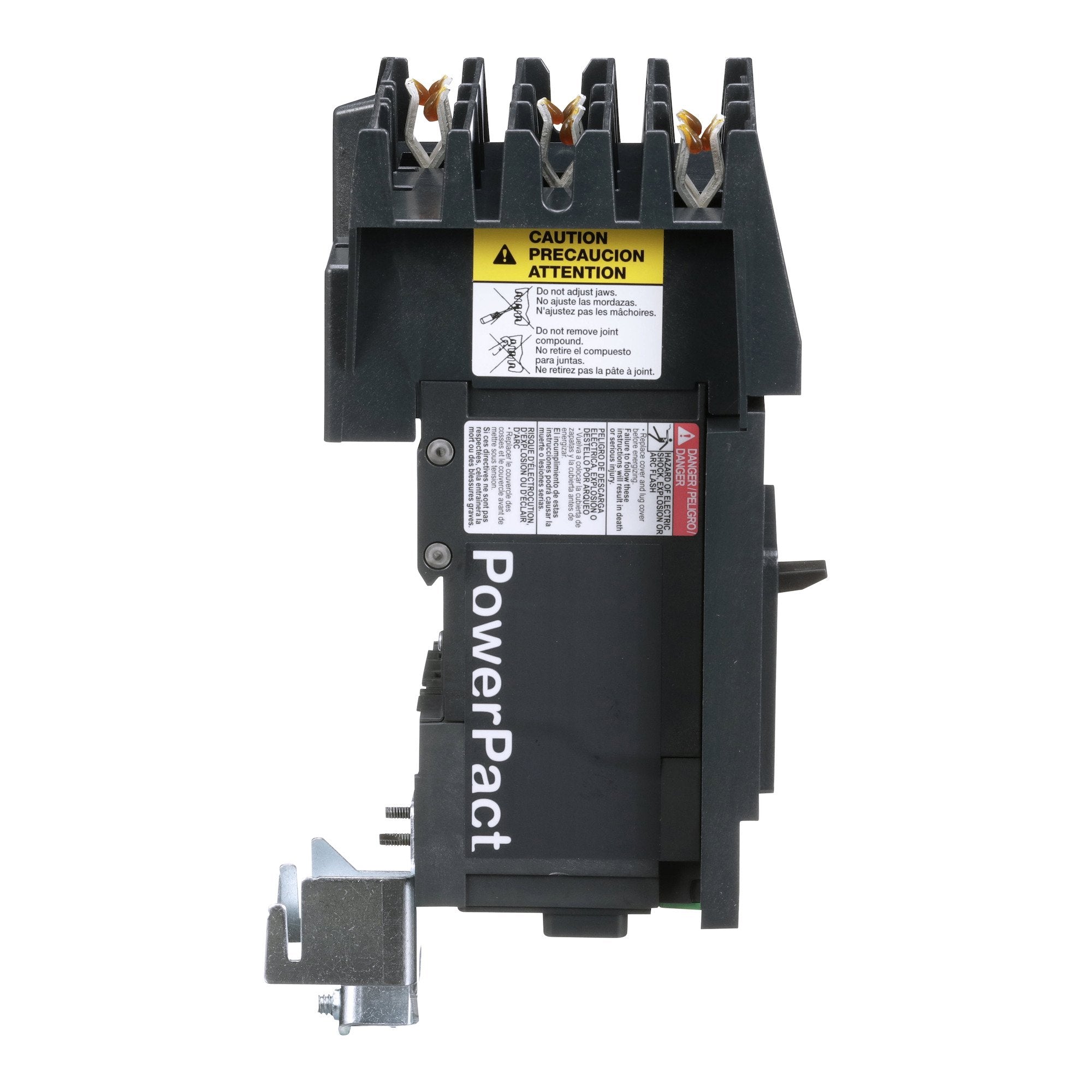

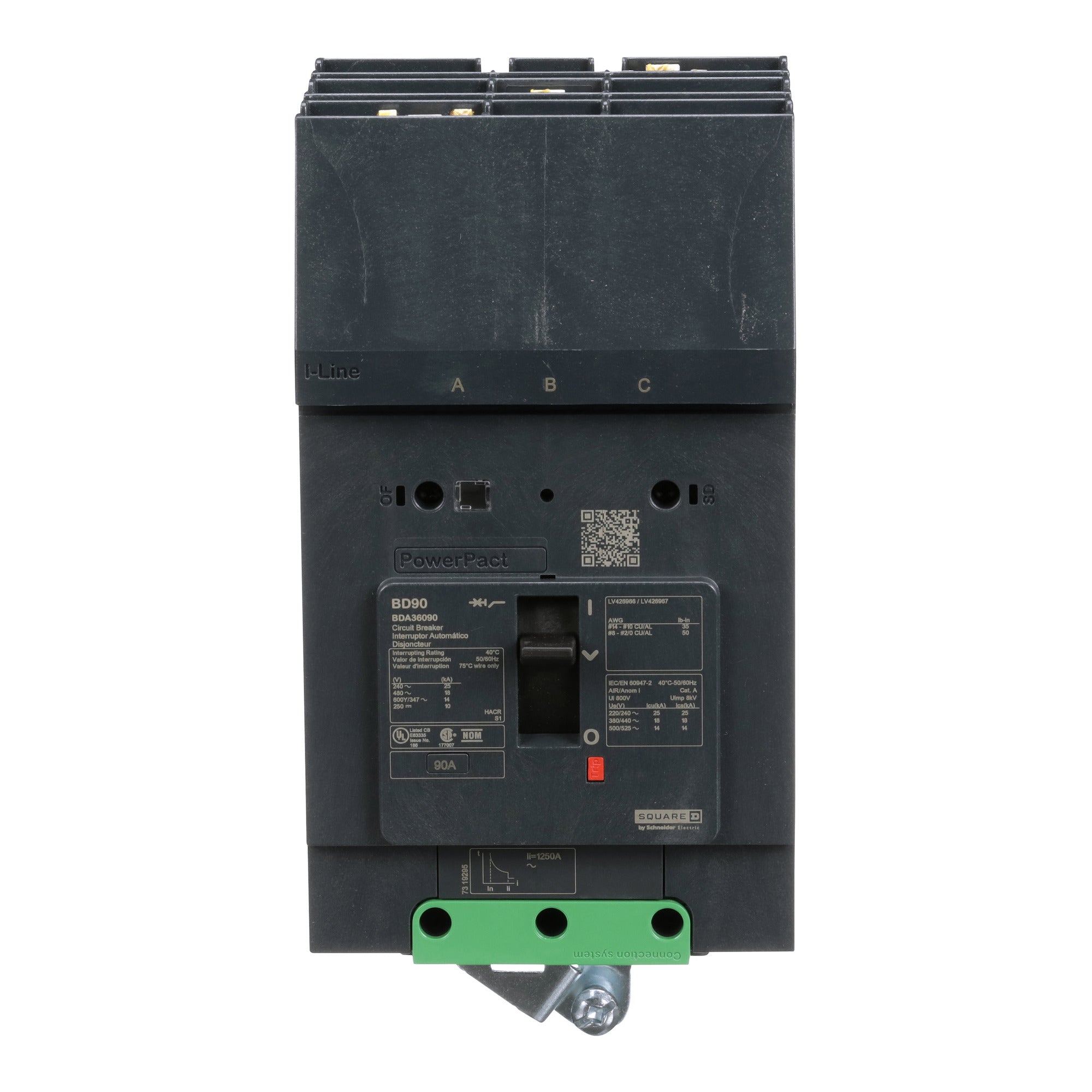

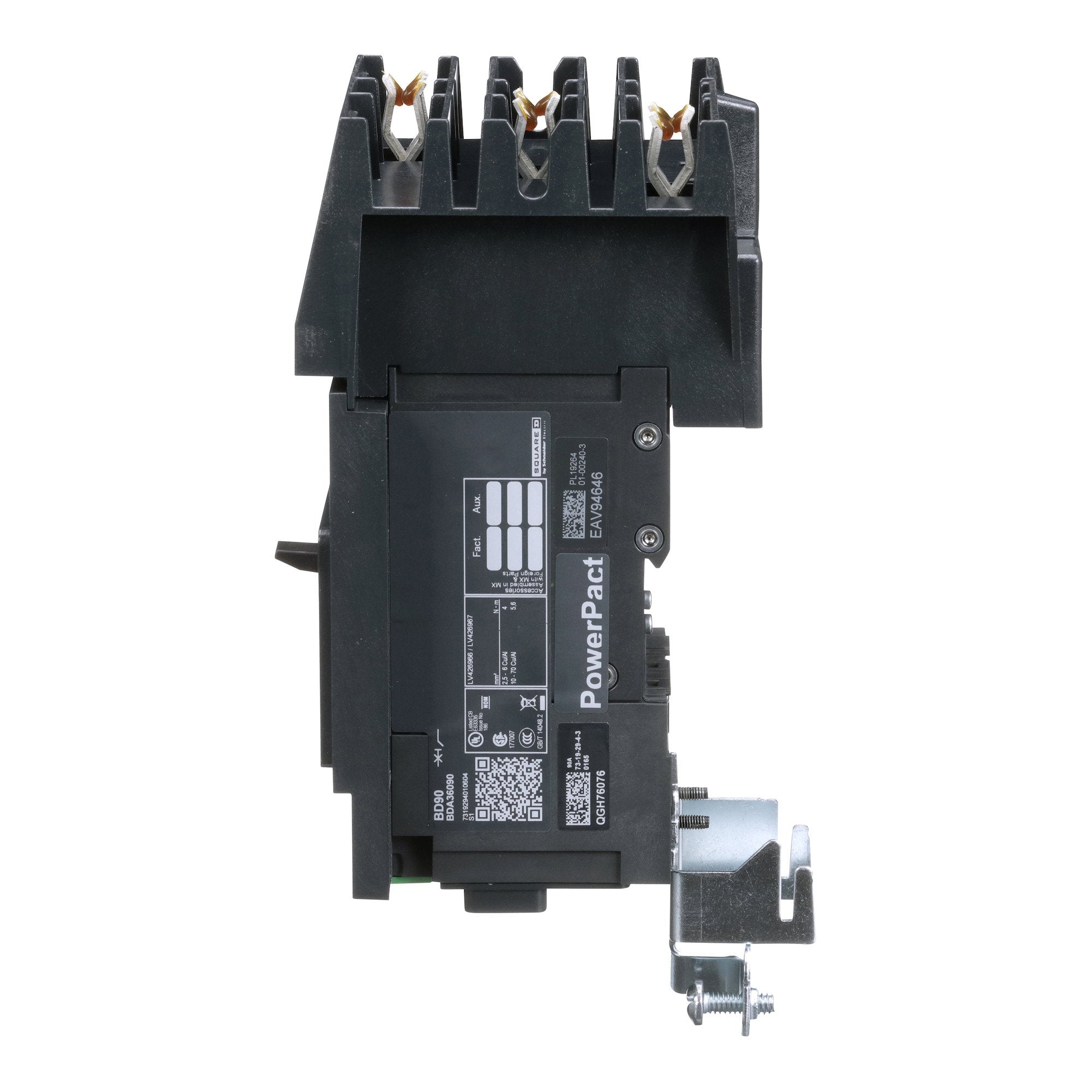

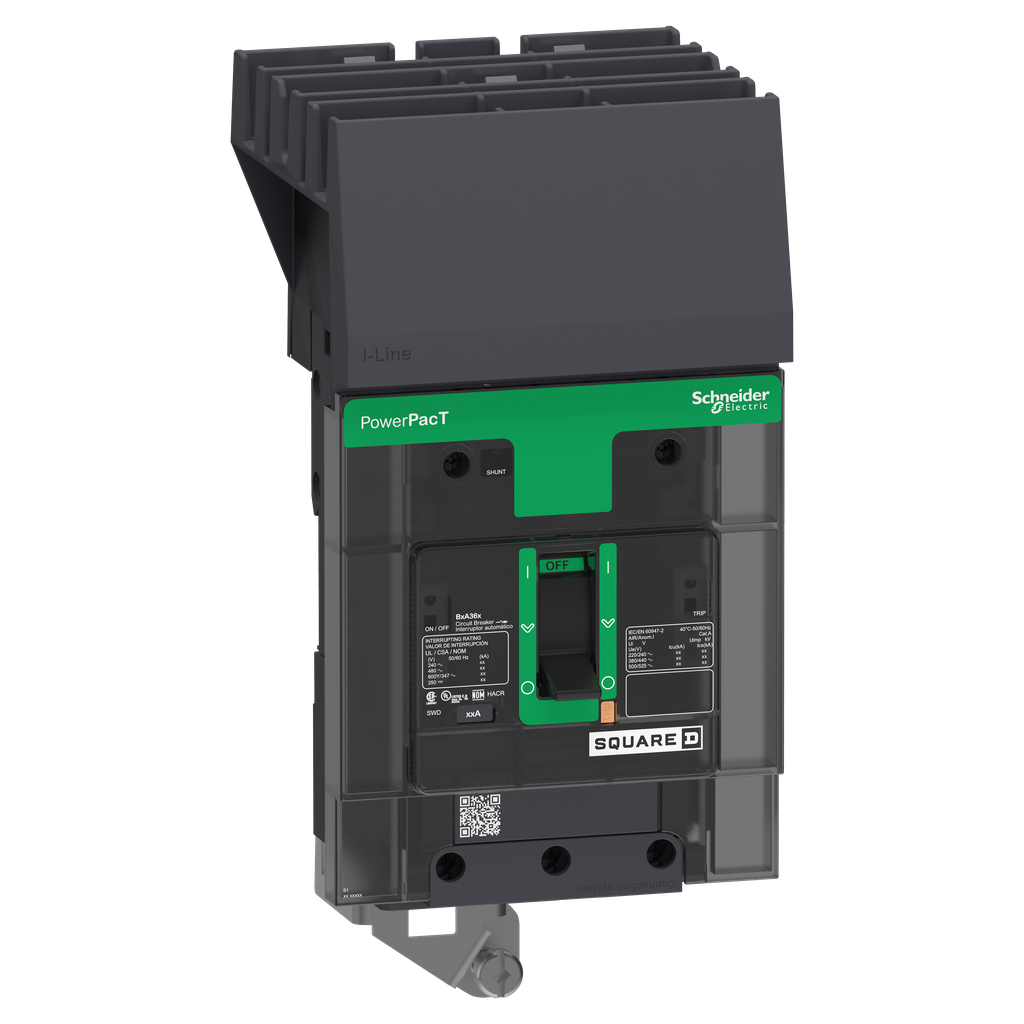

Schneider Electric BDA36090 Circuit Breaker, PowerPacT B, 90A, 3 Pole, 600Y/347VAC, 14kA

Product Description

Schneider Electric BDA36090 is a PowerPacT B-Frame circuit breaker designed for thermal-mechanical circuit protection. This circuit breaker features a compact design and a variety of accessories and connection options. The unit provides thermal magnetic circuit protection with a breaking capacity of fourteen kA at six hundred Y three hundred forty-seven VAC. It includes dual-break rotating contacts that lower peak current during short circuit conditions. The integral push-to-trip button allows manual tripping of the circuit breaker. It is available in one to four-pole unit mount and one to three-pole I-Line constructions. The I-Line version offers shrouded I-Line plug connections. This model is rated for continuous current at eighty percent under ABC phase connection and complies with UL, CSA, and IEC standards.

• Breaking capacity of fourteen kA at six hundred Y three hundred forty-seven VAC
• Continuous current rating of eighty percent
• Available in one to four-pole and one to three-pole configurations

Product Highlights

This unit is suitable for applications requiring reliable circuit protection and complies with various industry standards.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: BDA36090
• Voltage: 525 Volt
• Amperage: 90 Amp
• Dimensions: 4.97 x 3.19 x 4.49 inches
• Weight: 2.90 lb
• Number of Poles: 3 Pole
• Country of Origin: United States
• Certifications: UL, CSA, IEC, CE
