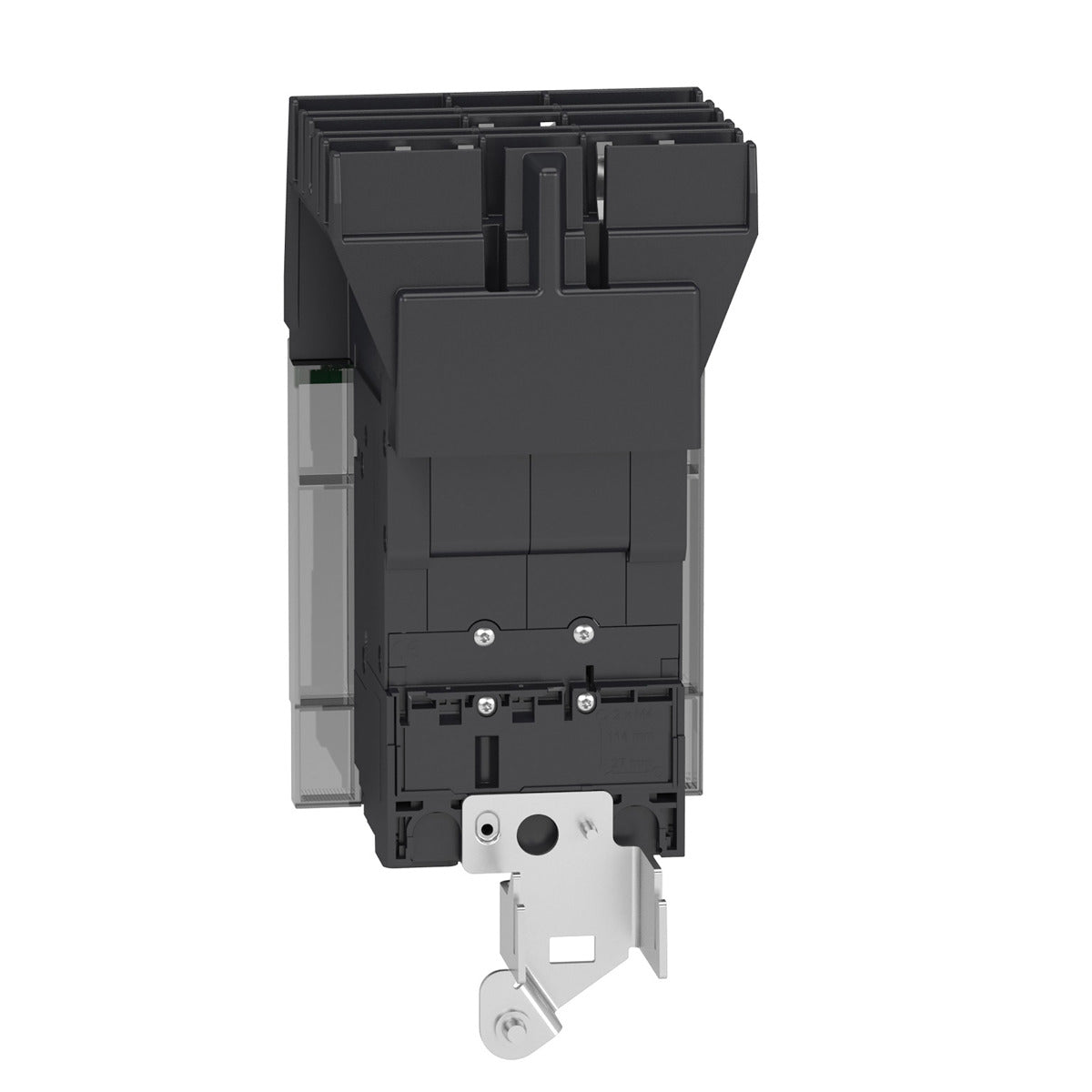

Schneider Electric BDA36020 Circuit Breaker PowerPacT B 20A 3 Pole 600Y/347VAC 14kA I-Line

Product Description

The Schneider Electric BDA36020 is a circuit breaker that provides thermal magnetic protection. It is designed for use in various electrical applications. This circuit breaker has a capacity of 14kA at 600Y/347VAC and is suitable for I-Line installations.

• Three-pole configuration for versatile installation.
• 80% continuous current rating with ABC phase connection.
• Dual-break rotating contacts help in reducing peak current during short circuits.

Product Highlights

This unit is essential for effective power distribution in commercial and industrial settings. Its design allows for easy installation and maintenance.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: United States

Technical Specifications

• Catalog Number: BDA36020
• Voltage Rating: 600Y/347VAC
• Current Rating: 20A
• Breaking Capacity: 14kA
• Compliance: UL, CSA, NOM, IEC
• Made in USA: Yes
• RoHS Compliance: Yes
• GTIN: 03606481152510
