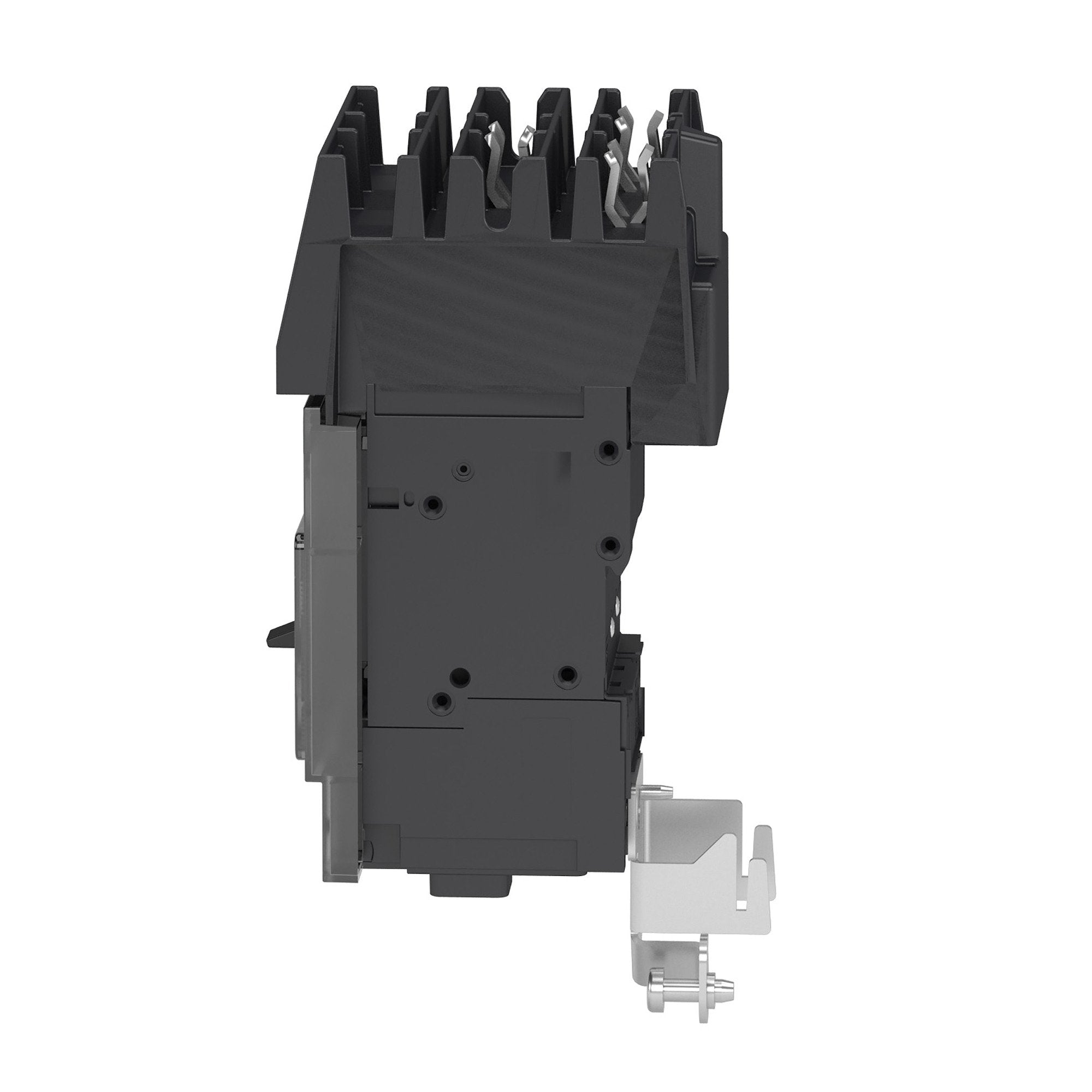

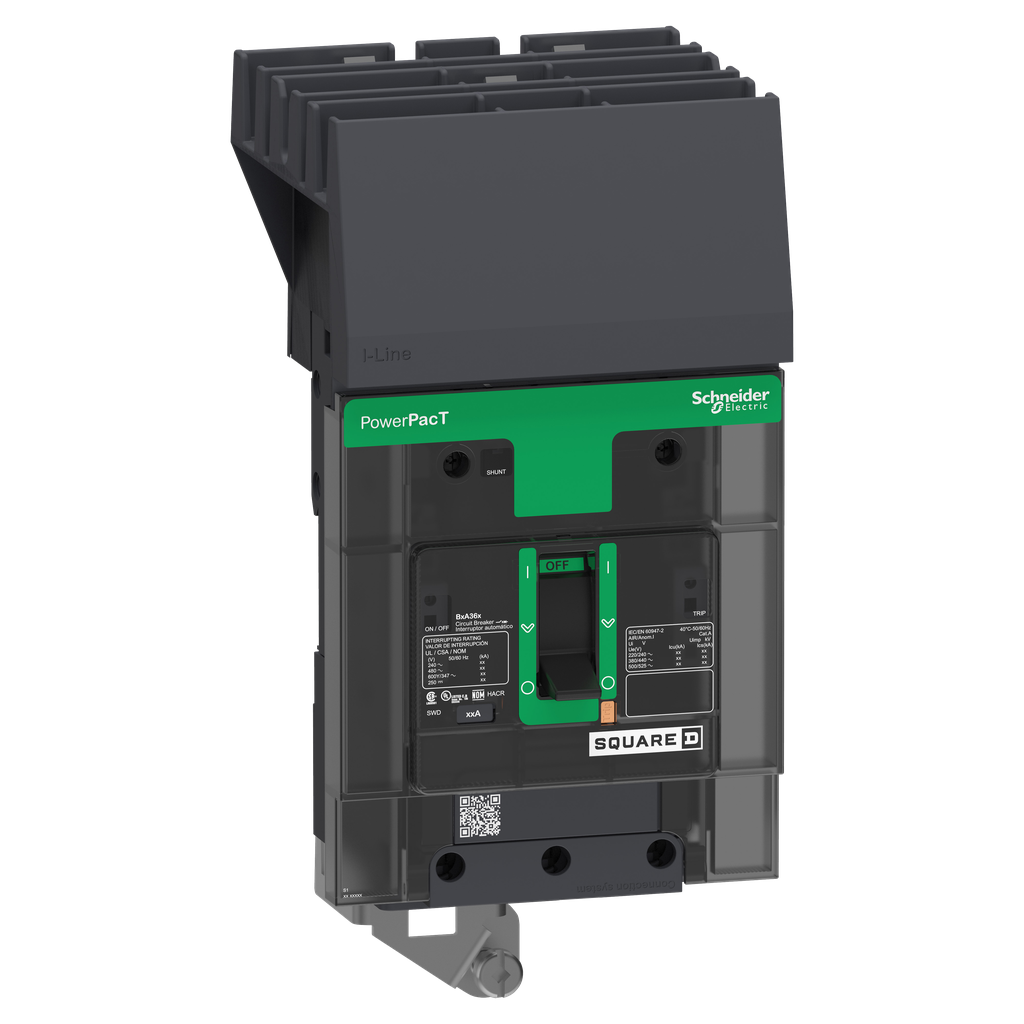

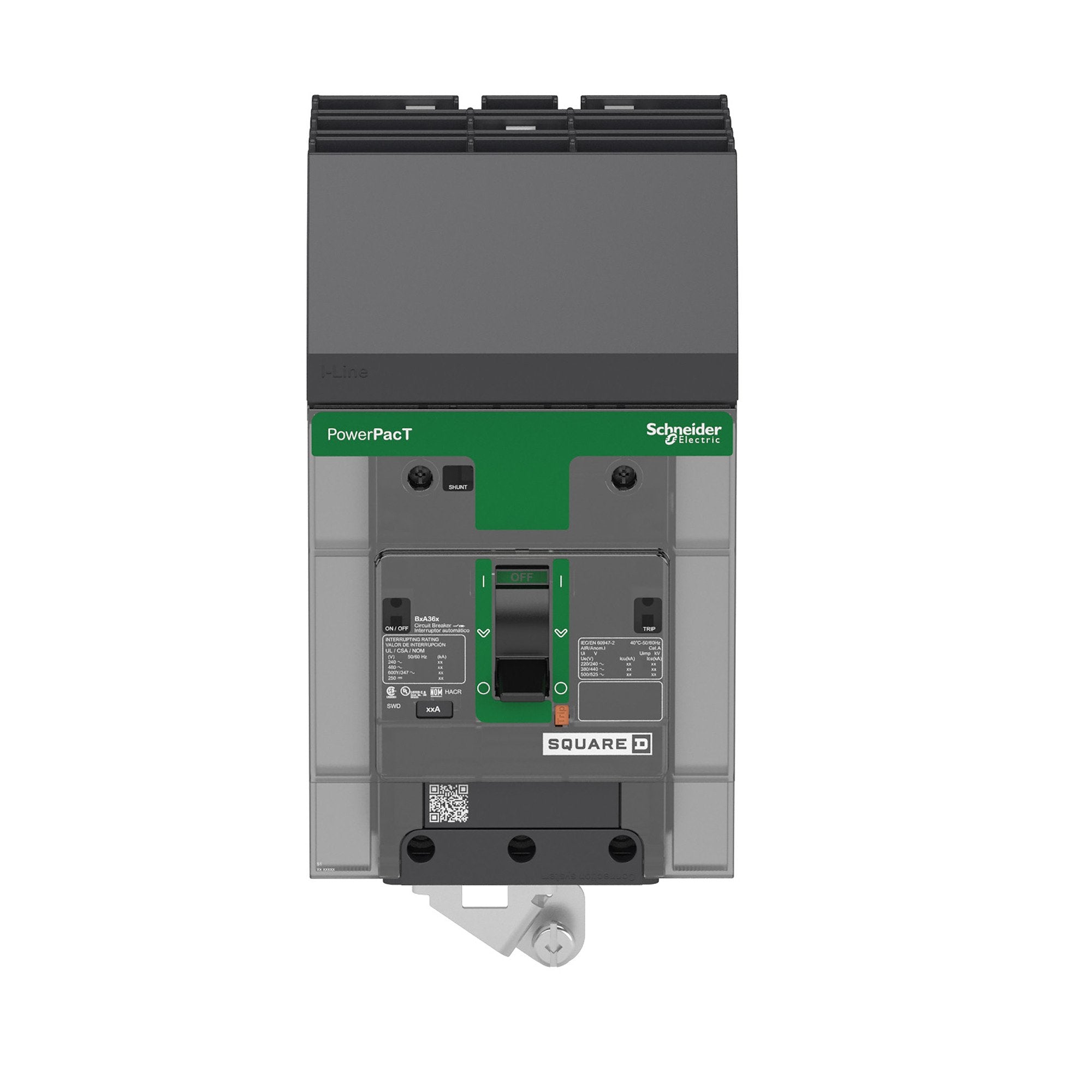

Schneider Electric BDA34100Y Circuit Breaker PowerPacT B 100A 3 Pole 480Y/277VAC I-Line

Product Description

The Schneider Electric BDA34100Y circuit breaker is part of the PowerPacT B-Frame series, designed to provide thermal-mechanical protection in a compact form. This unit features thermal magnetic circuit protection with a breaking capacity of 18kA at 480Y/277VAC.

• Thermal magnetic circuit protection
• Breaking capacity of 18kA at 480Y/277VAC
• Available in 1 to 3-pole configurations

Product Highlights

This circuit breaker includes dual-break rotating contacts to minimize peak current during short circuits. It has a manual push-to-trip feature, ensuring ease of use. The versatile construction allows for various mounting options, including an I-Line design with mechanical lugs.

Product Information

Standard Information

• Catalog Number: BDA34100Y
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage: 525 Volt
• Amperage: 100 Amp
• Number of Poles: 3 Pole
• Weight: 2.90 lb
• Dimensions: 4.8 inches x 3.2 inches x 4.5 inches
• Line Rated Current: 100-100 A
• Mounting Type: I-Line
• Compliant Standards: UL, CSA, NOM, IEC
