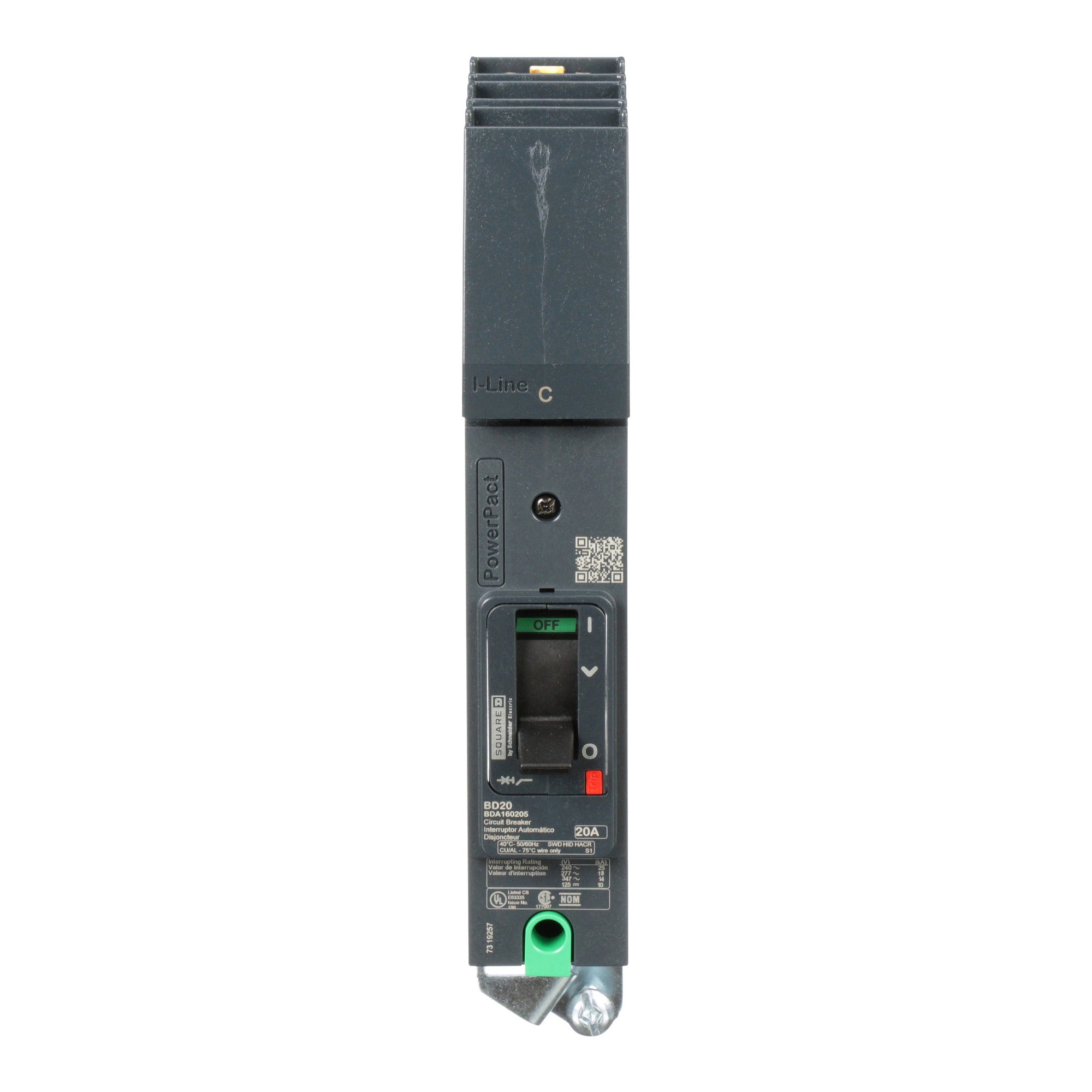

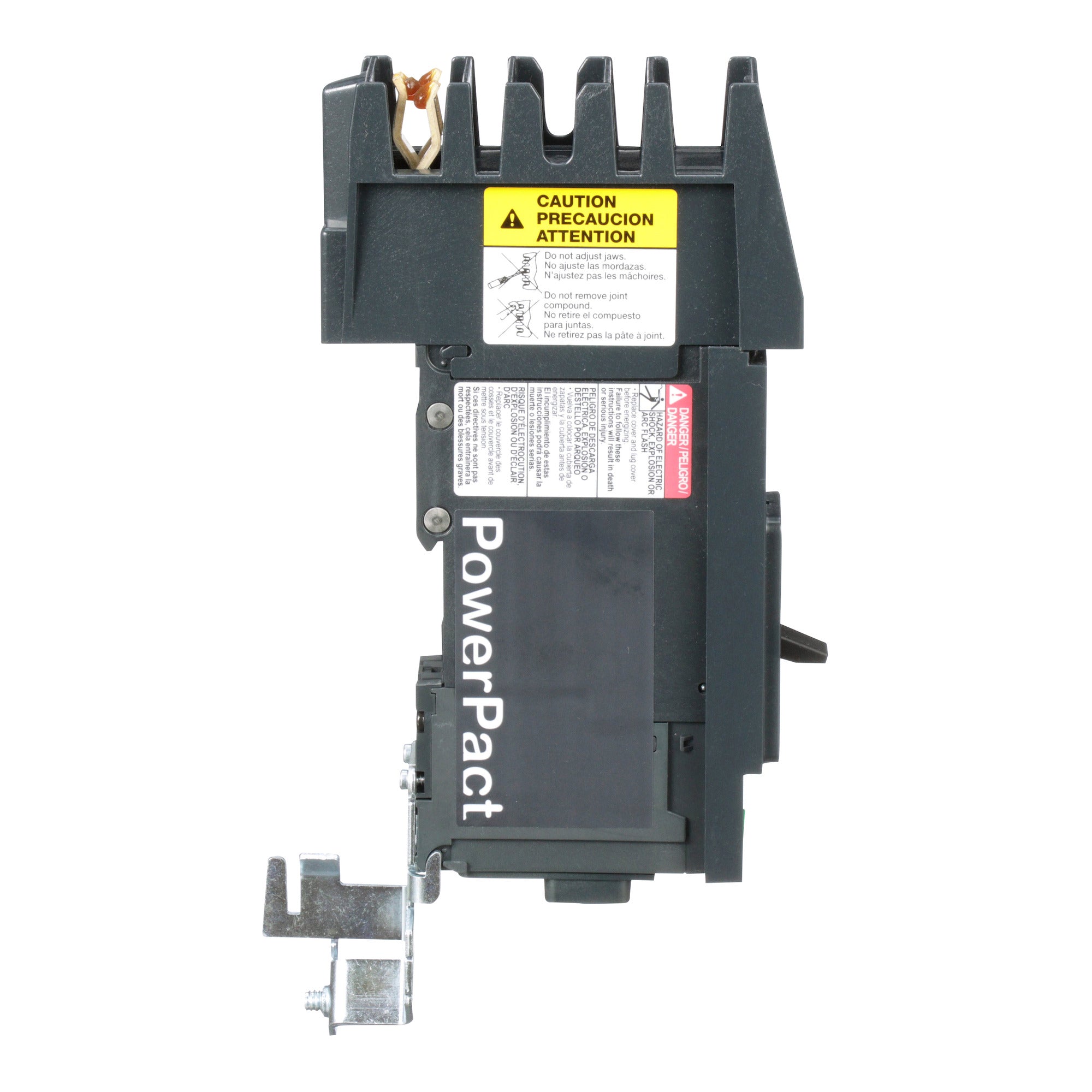

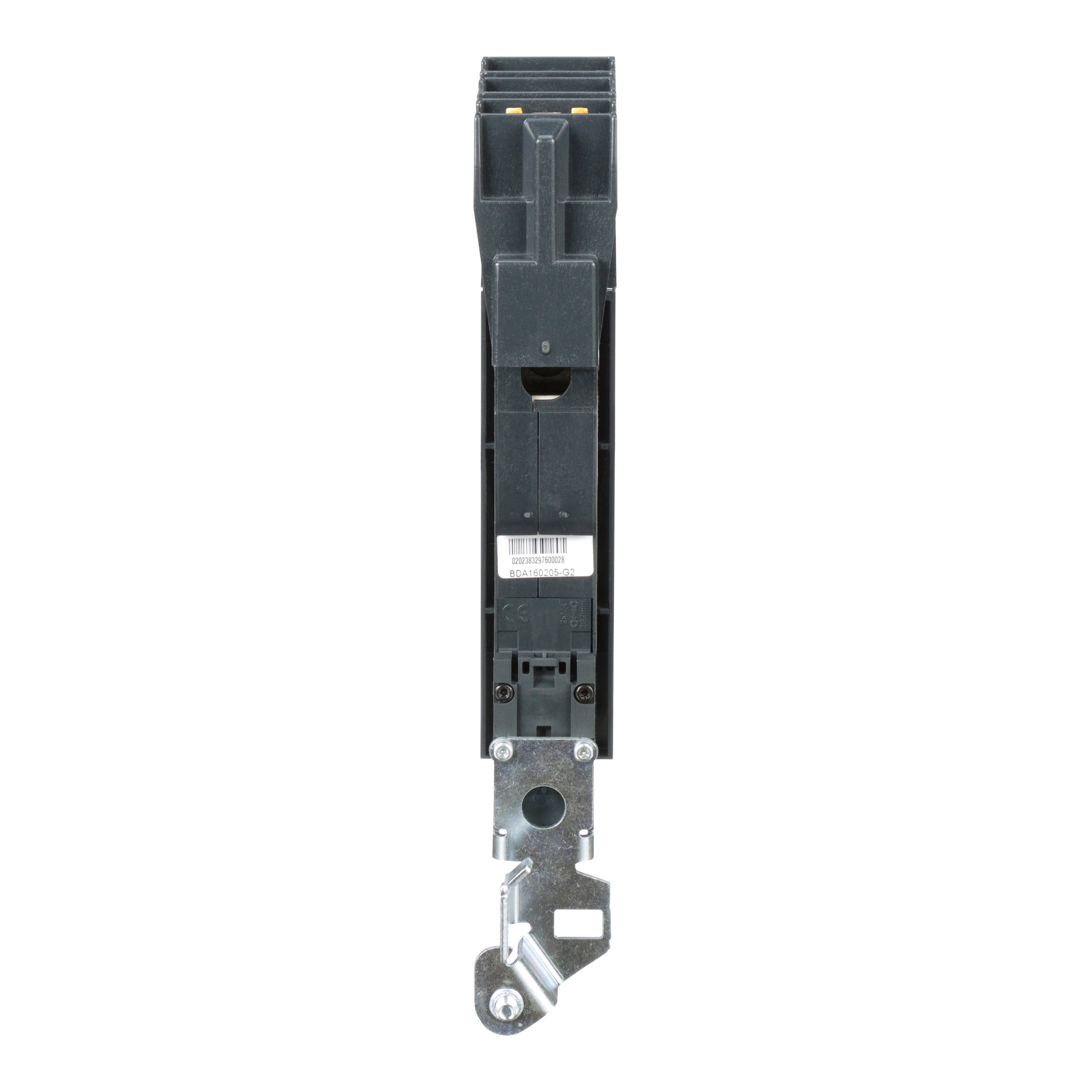

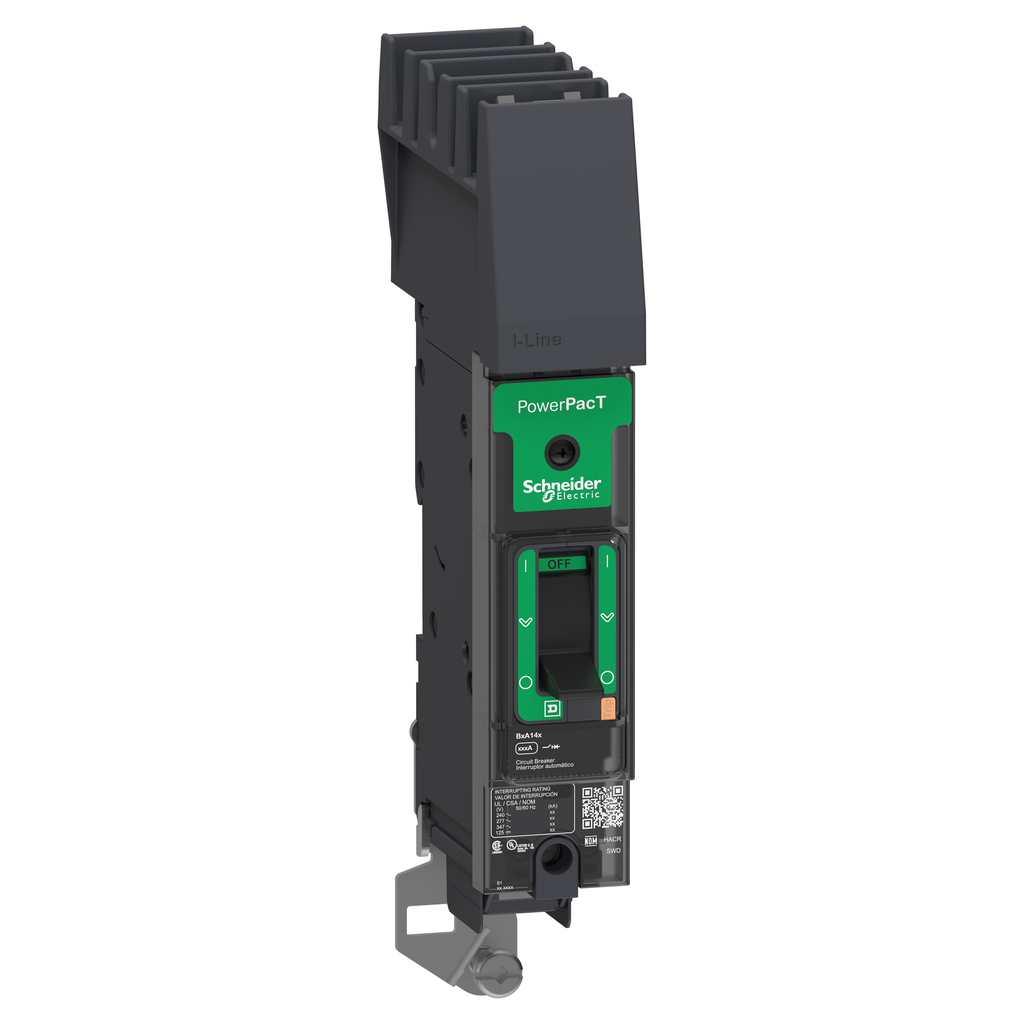

Schneider Electric BDA160205 Circuit Breaker, PowerPacT B, 20A, 1 Pole, 600Y/347VAC, 14kA, I-Line

Product Description

The Schneider Electric BDA160205 is a PowerPacT B-Frame circuit breaker designed for thermal-mechanical circuit protection with a compact size. This device provides thermal magnetic circuit protection with a breaking capacity of fourteen kiloamperes at six hundred volts Y/three hundred forty-seven volts alternating current.

• Rated current of twenty amperes
• Suitable for a range of applications with high breaking capacity
• Features integral push-to-trip button for manual tripping

Product Highlights

The circuit breaker comes equipped with dual-break rotating contacts that minimize peak current during short circuit faults. It is suitable for I-Line constructions and is compliant with UL, CSA, NOM, and IEC standards.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: BDA160205
• Voltage: 240 Volt
• Amperage: 20 Amp
• Number of Poles: 1 Pole
• Weight: 1.41 lb
• Length: 20 mm
• Width: 27 mm
• Height: 137 mm
