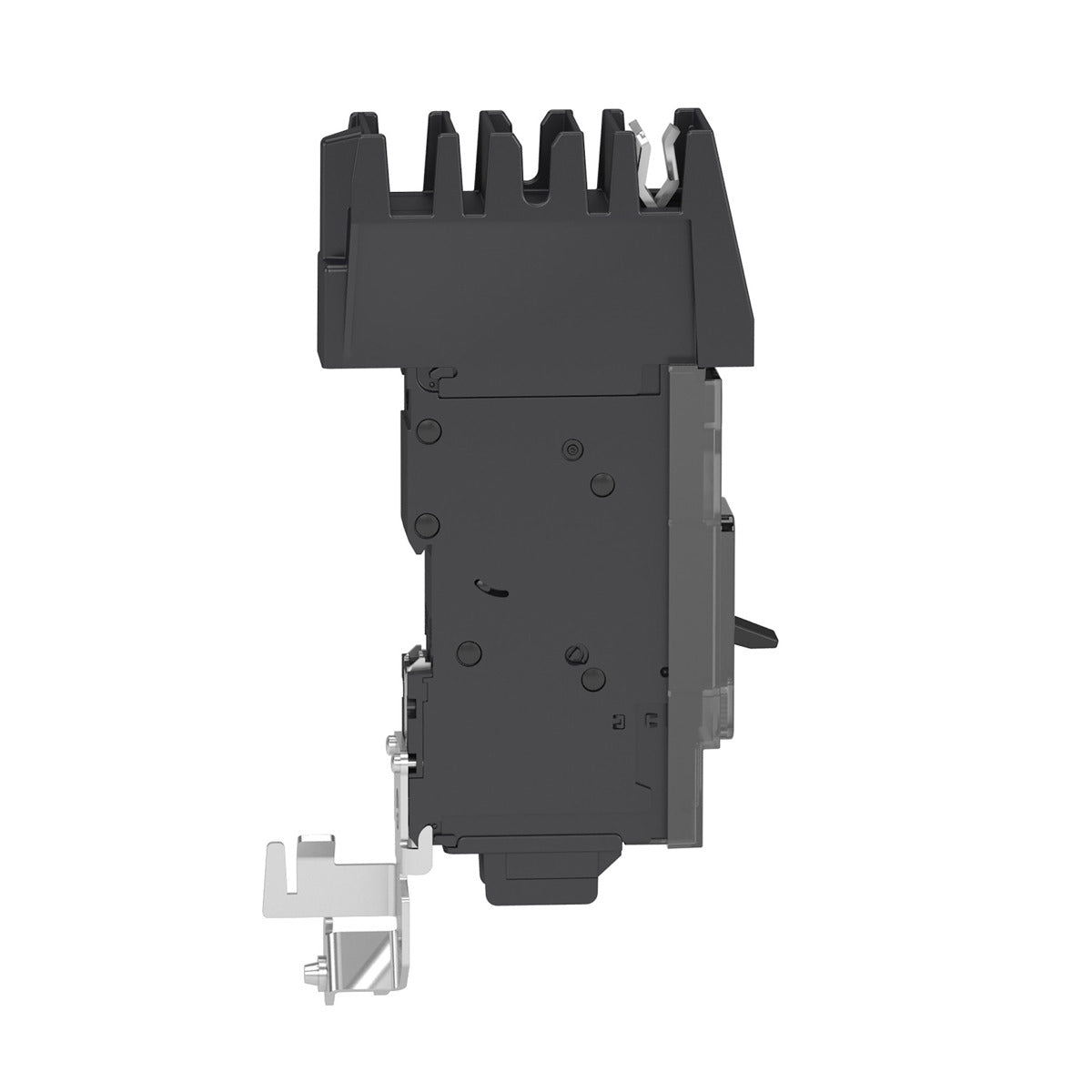

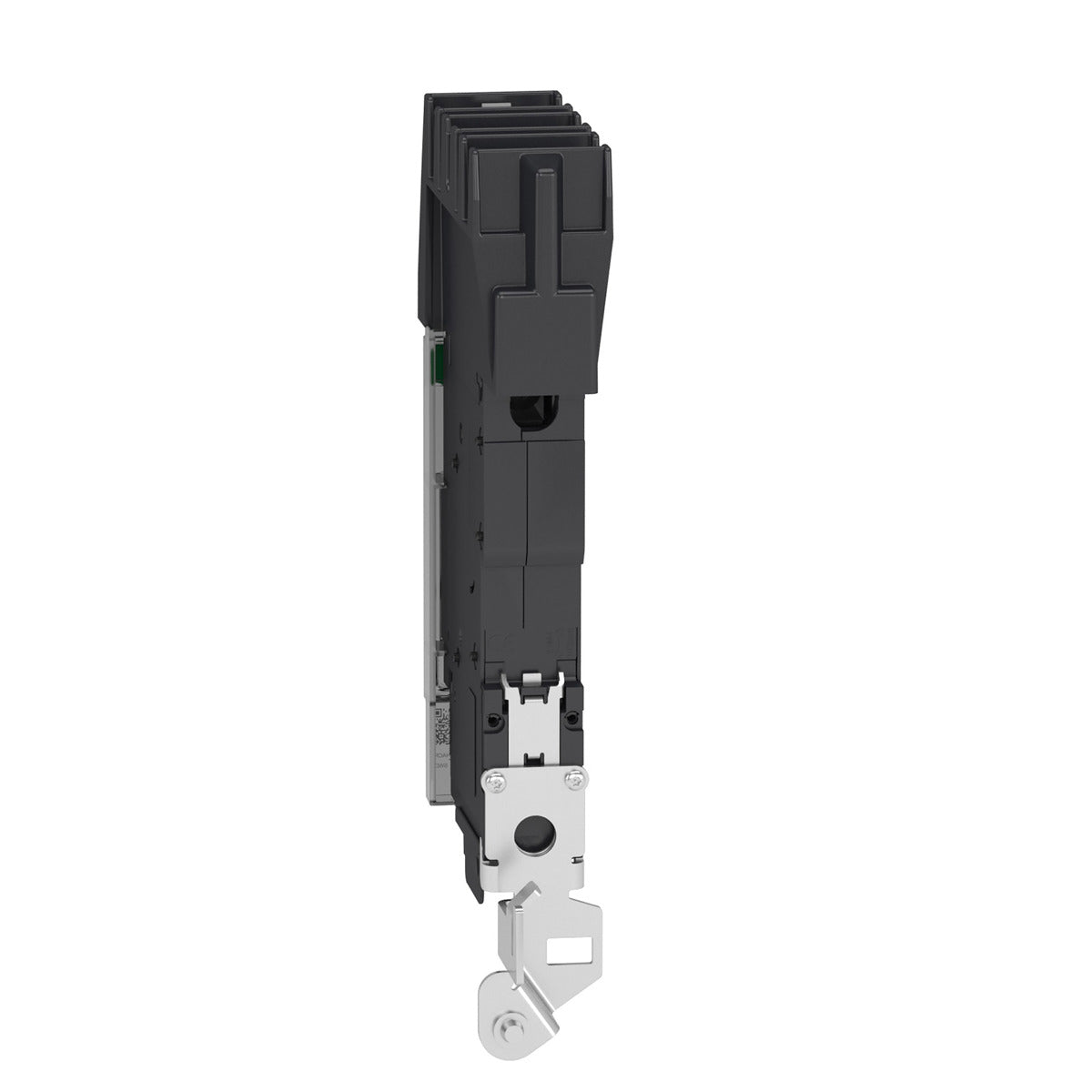

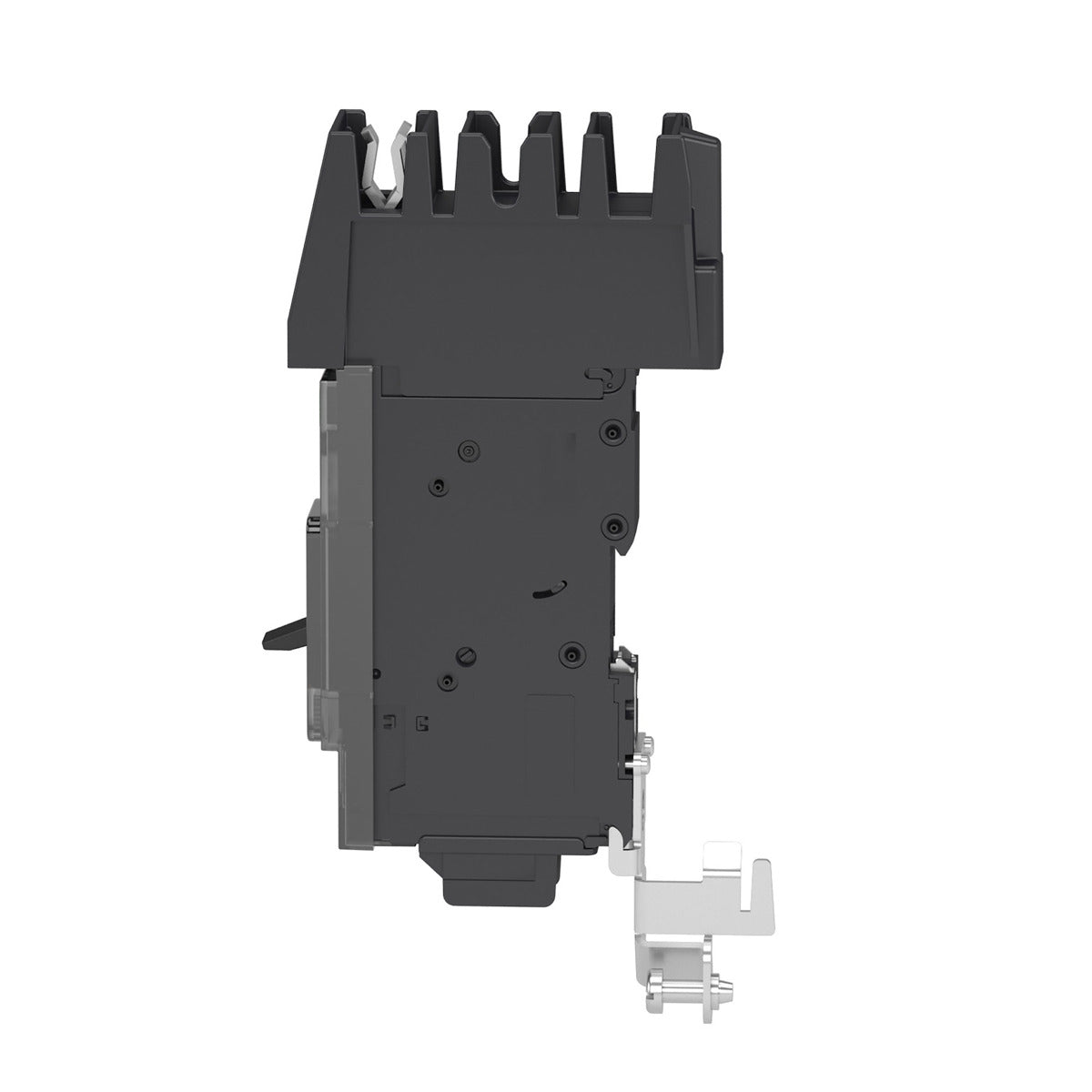

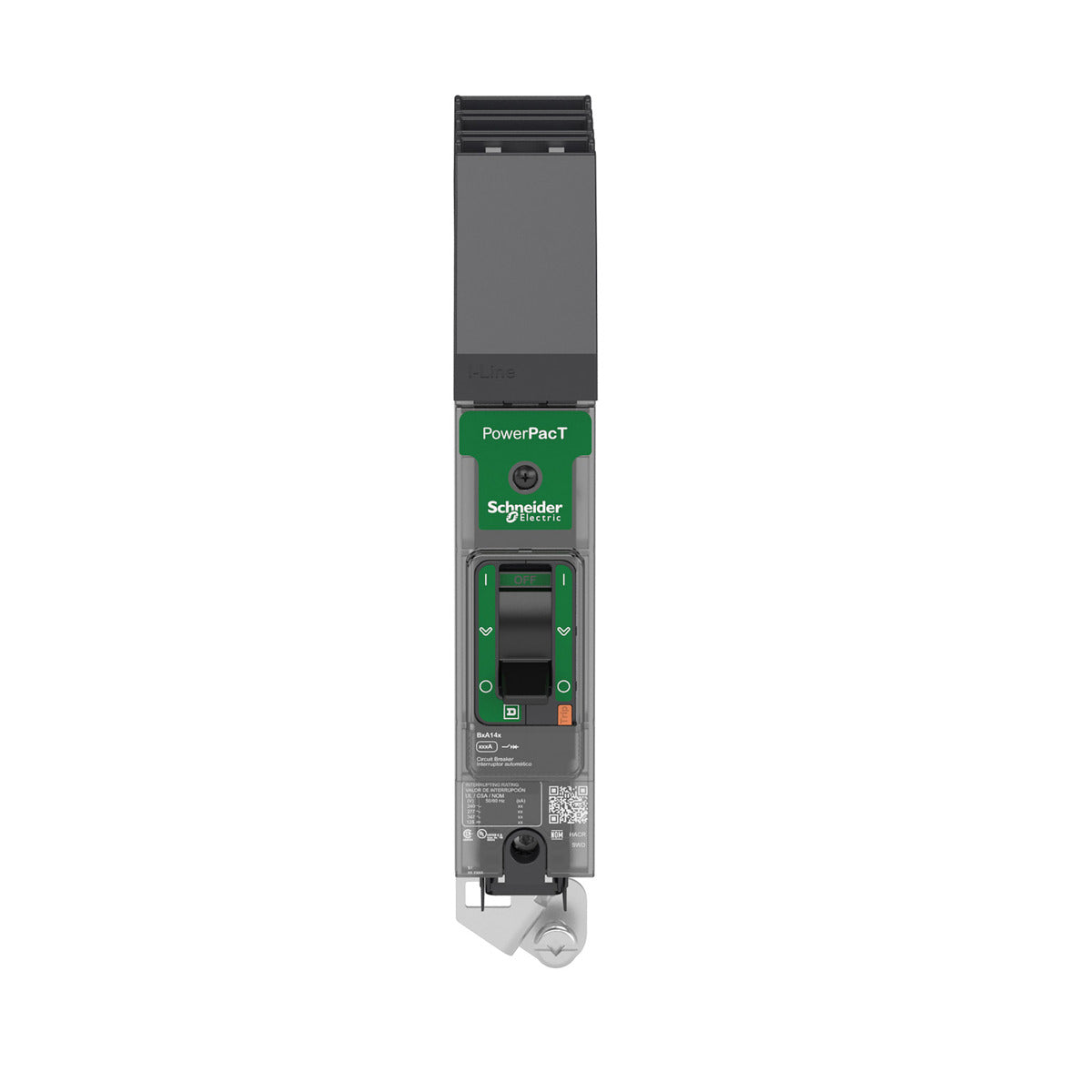

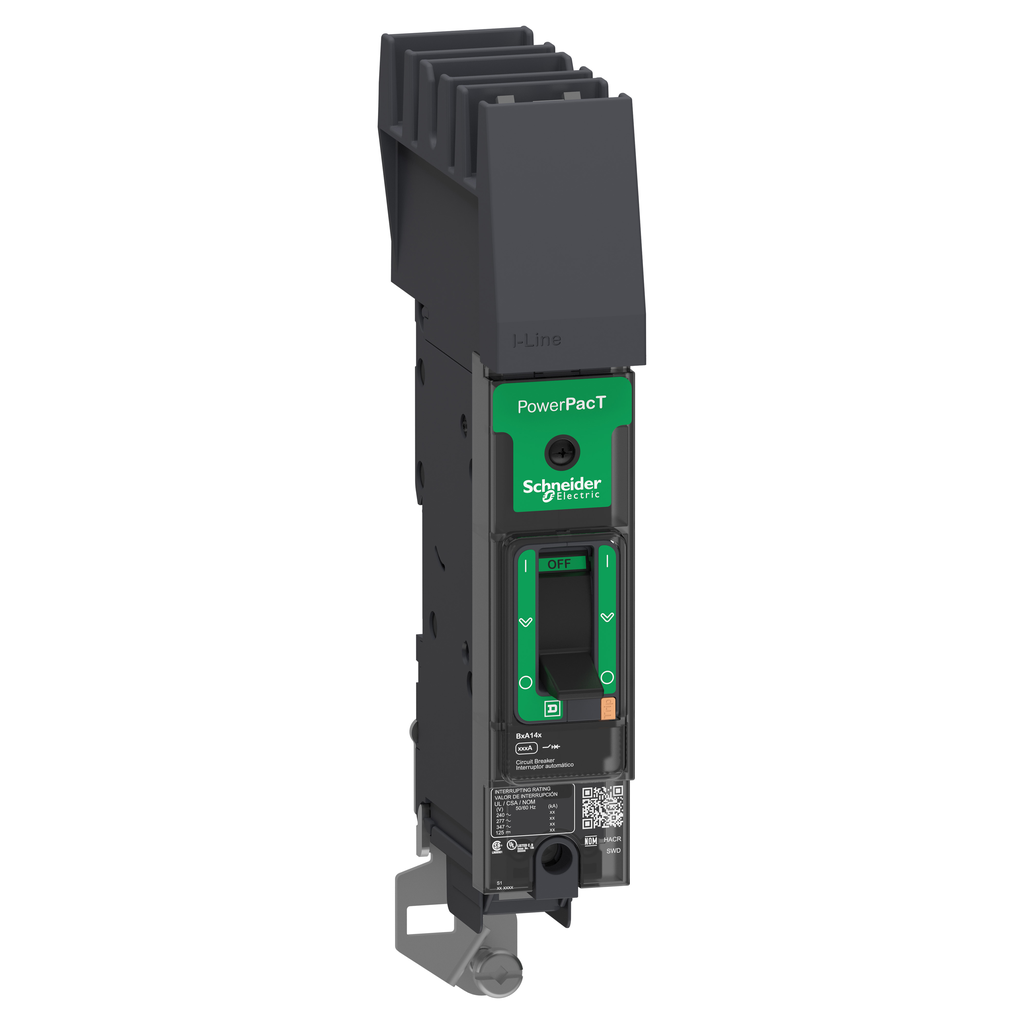

Schneider Electric BDA160203 Circuit Breaker 20A 1 Pole 600Y/347VAC 14kA

Product Description

The Schneider Electric BDA160203 is a thermal-mechanical circuit breaker designed for reliable protection in electrical systems. This circuit breaker has a maximum breaking capacity of fourteen kiloamperes (14kA) at six hundred volts line to ground (600Y/347VAC). The BDA160203 features dual-break rotating contacts, which limit peak current during a fault condition.

• One-pole construction with 20 amp continuous current rating.
• Manual trip button on the cover for easy operation.
• Complies with multiple standards including UL, CSA, and IEC.

Product Highlights

The PowerPacT B-Frame circuit breaker is compact and versatile, suitable for various applications within power distribution systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: BDA160203
• Current Rating: 20 Amps
• Voltage Rating: 240 Volts
• Breaking Capacity: 14kA
• Number of Poles: 1 Pole
• Dimensions: 5.51 inches (height), 3.54 inches (width), 3.50 inches (depth)
• Weight: 1.41 lb
• Country of Origin: Mexico
