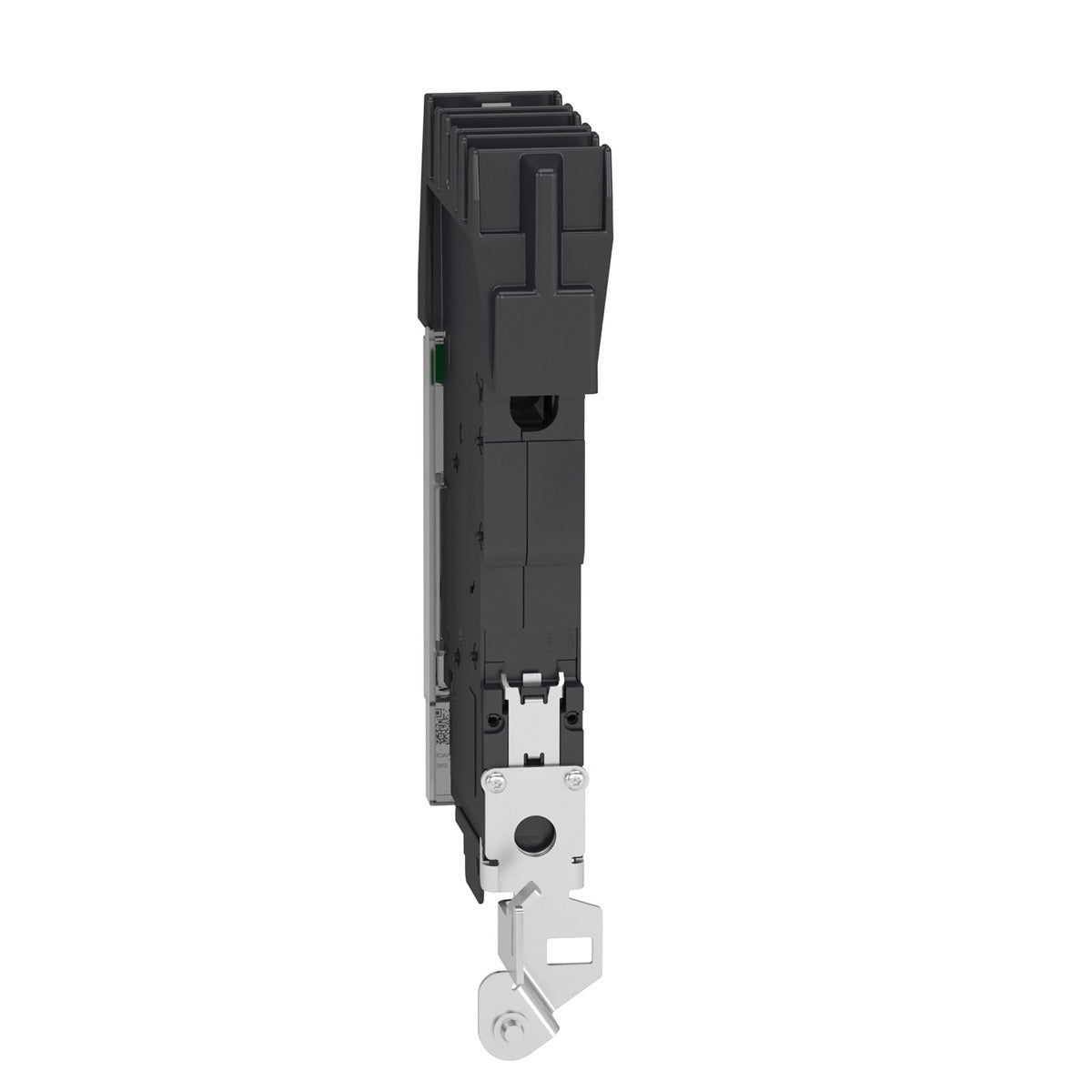

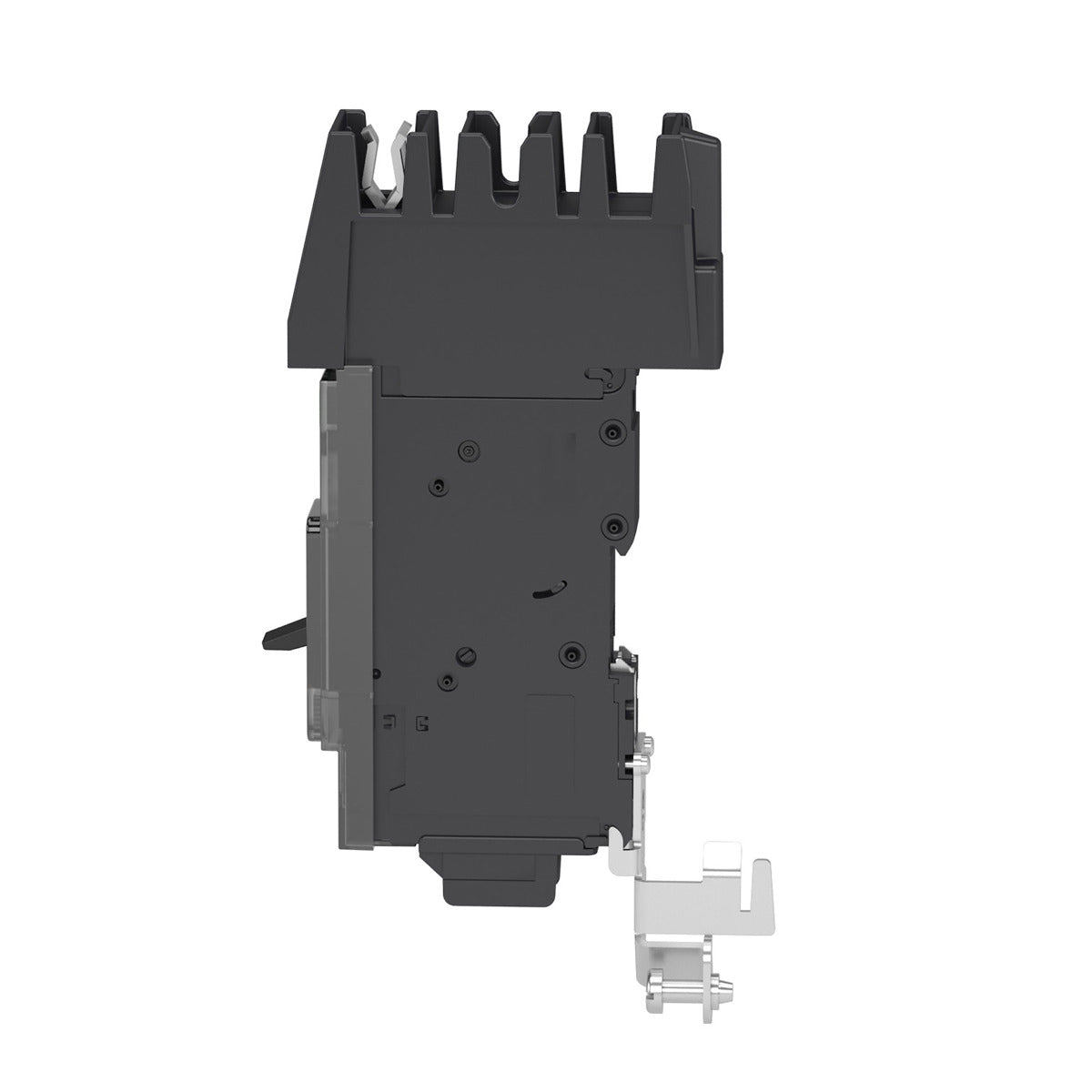

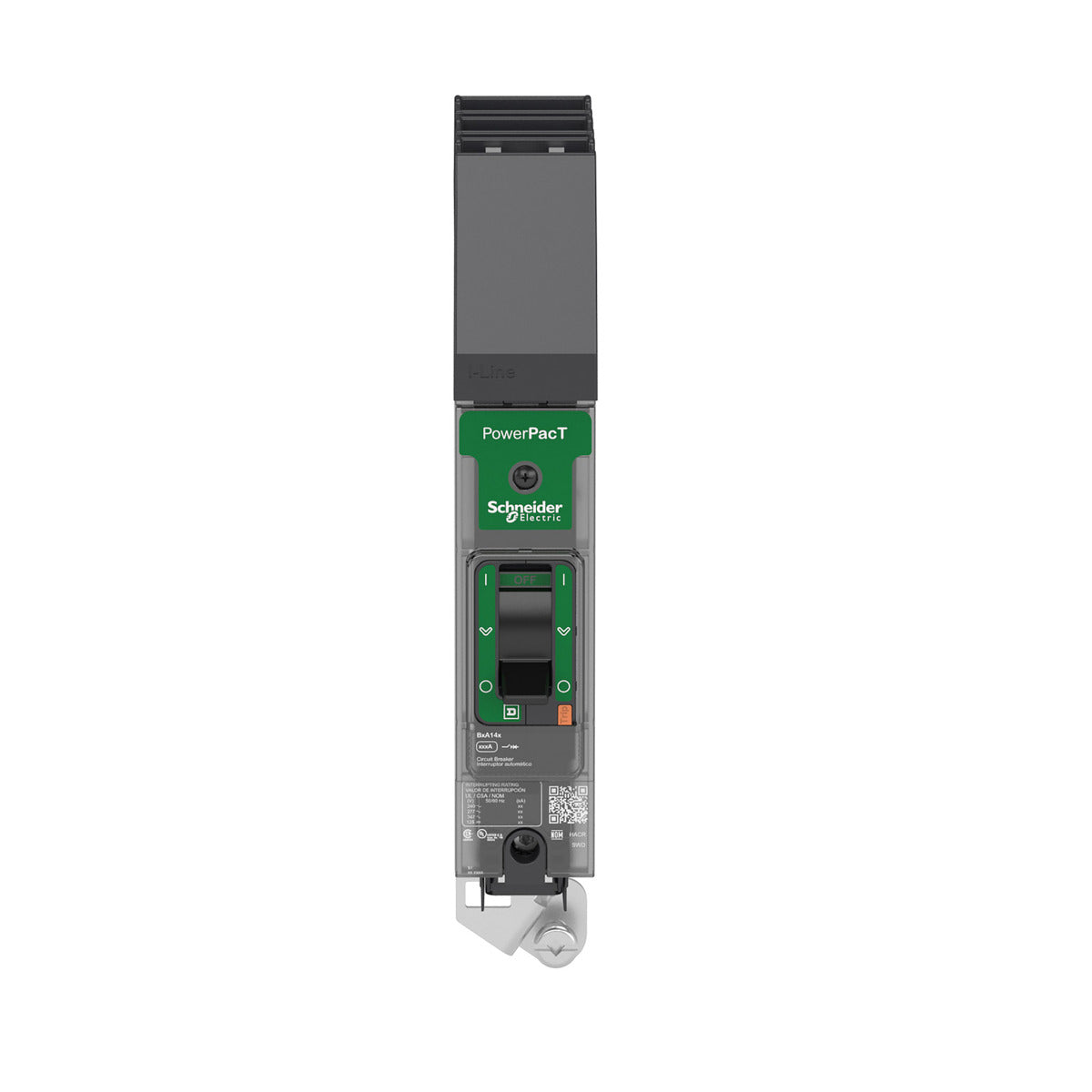

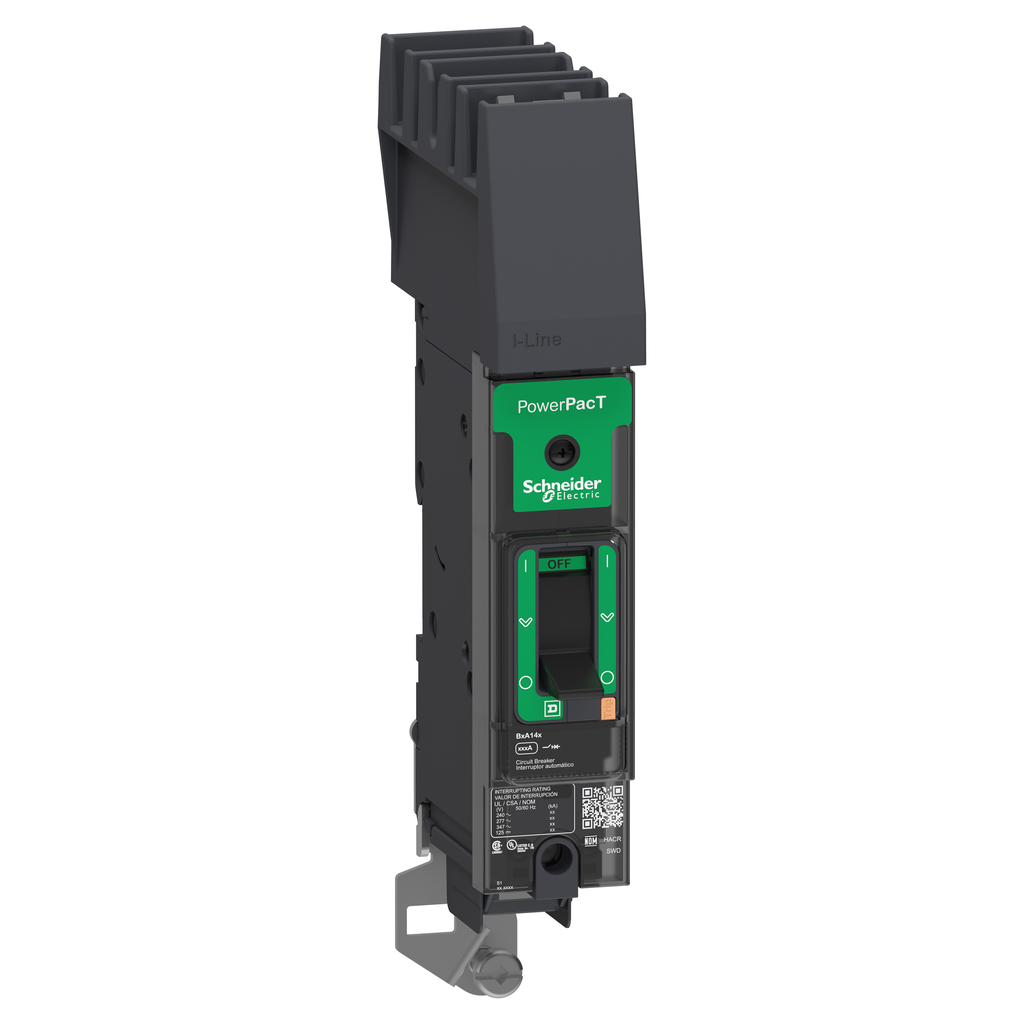

Schneider Electric BDA160201 Circuit Breaker PowerPacT B 20A 1 Pole 600Y/347VAC 14kA

Product Description

The Schneider Electric BDA160201 circuit breaker offers reliable thermal-mechanical circuit protection in a compact design. This unit provides thermal magnetic protection and achieves a breaking capacity of 14kA at 600Y/347VAC. It includes features such as dual-break rotating contacts to minimize peak current during faults and a push-to-trip button for manual operation.

• Capacity: 14kA at 600Y/347VAC
• Construction: 1-Pole I-Line
• Compliance: UL, CSA, NOM, IEC standards

Product Highlights

This circuit breaker is designed for efficiency and safety, ensuring compliance with multiple international standards.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: BDA160201

Technical Specifications

• Voltage: 240 Volt
• Amperage: 20 Amp
• Number of Poles: 1 Pole
• Country of Origin: Mexico
• Weight: 1.41 lb
• Mounting Type: I-Line
• Certifications: CCC, CSA, EAC, IEC, NOM, UL
• Storage Temperature: -50-85 degrees C
