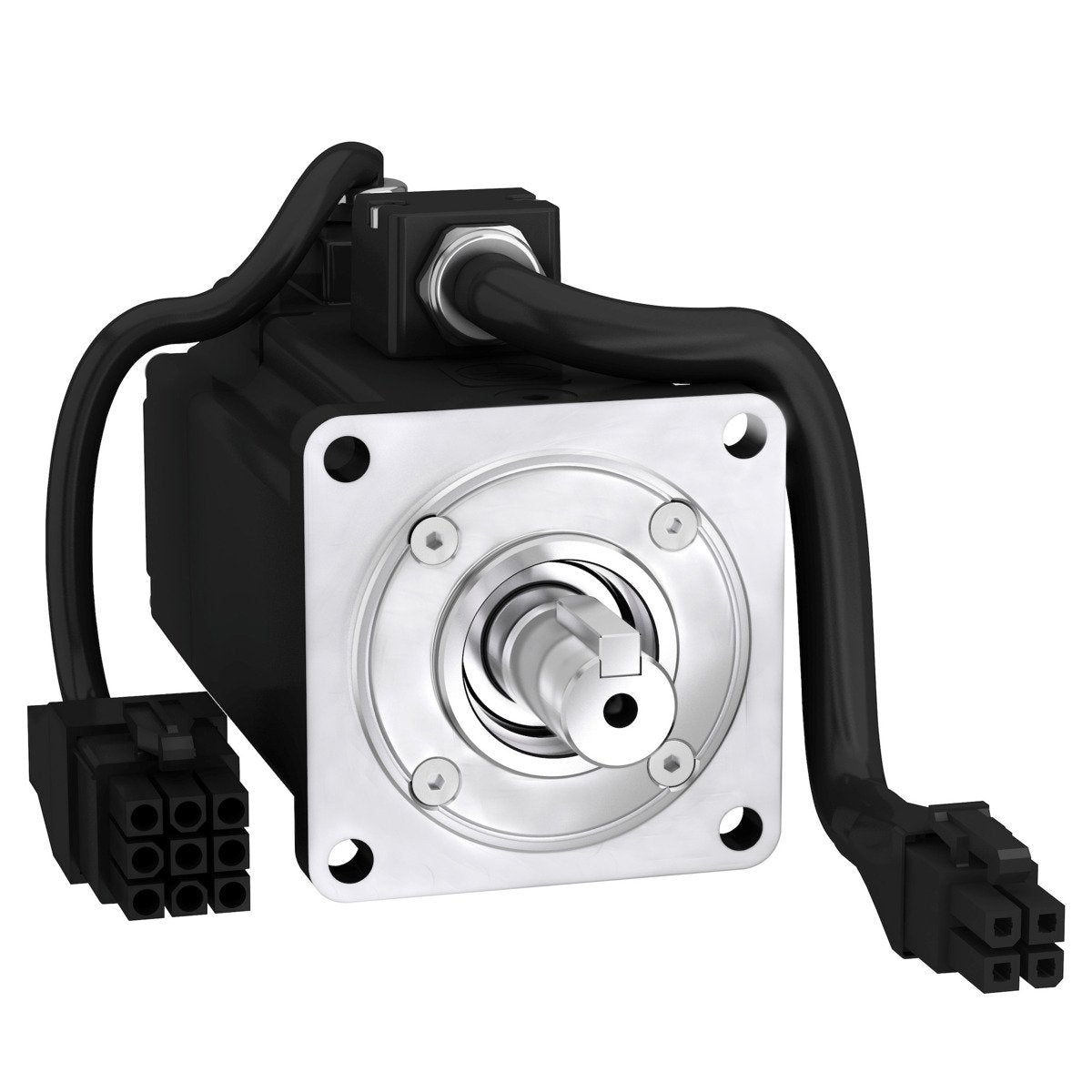

Schneider Electric BCH2LD0233CA5C servo motor BCH, Lexium 28, 60mm, 200W, 0.16kg.cm, with oil seal, with key, leads connection

Product Description

This Schneider Electric BCH2LD0233CA5C servo motor is part of the Lexium 28 range, designed for machines with power needs from 0.05 to 4.5kW. This brushless servo motor features a high moment of inertia with a maximum mechanical speed of five thousand RPM. It is IP65 rated and has a parallel keyed shaft, providing robust performance without a holding brake.

• Rated supply voltage of two hundred twenty volts.
• Continuous stall current of 1.11 amps.
• Dimensions: length one hundred four millimeters, width sixty millimeters.

Product Highlights

The BCH2LD0233CA5C servo motor supports a variety of applications with different inertia levels. It comes with a twenty-bit single-turn absolute encoder optimized for speed of rotation at three thousand RPM. With a rated power of two hundred watts, it weighs one point zero two kilograms and has a natural convection cooling system, making it suitable for compact machine installations.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: BCH2LD0233CA5C

Technical Specifications

• USA Made: Yes
• Manufacturer: Schneider Electric
• Country of Origin: United States
• Weight: 1.02 kg
• Continuous Power: 200W
• Diameter of Shaft: 14mm
• Length of Shaft: 30mm
• Cooling System: Natural convection
