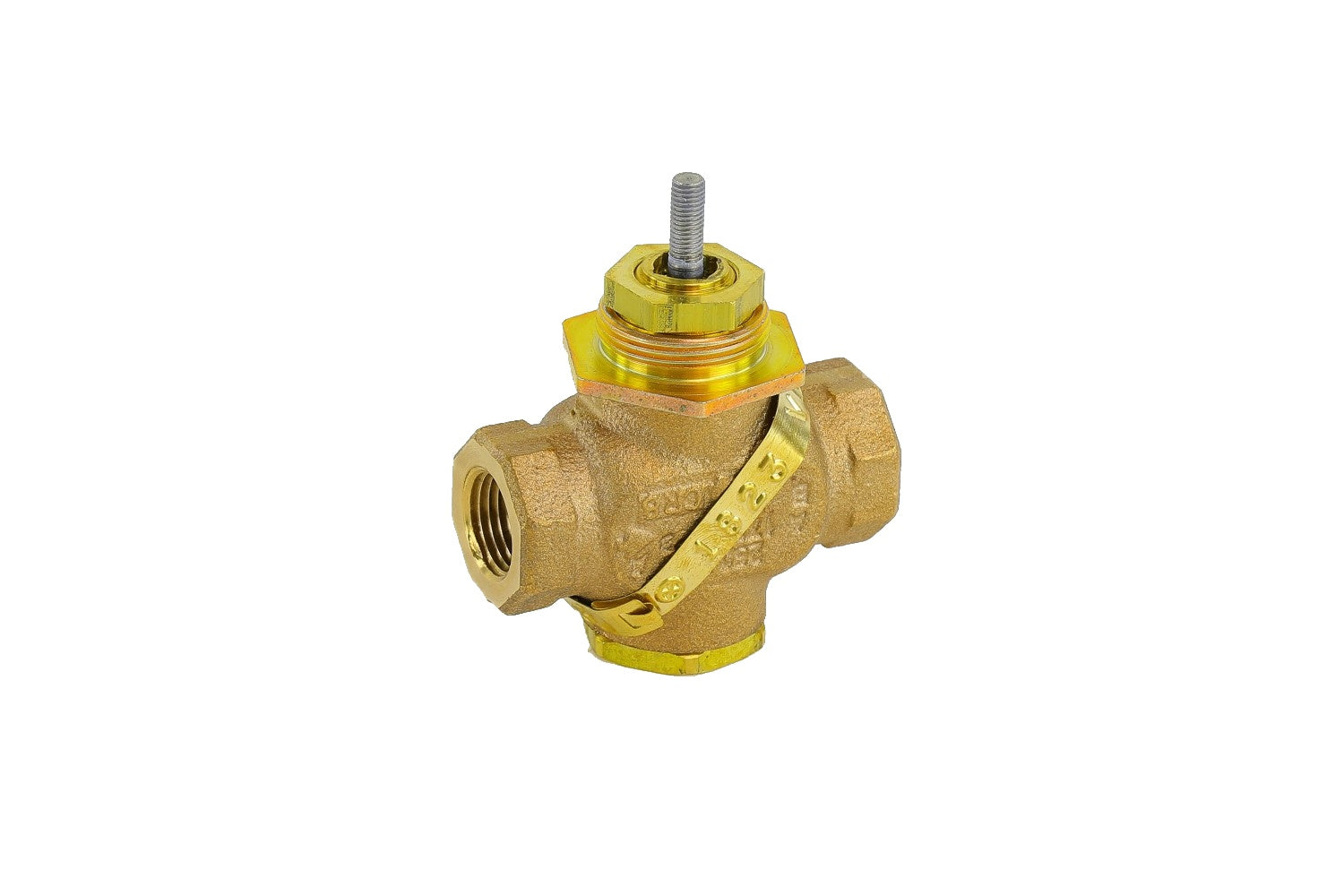

Schneider Electric VB-7253-0-4-3 Suo Steam Valve 2.2Cv 1/2 2-Way 20 Degrees to 340 Degrees F

Product Description

The Schneider Electric VB-7253-0-4-3 is a steam valve designed for heating systems. This valve is a two-way type with a flow capacity of 2.2 Cv. It operates in an ambient temperature range from twenty degrees to three hundred forty degrees Fahrenheit, making it suitable for various heating applications.

• Inlet and outlet size of one half inch NPT
• Compatible with hot water and steam systems
• Max inlet pressure of one hundred psig

Product Highlights

This valve is reliable for controlling steam flow in industrial settings. It is built to meet ANSI standards.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VB-7253-0-4-3

Technical Specifications

• Item: Suo Steam Valve 2.2Cv 1/2
• Inlet Size: 1/2 NPT
• Valve Type: 2-Way
• Outlet Size: 1/2 NPT
• For Use With: Hot Water and Steam
• Ambient Temp. Range: 20 Degrees to 340 Degrees F
• Max. Inlet Pressure: 100 psig
• Country of Origin: United States
