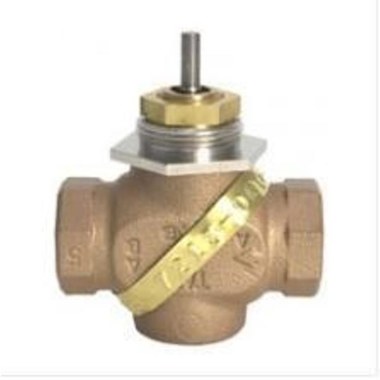

Schneider Electric VB-7223-0-4-10 Series Vb-7000 Two-Way Globe Valve Body 1-1/2 Port Size

Product Description

The Schneider Electric VB-7223-0-4-10 Series Vb-7000 is a two-way globe valve body designed for precise flow control. This valve body is suitable for chilled water, hot water, and steam applications. It is constructed to provide accurate control with a high differential pressure rating.

• Fine, accurate control with high range ability
• Energy-efficient tight sealing
• Suitable for all Schneider Electric actuators

Product Highlights

This valve body is ideal for HVAC systems, water treatment, and other industrial applications demanding reliable flow control. It's built with durable materials, ensuring high performance in various conditions.

Product Information

Standard Information

• Brand: Schneider Electric (Barber Colman)
• MPN: VB-7223-0-4-10

Technical Specifications

• Port Size: 1-1/2 inches
• Flow Capacity: 28 Cv
• Valve Operation: Normally Closed
• Connection Type: NPT Threaded
• Differential Pressure Rating: Up to 87 psi
• Compliance: RoHS, ANSI, PED, CRN
• Country of Origin: United States
• Weight: 5.67 lbs
• Length: 6.4 inches
• Width: 7.35 inches
• Height: 3.25 inches
