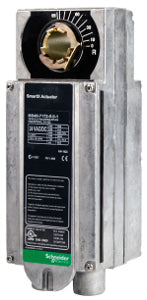

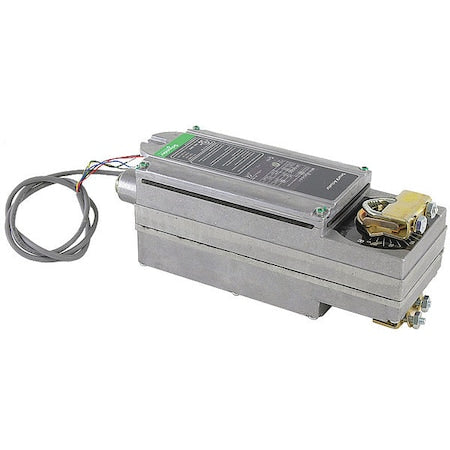

Schneider Electric MF41-6343 Electric Actuator 24V 300 lb-in NEMA 4 - Replacement MF41-6343

Product Description

The Schneider Electric MF41-6343 Electric Actuator is designed for precise control in HVAC systems. Ideal for regulating air flow through damper control, this actuator operates at 24V with a robust 300 lb-in torque capacity and is housed in a NEMA 4-rated enclosure for enhanced durability against environmental elements.

• Accessible 3 ft appliance cable for easy installation.
• Supports both 2-position and floating point control.
• Non-spring return functionality for reliable operation.

Product Highlights

This electric actuator is well-suited for tasks that require a high degree of reliability and precision. Its robust design ensures consistent performance.

Product Information

Technical Specifications

• Power Supply: 24V ac/dc.
• Torque:: 300 lb-in.
• Control Type: 2-position / floating.
• Enclosure Rating: meets NEMA 4 standards.
• Cable: 3 ft appliance cable included.
• Dimensions: Height: 9.02 inches, Length: 4.49 inches, Width: 12.01 inches.
• Weight: 4.2 pounds.
