Schneider Electric AL-190 24V Air Valve 1/4 Inch Comp .59 Scfm Replacement AL-190

Product Description

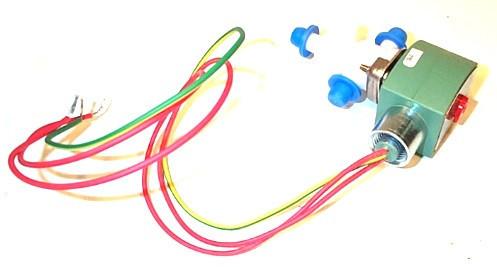

The Schneider Electric AL-190 Solenoid Air Valve offers reliable operation with its durable plastic body and is designed for pneumatic device applications. This valve operates at a 24V AC, accommodating a flow rate of 1020 scim with its 3-way configuration.

• Efficient 24 VAC, 60 Hz coil operation
• Plastic body resistant to corrosion ensuring longevity

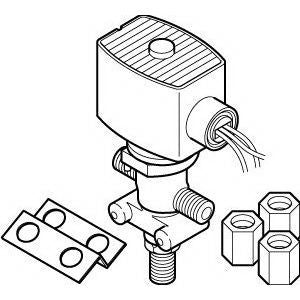

• Includes mounting bracket and fittings for 1/4 inch OD plastic tubing

Product Highlights

Suitable for temperatures ranging from 32 to 130 degrees Fahrenheit and features NEMA Type 4X enclosure for enhanced protection under various environmental conditions. It is ideal for vertical mounting and supports a wide range of pneumatic applications.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: AL-190

Technical Specifications

• Pressure Rating: 30 psig
• Body Material: Plastic
• Valve Configuration: NC/NO
• Coil Voltage: 24 VAC, 60 Hz
• Dimensions: 1-5/8 inches L x 3-7/16 inches W x 4-5/16 inches H
• Flow Rate: 1020 scim
• Electrical Connection: 18 inch lead on the coil
