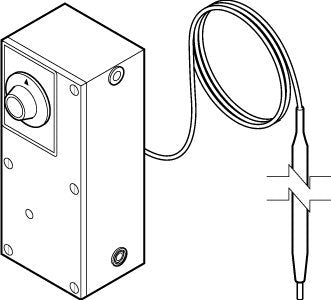

Schneider Electric TK-4012 Pneumatic Thermostat for Direct Acting Heating

Product Description

The Schneider Electric TK-4012 is a pneumatic bulb thermostat designed for precise temperature control in HVAC systems. It regulates pneumatic valves and actuators to maintain controlled air flow, contributing to the efficiency of heating and cooling systems.

• Direct acting mechanism ensures reliable operation.
• Includes a right angle mounting bracket for easy installation.
• Adjustable temperature settings ranging from 30 to 90 degrees Fahrenheit.

Product Highlights

Known for its robust performance, the TK-4012 supports up to 15 psi supply air pressure and withstands temperatures up to 140 degrees Fahrenheit. It features a simple top mounting configuration, enhancing both installation and maintenance processes.

Product Information

Technical Specifications

• Brand: Schneider Electric
• Model: TK-4012
• Type: Pneumatic, Direct Acting, Heating
• Supply Air Pressure: 15 psi
• Max Safe Air Pressure: 30 psig (207 kPa)
• Max Case Temperature: 140°F (60°C)
• Mounting: Top mounting holes or with a right angle mounting bracket
• Dimensions: Height: 4-5/8 inches, Width: 2-1/8 inches, Length: 1-5/8 inches
