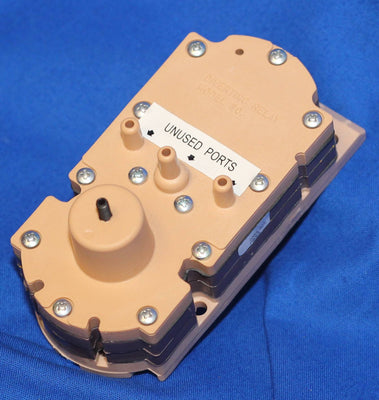

Schneider Electric 2354-501 Pneumodular Diverting Relay

Product Description

The Schneider Electric 2354-501 Pneumodular Diverting Relay is an essential component for specialized air flow management in pneumatics. Primarily used in HVAC systems, this SPDT switching relay operates efficiently between 4-8 psig. At pressures below 4 psig, the NO and C ports are connected, while above 8 psig, the NC and C ports connect, ensuring versatile application.

• Efficient SPDT functionality for diverse pneumatic applications.
• Rated for 60 SCFH air capacity with precise control.
• Compatible with tubing sizes 1/4 inch O.D. and 5/32 inch I.D.

Product Highlights

Constructed with high-quality materials, the unit is robust and designed for long-term service in industrial environments. Its compact design and ease of installation make it ideal for system upgrades and maintenance.

Product Information

Technical Specifications

• Item Number: 2354-501
• Switching Type: SPDT
• Pressure Settings: 4-8 psig
• Air Capacity: 60 SCFH
• Connection Type: Barbed nipples for tubing
• Size Compatibility: 1/4 inch O.D., 5/32 inch I.D.
