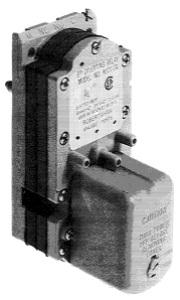

SCHNEIDER ELECTRIC 2368-502 Pneumodular Electric-Pneumatic Relay 110V SPDT

SKU / MPN: 2368-502


In Stock - Ships Same Day if Ordered by 12pm



100% Fit



HAVE A QUESTION? Our friendly team is ready to help!

Product Information

Product Description

The Schneider Electric 2368-502 is a pneumodular electric-pneumatic relay designed for industrial use. This relay facilitates accurate control and automation within systems, utilizing SPDT switching capabilities powered by a 110V source.

  • 110V SPDT configuration allows for versatile control connections.
  • Optimal air pressure between 20 to 25 psig for reliable operation.
  • Adaptable to 1/4 inch O.D. or 5/32 inch I.D. tubing via barbed nipples.

Product Highlights

This relay is crafted to enable efficient energy management within HVAC systems and other industrial machinery requiring precise pneumatic control. The unit switches between 'normally open' to 'normally closed' positions based on coil activation, ensuring flexible response under varied conditions.


  • Main Air Pressure: 20 to 25 psig
  • Air Capacity: 60 SCFH
  • Air Consumption: 29 SCIM
  • Electrical Configuration: SPDT
  • Voltage: 110V
