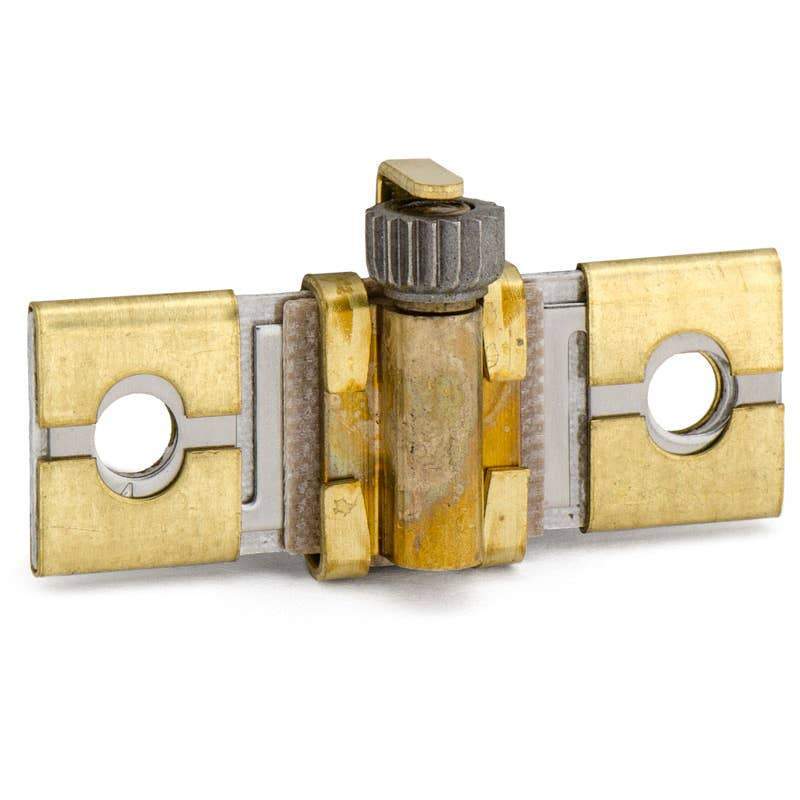

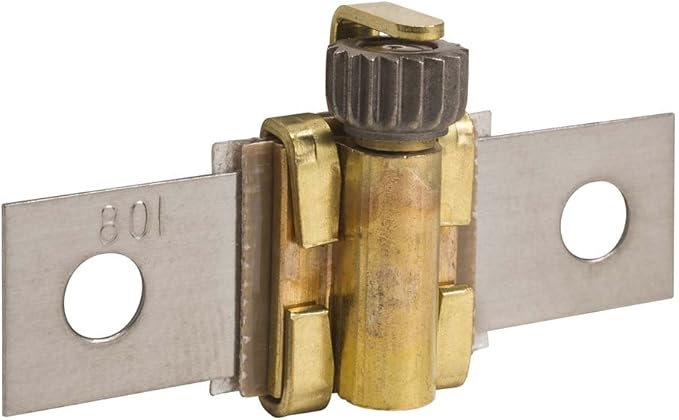

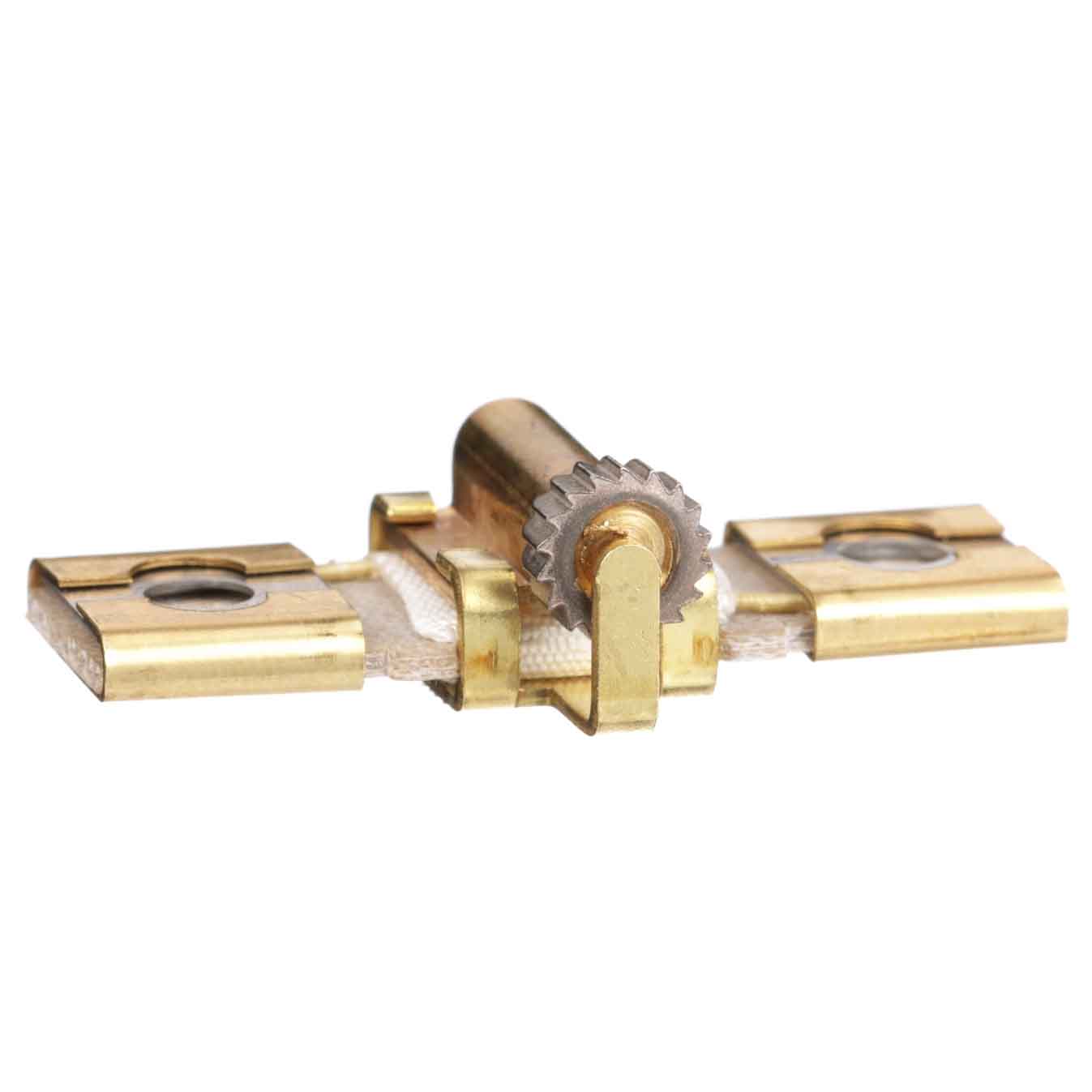

Schneider Electric B22.0 Overload Relay Thermal Unit

Product Description

The Schneider Electric B22.0 is a thermal unit for use with Square D motor starters in NEMA sizes 00, 0, 1, 1P, and 2. This unit is designed with a melting alloy sensing method for effective operation. The plug-in mounting feature facilitates easy installation.

• Plug-in mounting compatible with Square D products
• Standard thermal overload functioning
• Melting alloy sensing mechanism for reliability

Product Highlights

Use this overload relay thermal unit to protect motors from overheating.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric / Square D

Technical Specifications

• Motor Tripping Class: 20
• Sensing Method: Melting Alloy
• Full Load Amps: 12 to 18 Amp
• Trip Type: Standard Trip
