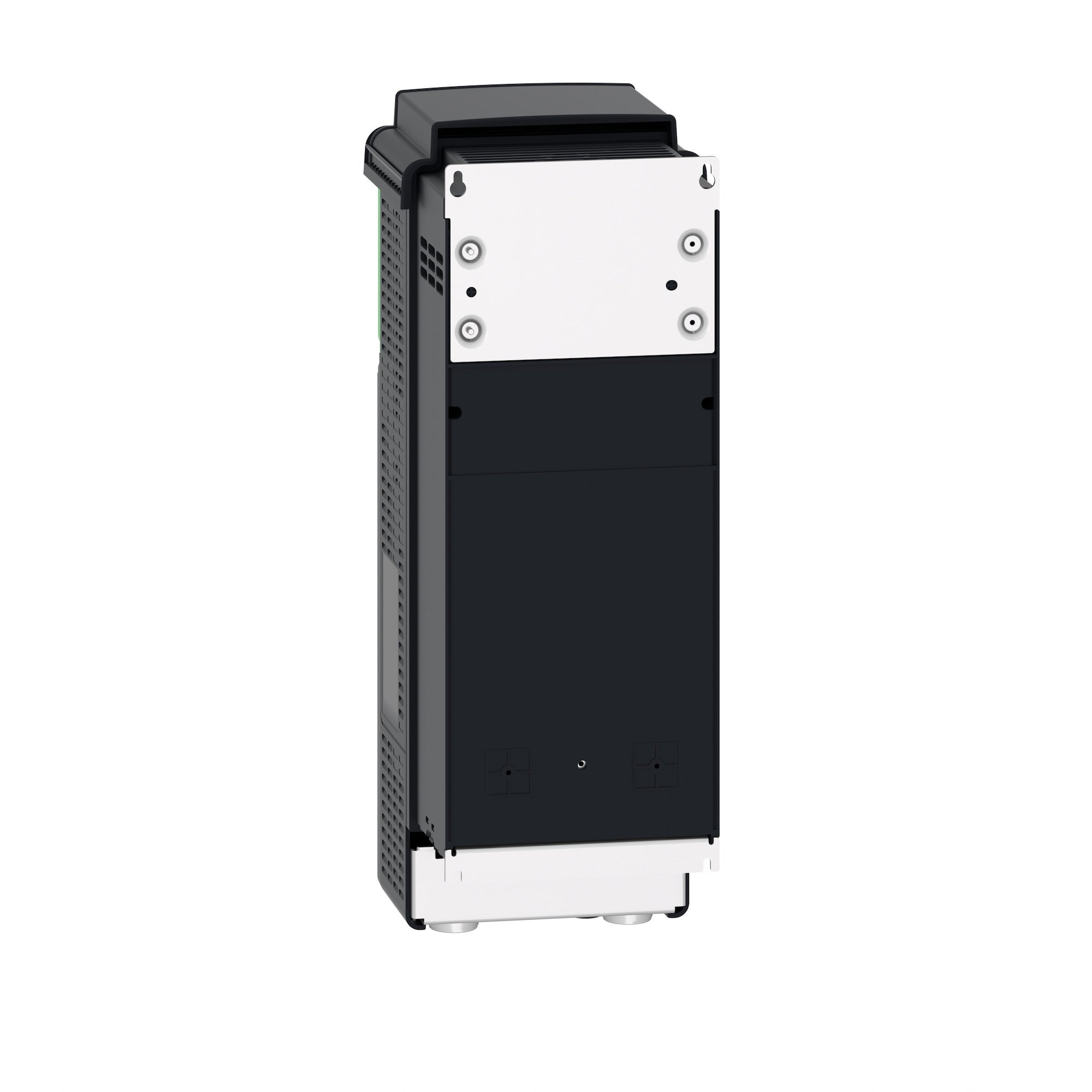

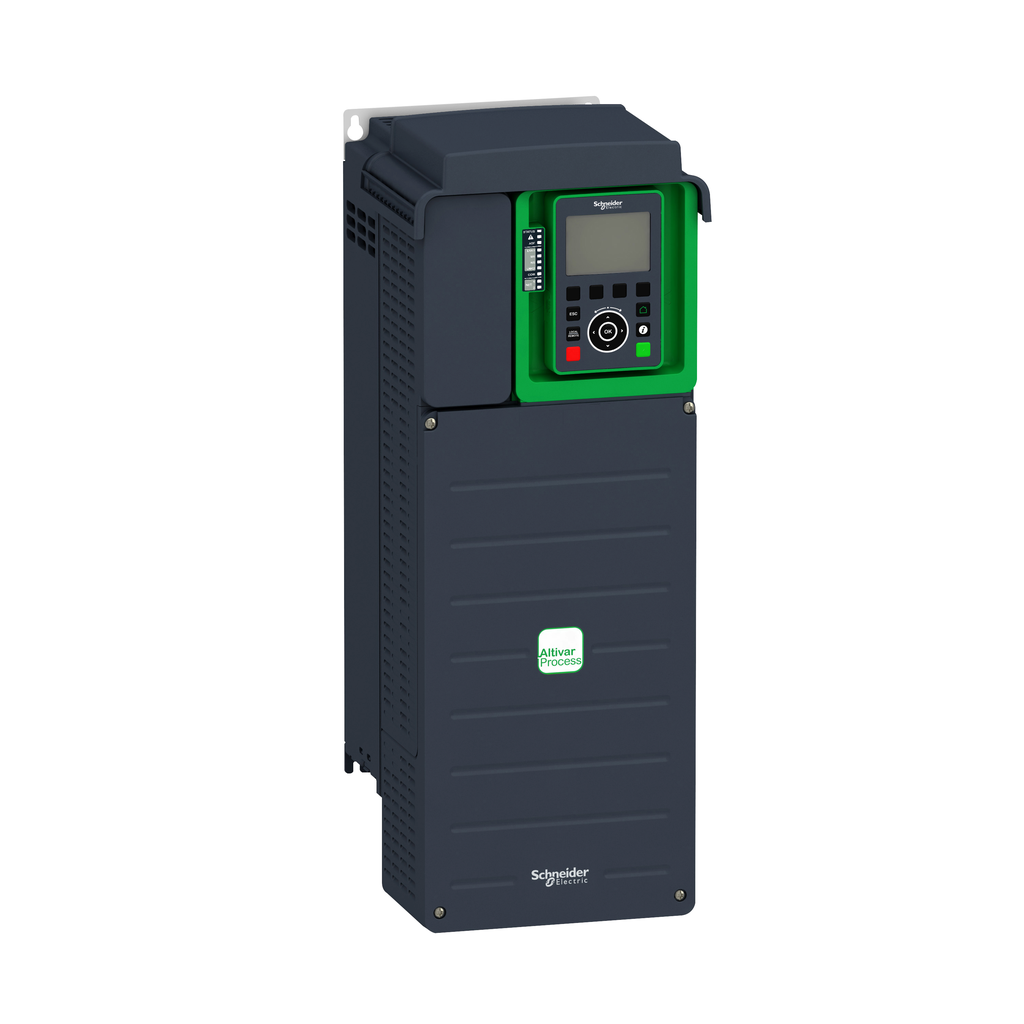

Schneider Electric ATV930D18N4 variable speed drive 18.5kW 400 to 480V

Product Description

This Schneider Electric ATV930D18N4 variable speed drive is capable of powering 3-phase synchronous and asynchronous motors. It supports motors rated up to eighteen point five kilowatts or twenty-five horsepower with slight overload capability of up to one hundred twenty percent. For applications needing significant overload, it can support motors rated up to fifteen kilowatts or twenty horsepower with a maximum overload of one hundred fifty percent. This drive operates within a supply voltage range of three hundred eighty volts to four hundred eighty volts AC.

• Compatible with industrial processes such as oil and gas, mining, and water treatment.
• Advanced connectivity with EtherNet/IP and Modbus TCP for easy integration.
• Designed for vertical wall-mounting, with a ± ten-degree angle for optimal installation.

Product Highlights

Offers high performance with complete control over various motor applications, enhancing operational efficiency.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: India

Technical Specifications

• Model: ATV930D18N4
• Voltage Rating: 380V to 480V AC
• Power Rating: 18.5 kW / 25 hp
• Weight: 31.31 lb
• Dimensions: 9.25 in (width) x 23.5 in (depth) x 54.9 in (height)
• Number of Phases: 3 Phase
• Storage Temperature: -40 to 70 degrees Celsius
• Mounting Type: Wall-Mounted
