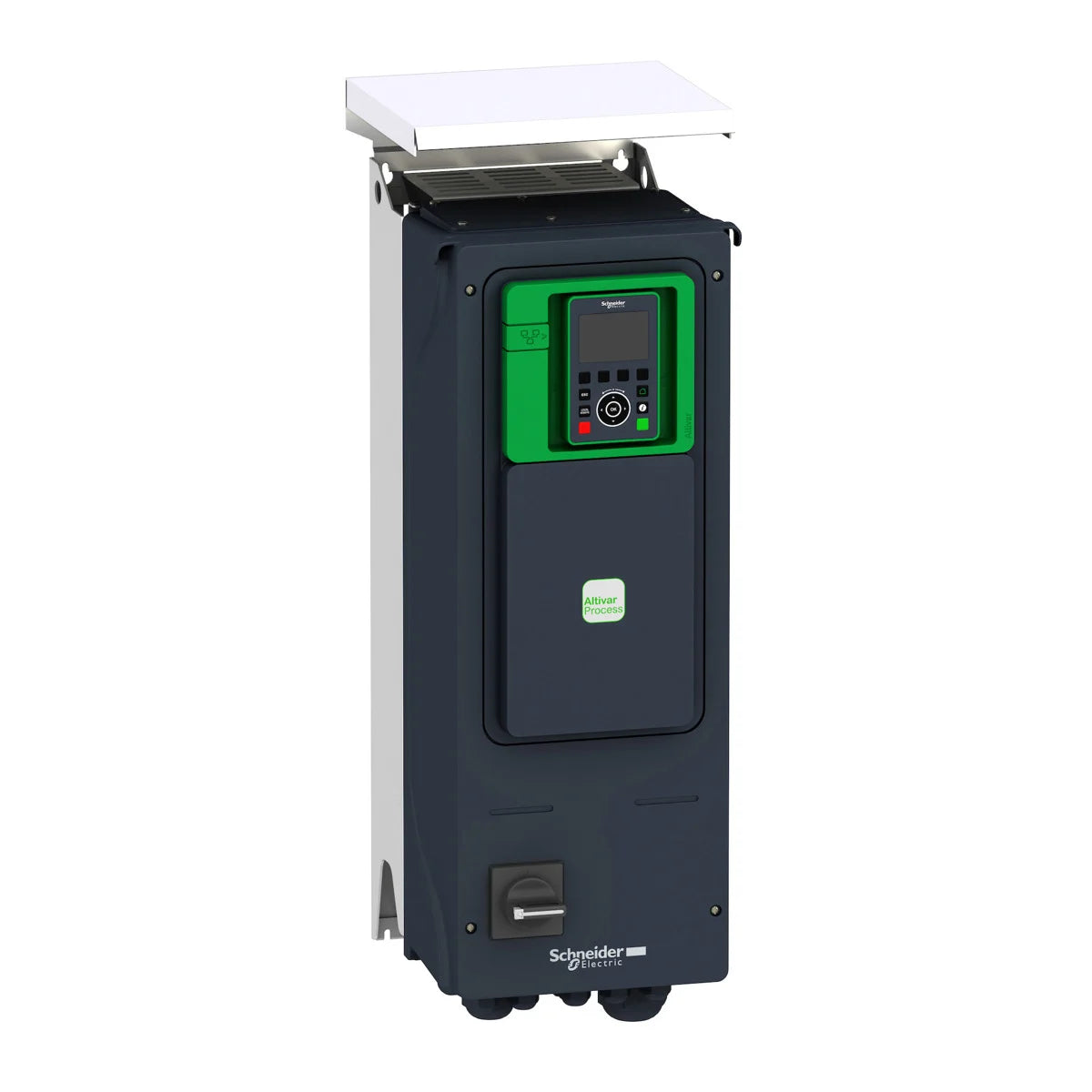

Schneider Electric ATV650U55N4EU variable speed drive, Altivar Process ATV600, 5.5kW, 400...480V, IP55

Product Description

This Schneider Electric ATV650U55N4EU variable speed drive is designed for 3-phase synchronous and asynchronous motors. It supports a supply voltage ranging from 380V to 480VAC and offers an IP55 rating, ensuring protection against dust and low-pressure water. The unit features an integrated EMC filter and is rated for environments that comply with categories C2 and C3. It is capable of energy savings of up to 30% when in standby mode, thanks to the Stop and Go feature. This drive is suitable for applications that require slight overloads of up to 120% for motors rated at 5.5kW/7.5HP and significant overloads of up to 150% for motors rated at 4kW/5HP.

• Integrated EMC filter for compliance with C2 and C3 categories.
• Energy savings of up to 30% in standby mode.
• Supports various industrial applications including water management and food processing.

Product Highlights

This variable speed drive excels in applications like mining, water/wastewater management, and food and beverage processing.

Product Information

Standard Information

• Catalog Number: ATV650U55N4EU
• Manufacturer: Schneider Electric

Technical Specifications

• Power Rating: 5.5kW
• Weight: 10.7kg
• Dimensions: 264mm (Width) x 300mm (Depth) x 678mm (Height)
• Certification: ATEX INERIS, CE, UL, CSA, BV, TUV
• Export URL: RoHS URL
• Country of Origin: China
