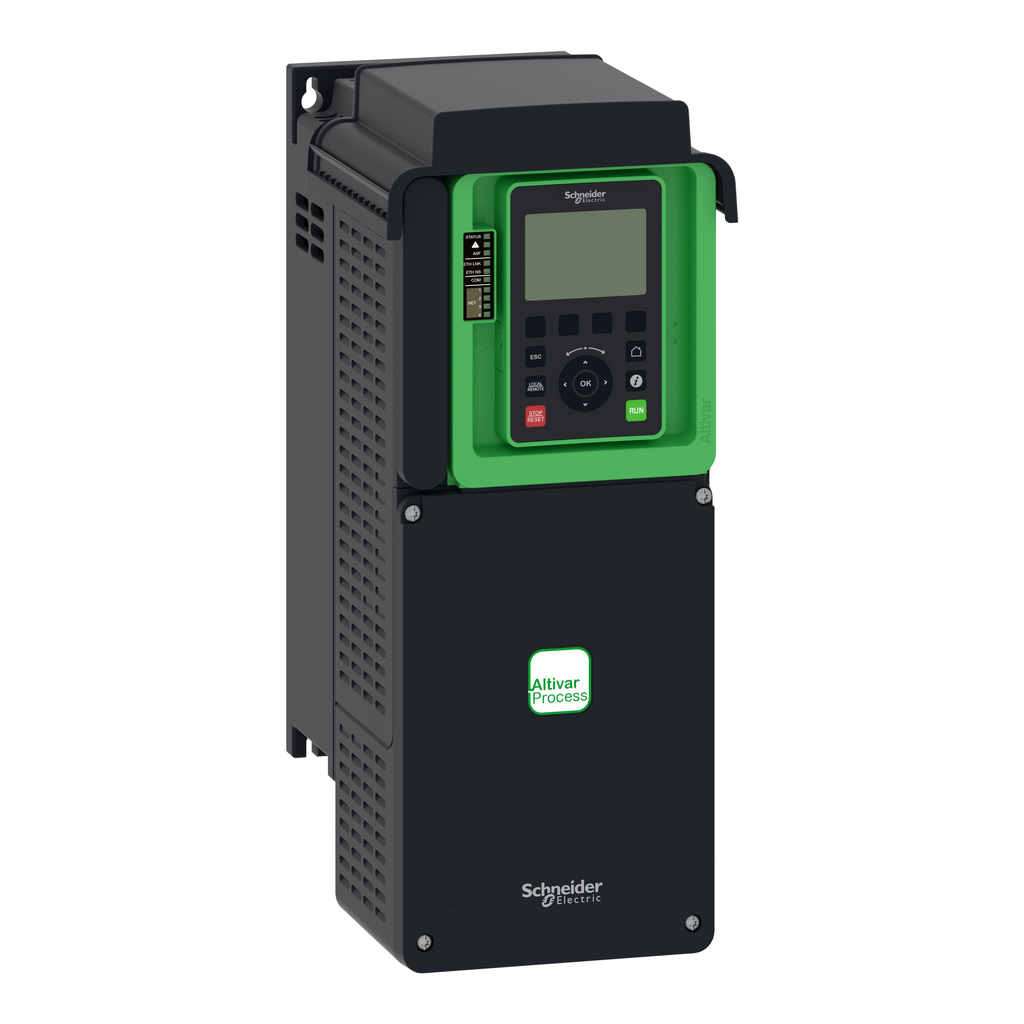

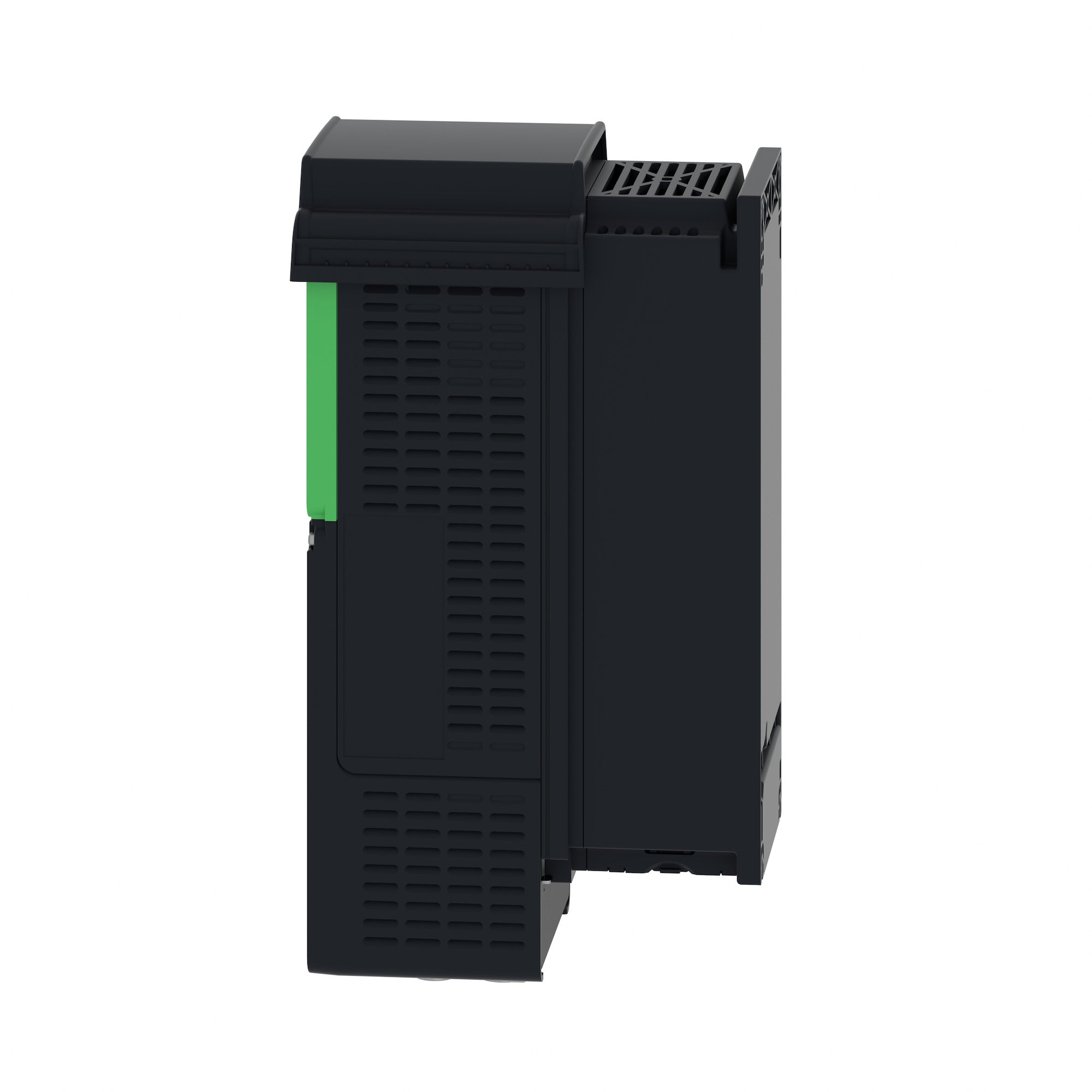

Schneider Electric ATV630U75N4 variable speed drive 7.5kW 10hp 380 to 480V

Product Description

The Schneider Electric ATV630U75N4 variable speed drive is designed for 3-phase motors, supporting both synchronous and asynchronous types. This drive operates with a voltage range of three hundred eighty to four hundred eighty volts AC and features three RJ45 communication ports including one Ethernet and two serial ports. Its innovative Stop and Go feature can lead to energy savings of up to thirty percent during standby.

• Rated for motors up to 7.5kW (10hp) with slight overload
• Suitable for significant overload applications up to 5.5kW (7.5hp)
• Dimensions: 171mm wide, 409mm high, 233mm deep

Product Highlights

This drive is ideal for fluid management and can be utilized in water, wastewater, mining, and food processing applications. It supports flexible mounting options and has accessories available for enhanced functionality.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: ATV630U75N4

Technical Specifications

• Power Rating: 7.5kW / 10hp
• Voltage Range: 380V to 480V AC
• Weight: 7.7kg
• Width: 171mm
• Height: 409mm
• Depth: 233mm
• Compliance Standards: EN/IEC 61800-3, UL 508C
• Country of Origin: Indonesia
