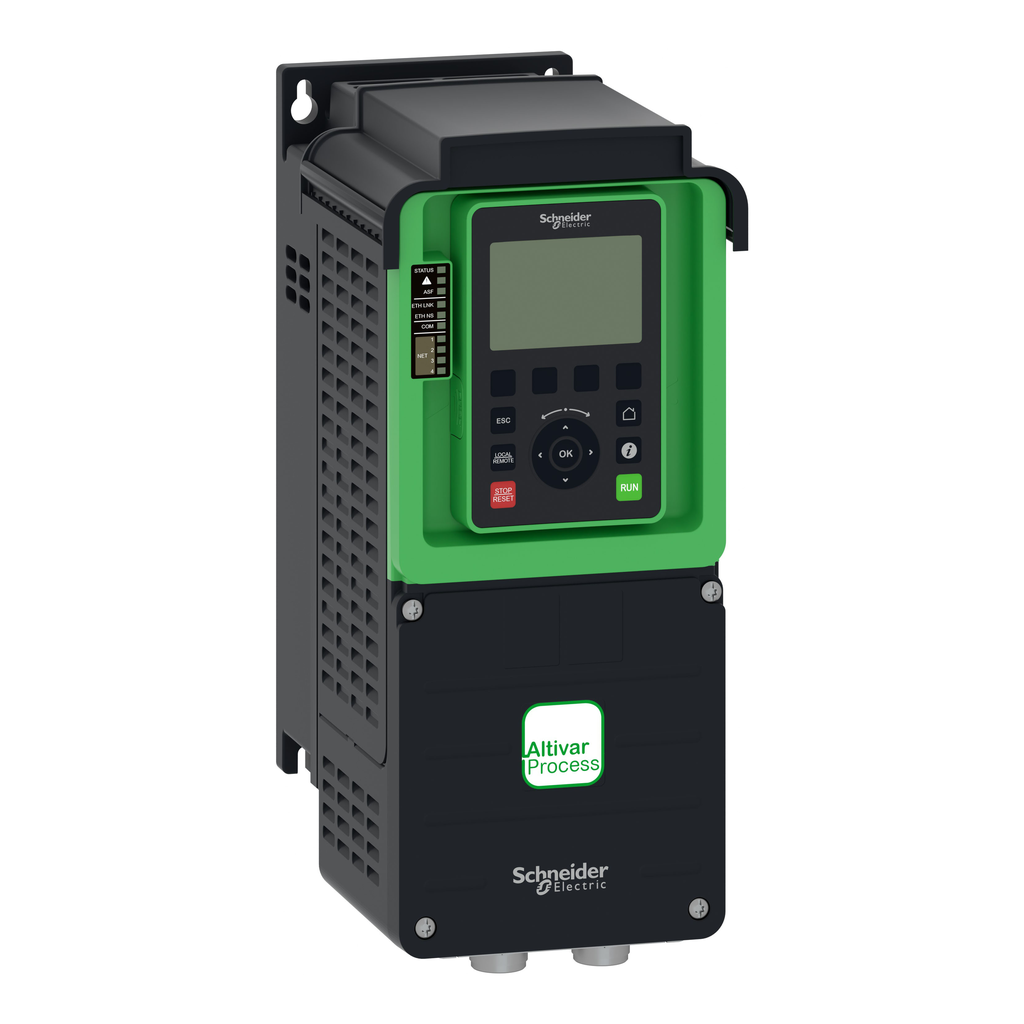

Schneider Electric ATV630U55N4 SQD Variable Speed Drive 5.5kW 7.5hp 380 to 480V

Product Description

Schneider Electric ATV630U55N4 is a variable speed drive designed for powering 3-phase synchronous and asynchronous motors. It supports a voltage range of three hundred eighty to four hundred eighty volts AC. This unit integrates three RJ45 communication ports and one Ethernet port along with two serial ports. The drive facilitates energy savings of up to thirty percent during standby mode through its Stop and Go operation. It is rated for motors with power capacities of up to five point five kilowatts or seven point five horsepower, handling slight overloads up to one hundred twenty percent. For demanding applications, it can manage motors up to four kilowatts or five horsepower, accommodating significant overloads of one hundred fifty percent.

• Energy-saving design with Stop and Go functionality
• Wall-mounted installation with a vertical orientation
• Integrated communication ports for versatile connectivity

Product Highlights

This drive supports a wide range of applications from fluid management to industrial processes, ensuring high performance and energy efficiency.

Product Information

Standard Information

• Brand: Schneider Electric
• Model Number: ATV630U55N4

Technical Specifications

• Dimensions: 144 mm width, 350 mm height, 203 mm depth
• Weight: 4.7 kg
• Operating Voltage: 380V to 480V AC
• Input Phase: 3 Phase
• Mounting Type: Wall-Mounted
• Certifications: ATEX, CSA, UL, IEC Standards
• Country of Origin: United States
