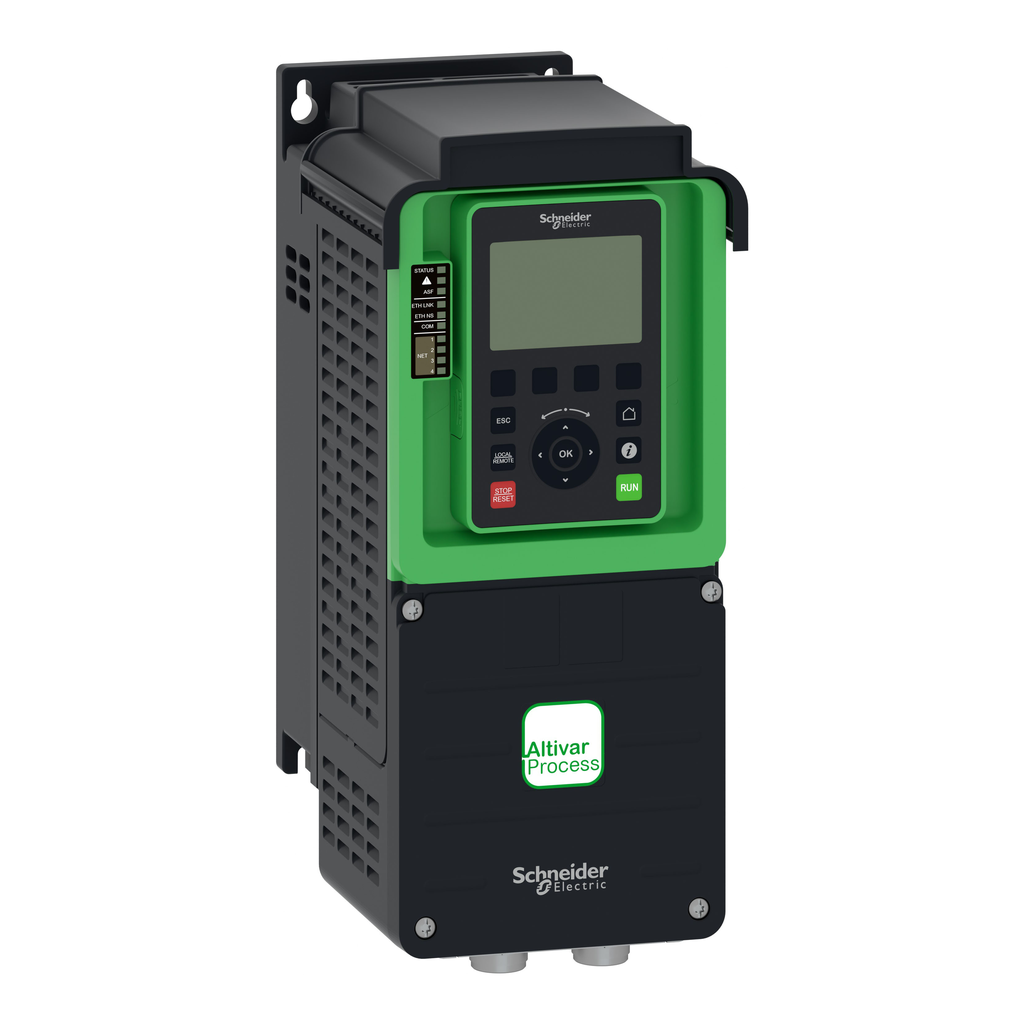

Schneider Electric ATV630U40N4 variable speed drive 4kW 5hp 380 to 480V

Product Description

The Schneider Electric ATV630U40N4 is a variable speed drive designed for feeding three-phase synchronous and asynchronous motors. It operates within a rated supply voltage range of three hundred eighty to four hundred eighty volts AC. This drive includes three built-in RJ45 communication ports as standard: one Ethernet port and two serial ports. It is equipped with energy-saving features that can reduce power consumption by up to thirty percent when in standby mode through Stop and Go operation without added costs.

• Suitable for motors with power ratings up to four kilowatts / five horsepower.
• Designed for applications that require slight overload capability (up to one hundred twenty percent).
• Ideal for motors up to three kilowatts / four horsepower in applications that need significant overload (up to one hundred fifty percent).

Product Highlights

This drive is suitable for use in demanding environments such as water and wastewater management, mining, oil and gas, and food and beverage industries. Additional accessories such as a fan kit and graphic display terminal, along with options like I/O expansion modules, are available based on the drive rating. It is intended for vertical mounting with an allowance of ten degrees.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: ATV630U40N4
• Power Rating: Up to 4kW / 5hp
• Input Voltage: 380V to 480V AC
• Weight: 4.6 kg
• Dimensions: 144 mm wide, 350 mm high, 203 mm deep
• Number of Phases: 3 Phase
• Mounting Type: Wall-Mounted
• Country of Origin: Indonesia
