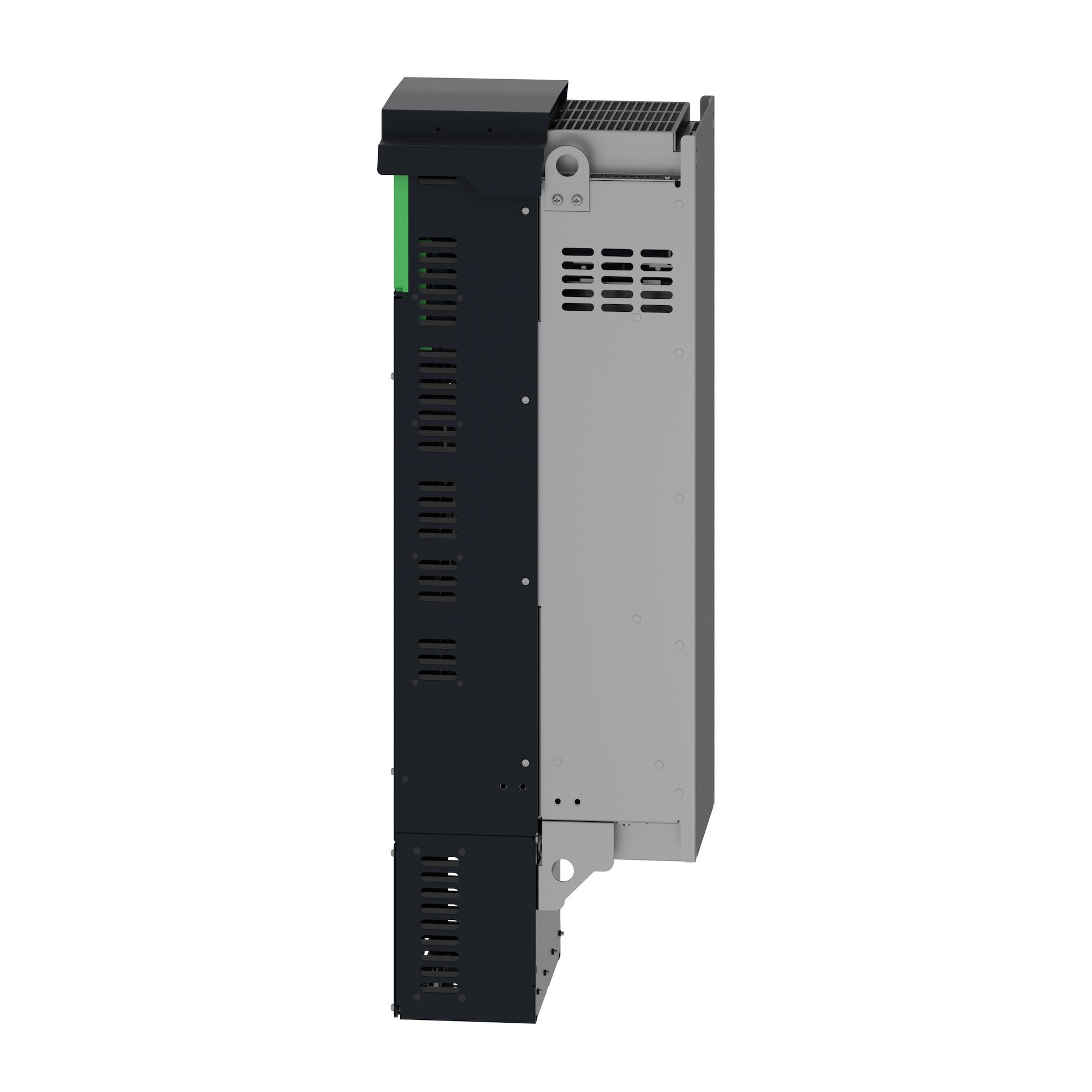

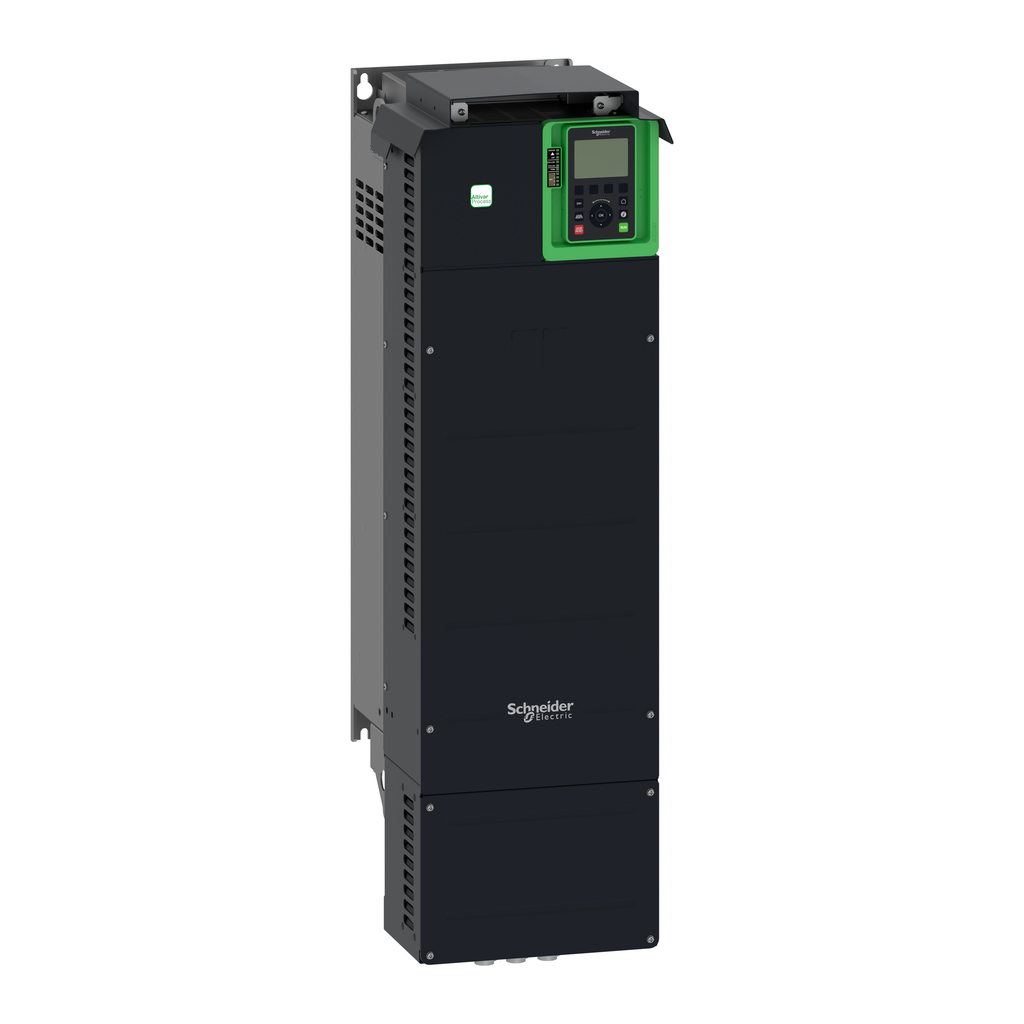

Schneider Electric ATV630D75N4 variable speed drive 75kW 100hp 380 to 480V

Product Description

This Schneider Electric ATV630D75N4 variable speed drive is capable of powering three-phase synchronous and asynchronous motors. It includes three built-in RJ45 communication ports, one Ethernet port, and two serial ports. The drive operates at supply voltages between three hundred eighty volts and four hundred eighty volts AC. Energy savings of up to thirty percent can be achieved during standby operation through its Stop and Go feature that incurs no additional costs.

This device is suitable for motors with a power rating of up to seventy-five kilowatts or one hundred horsepower for applications involving slight overload (up to one hundred twenty percent). For applications requiring significant overload, it supports motors rated up to fifty-five kilowatts or seventy-five horsepower (up to one hundred fifty percent). The unit weighs fifty-eight kilograms and has dimensions of two hundred ninety millimeters wide, nine hundred twenty-two millimeters high, and three hundred twenty-three millimeters deep.

Suitable for various applications, this drive is particularly effective in water management, mining, and processing industries, as well as food and beverage sectors. Various accessories, including fan kits and graphic display terminals, and options like I/O expansion modules and communication modules are also available. The drive is designed for vertical wall mounting with a tolerance of plus or minus ten degrees.

• Energy-efficient design with up to 30% savings.
• Modular and flexible with extensive application compatibility.
• Advanced communication features for easy integration.

Product Highlights

Suitable for diverse industrial applications, the ATV630D75N4 enhances energy efficiency while managing operational costs.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: ATV630D75N4
• Operating Voltage: 380V to 480V AC
• Input Phases: 3 Phase
• Power Rating: 75kW / 100hp
• Weight: 58 kg
• Dimensions: 290 mm (Width) x 922 mm (Height) x 323 mm (Depth)
• Country of Origin: India
• Certifications: ATEX, CSA, UL
